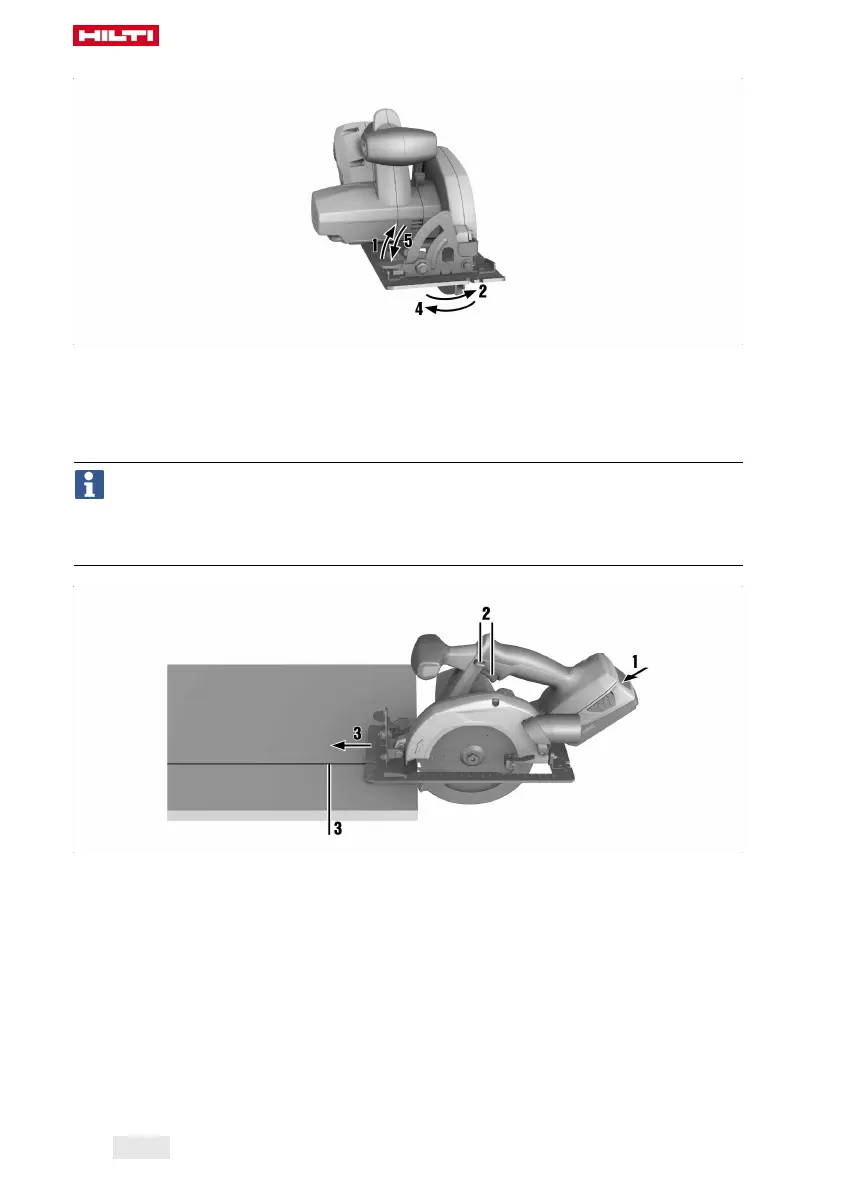

5.1.7 Setting the cutting angle
1. Pull the battery out of the product to the rear.
2. Release the cutting angle adjustment clamping lever.
3. Pivot the product into the desired position.
4. Tighten the cutting angle adjustment clamping lever.
5.1.8 Sawing along a line
Secure the workpiece to prevent movement.
Position the workpiece so that the saw blade is free to rotate beneath it.
Check to ensure that the on/off switch on the product is in the “off” position.
Position the forward section of the saw’s base plate on the workpiece but do not bring the blade into
contact with the workpiece.
1. Fit the battery into the product.
2. While pressing the safety lock, switch the product on by pressing the on/off button.
3. Guide the product along the cutting line on the workpiece at a suitable speed.
Printed: 24.05.2019 | Doc-Nr: PUB / 5292954 / 000 / 01

Hilti SCW 22-A Specifications

General

Blade diameter	165 mm
Idle speed (max)	4000 RPM
Cutting depth (45º)	42 mm
Cutting depth (90º)	57 mm
Sound pressure level	93 dB
Vibration level (wood cutting)	1.2 m/s²
Product color	Black, Red
Country of origin	Germany
Dust extraction port	Yes
Power source	Battery
Diamond disc	-
Battery included	No
Quantity per shipping (inner) case	1 pc(s)

Weight and Dimensions

Package depth	898 mm
Package width	5400 mm
Package height	2000 mm
Package weight	1345 g
