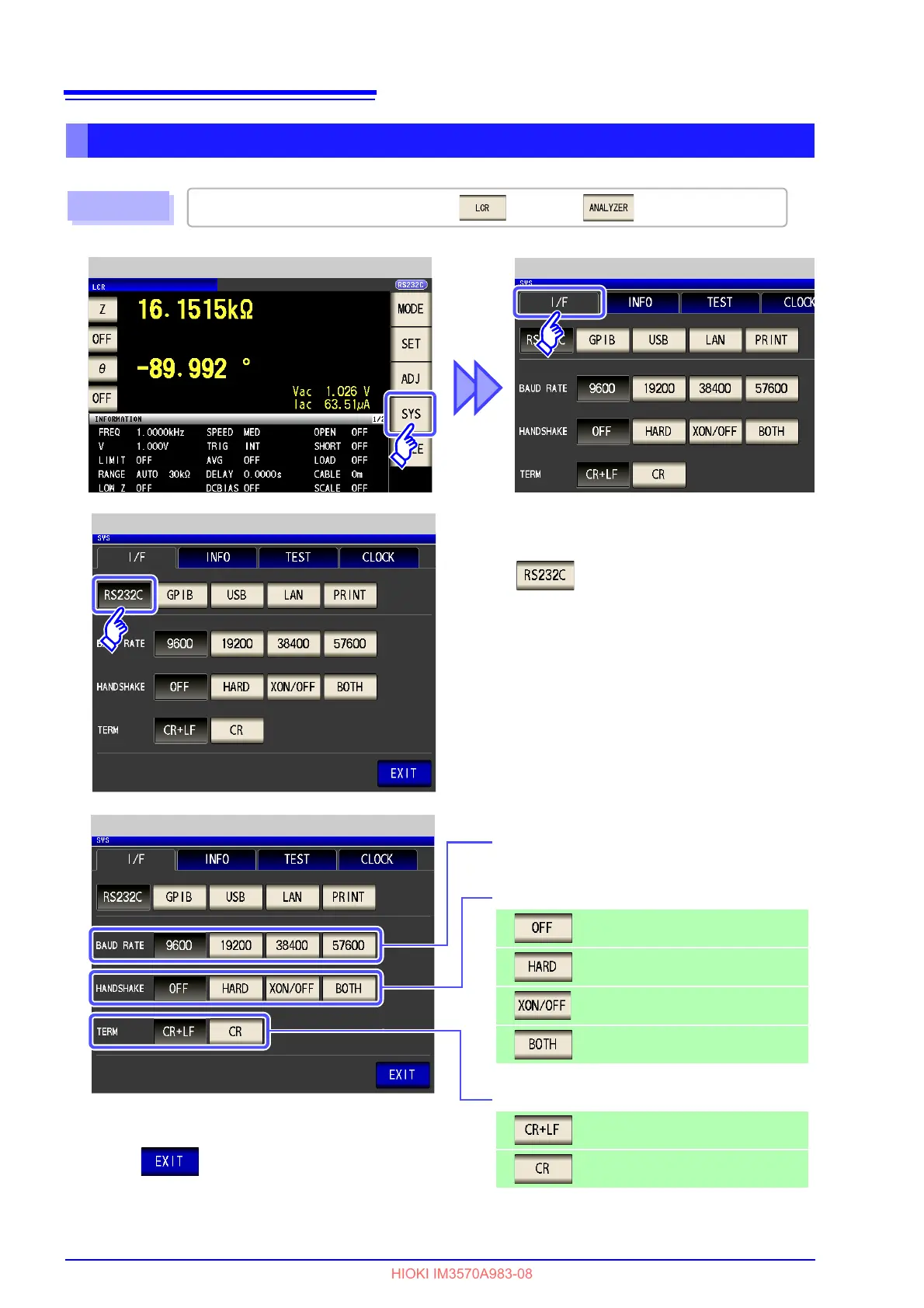

2.2 RS-232C Connection and Settings
8
Setting RS-232C
Procedure
LCR Measurement Screen
1
Interface Settings
You can configure the sett
in
g from any of
mode and
mode (only IM3570).
Press .
2
RS-232C Settings
3
Press
to confirm the setting.
4
RS-232C Settings
Select the terminator setting.
CR+LF
CR
Select the baud rate setting.
Select the handshake
setting.
No flow control
Hardware (RTS
/CTS
control)
Software (XON/XOFF control)
Hardware + software
HIOKI
IM3570A983-08
11
13
Table of Contents
default chapter
3
Table of Contents
3
Introduction
5
Safety Information
5
Chapter 1 Specifications
7
RS-232C Specifications
7
GP-IB Specifications
8
USB Specifications
8
LAN Specifications
8
Chapter 2 Model IM3570/ IM3536 Connection and Setting
9
Overview of Communication
9
RS-232C Connection and Settings
12
GP-IB Connection and Settings
13
USB Settings and Connection
15
Setting USB
15
Connecting the USB Cable
16
LAN Settings and Connection
17
LAN Settings
17
LAN Settings
18
Connecting a LAN Cable
22
Remote Mode
23
Chapter 3 Model IM3523/ IM3523A Connection and Setting
25
Overview of Communication
25
USB Settings and Connection
27
Connecting the USB Cable
28
GP-IB Connection and Settings (IM3523 Only, When Connected to the Z3000)
29
Connecting the GP-IB Cable
29
RS-232C Connection and Settings (IM3523 Only, When Connected to the Z3001)
31
Connecting the RS-232C Cable
31
Setting RS-232C
32
LAN Settings and Connection (IM3523 Needs to be Connected to the Z3002)
34
LAN Settings
34
Connecting a LAN Cable
37
Remote Mode
38
Chapter 4 Model IM3533/ IM3533-01/ IM3590 Connection and Setting
39
Overview of Communication
39
USB Settings and Connection
41
USB Settings and Connection
42
GP-IB Connection and Settings (When Connected to the Z3000)
43
Connecting the GP-IB Cable
43
Setting GP-IB
43
RS-232C Connection and Settings (When Connected to the Z3001)
45
Connecting the RS-232C Cable
45
Setting RS-232C
46
LAN Settings and Connection (When Connected to the Z3002)
47
LAN Settings
47
Connecting a LAN Cable
52
Remote Mode
53
Appendix
71
Appendix 1 Checking the USB Virtual COM Port
