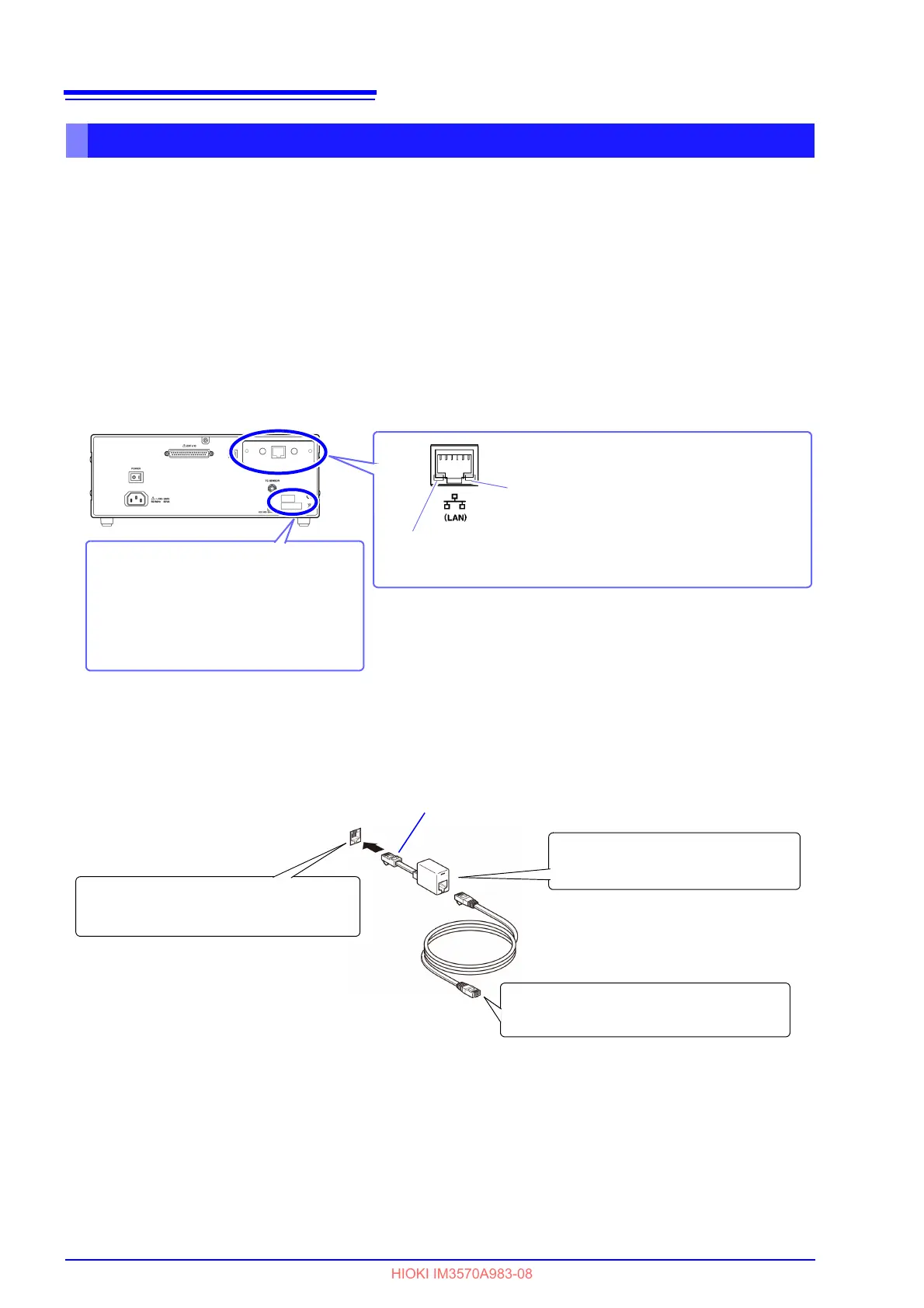

4.5 LAN Settings and Connection (when connected to the Z3002)
48
Use a LAN cable to connect the instrument and computer.
Required items:
When connecting the instrument to an existing network (prepare any of the following):
• Straight-through Cat 5, 100BASE-TX-compliant Ethernet cable (up to 100 m, commercially available).
For 10BASE communication, a 10BASE-T-compliant cable may also be used.
• Hioki 9642 LAN Cable (option)
(A cross adapter cannot be used.)
When connecting one instrument to a single computer (prepare one of the following):
• 100BASE-TX-compliant cross-over cable (up to 100 m)
• 100BASE-TX-compliant straight-through cable with cross-over adapter (up to 100 m)
• Hioki 9642 LAN Cable (option)
When connecting the instrument to a single computer (connect the instrument to the computer)
Connecting a LAN Cable
On: Performing communication with 100BASE.
Off: Performing communication with 10BASE.
Flashes when data is being exchanged.
SPEED LED
RX/TX LED
The MAC address of the LAN is displayed
above the serial number.
You can also check it on the instrument
screen.
See: “Checking the Version of the Instru-
ment” in the instruction manual.
LAN interface
Crossover adapter
Connecting with the 9642 LAN Cable and crossover adapter (supplied with the 9642)
1
Connect the LAN Cable to the
crossover adapter.
Connect the crossover adapter to
the LAN interface on the instrument.
2
Connect the LAN Cable to the
100BASE-TX connector on the PC.
3
To Next Page
