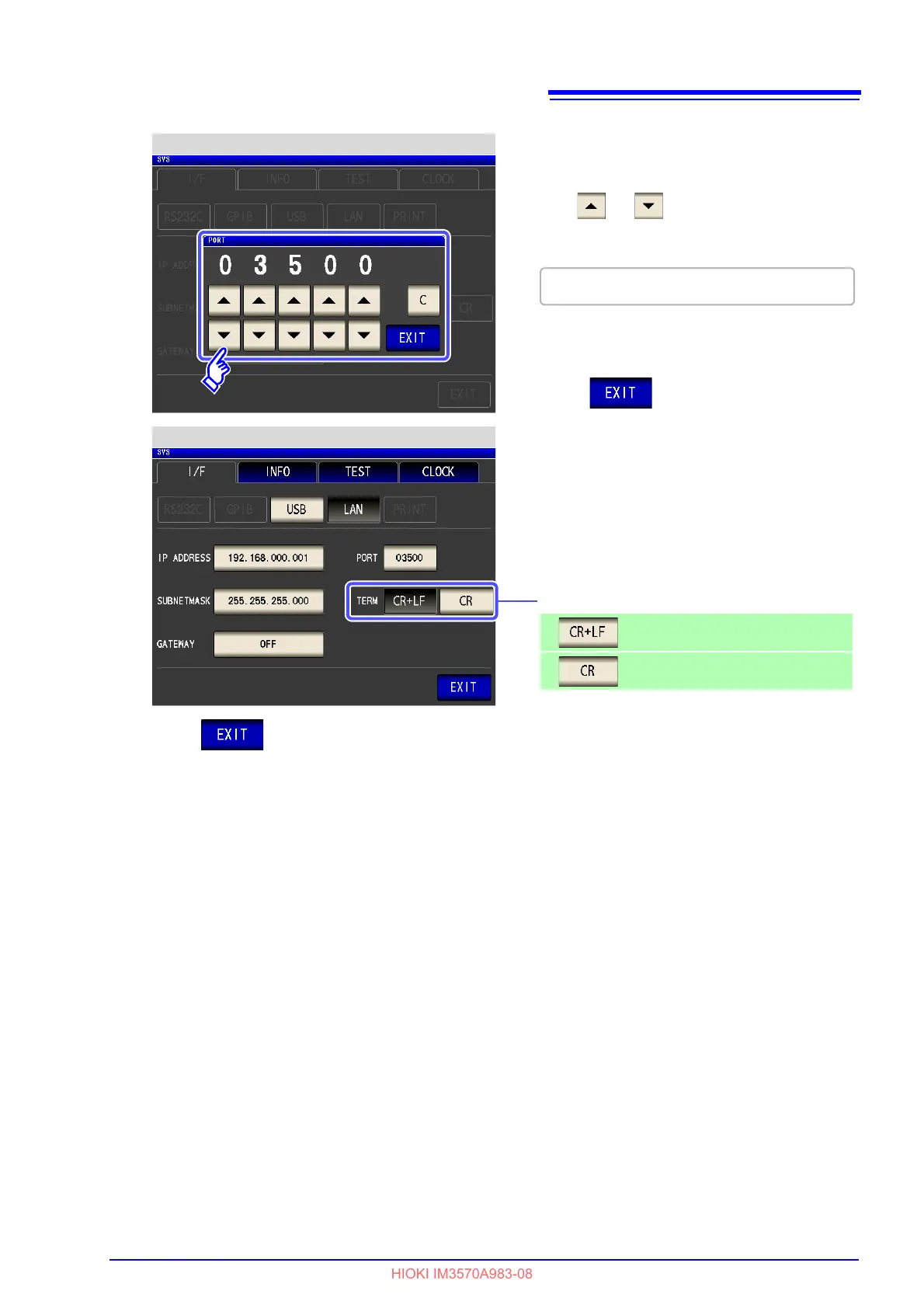

4.5 LAN Settings a
nd Connection (when connected to the Z3002)
47
Port number Settings
10
Use
or
to set the port n
umber to
use for communication commands.
Press
to confirm the setting.
Settable range : 1024 to 65535
LAN Settings
11
Select the term
inator sett
ing.
CR+LF
CR
Press
to confirm the setting.
12
HIOKI
IM3570A983-08
50
52
