3.4 RS-232C Connection and Settings (I
M3523 only, when connected to the Z3001)
29
5
Select the h
andshake sett
ing.
6
Select.
1

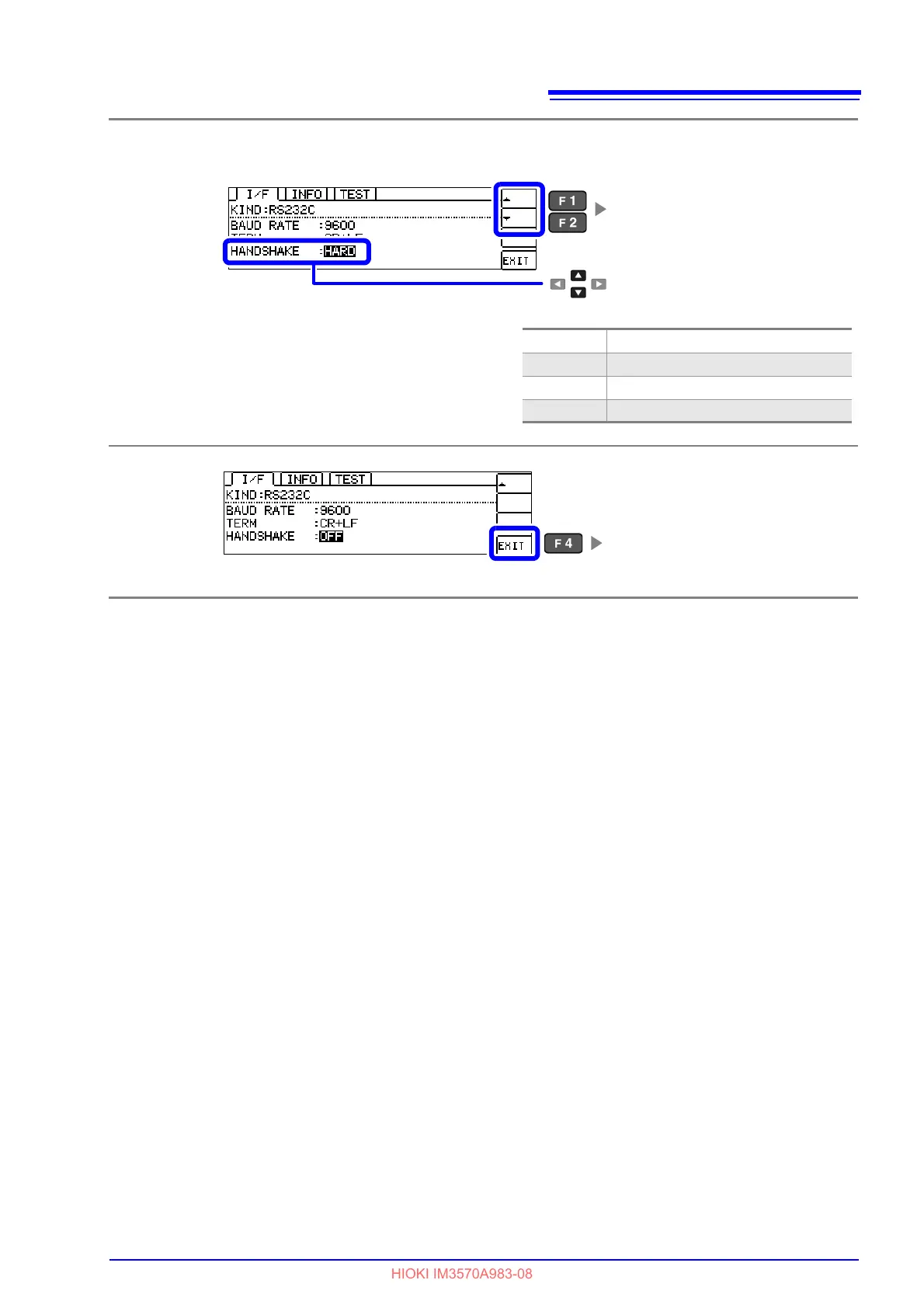

Select the handshake setting.
2
OFF
No flow control
HARD
Hardware (RTS/CTS control)
XON/OFF
Software (XON/XOFF control)
BOTH
Hardware + software
Y
ou will return to the measure-
ment screen.
HIOKI
IM3570A983-08
32
34
