9.3 Out-of-band signaling
177
9.3.3 Monitoring the Device Status with a signal
contact
The “Device status” option enables you, like in the function monitoring, to
monitor the device status (see
“Monitoring Device Status” on page 171) via
the signal contact.

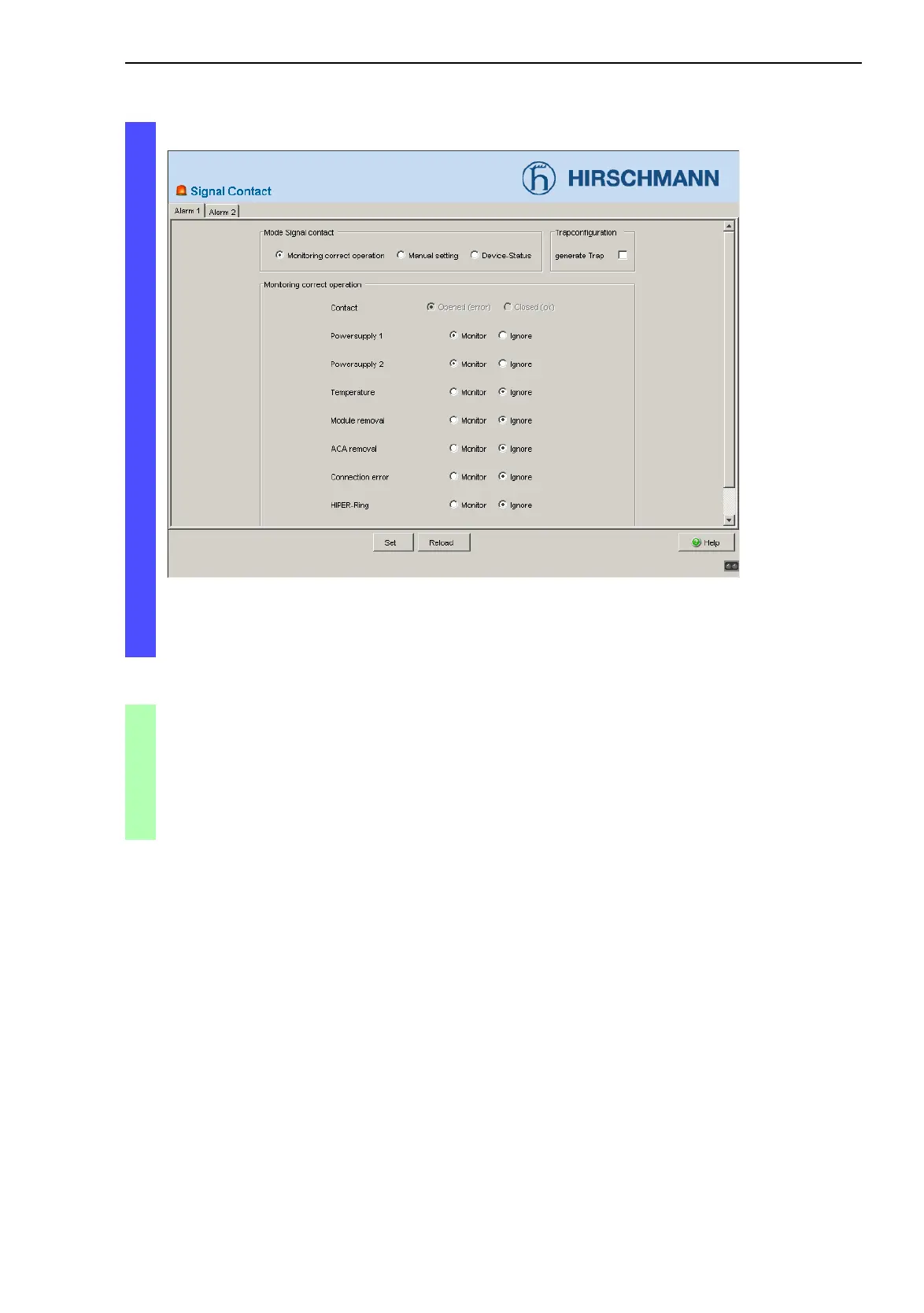

Fig. 54: Signal contact dialog
Display signal contact status
exit
show signal-contact 1
Switch to the privileged EXEC mode..
Displays the status of the function monitoring
and the setting for the status determination.
