Setting up the configuration

Basic - L3P

Release

3.1

06/07

A.1

Setting up DHCP/BOOTP Server

199

V Add a profile for each device type.

If devices of the same type have different configurations, then you add

profile for each configuration.

To complete the addition of the configuration profiles, click on OK.

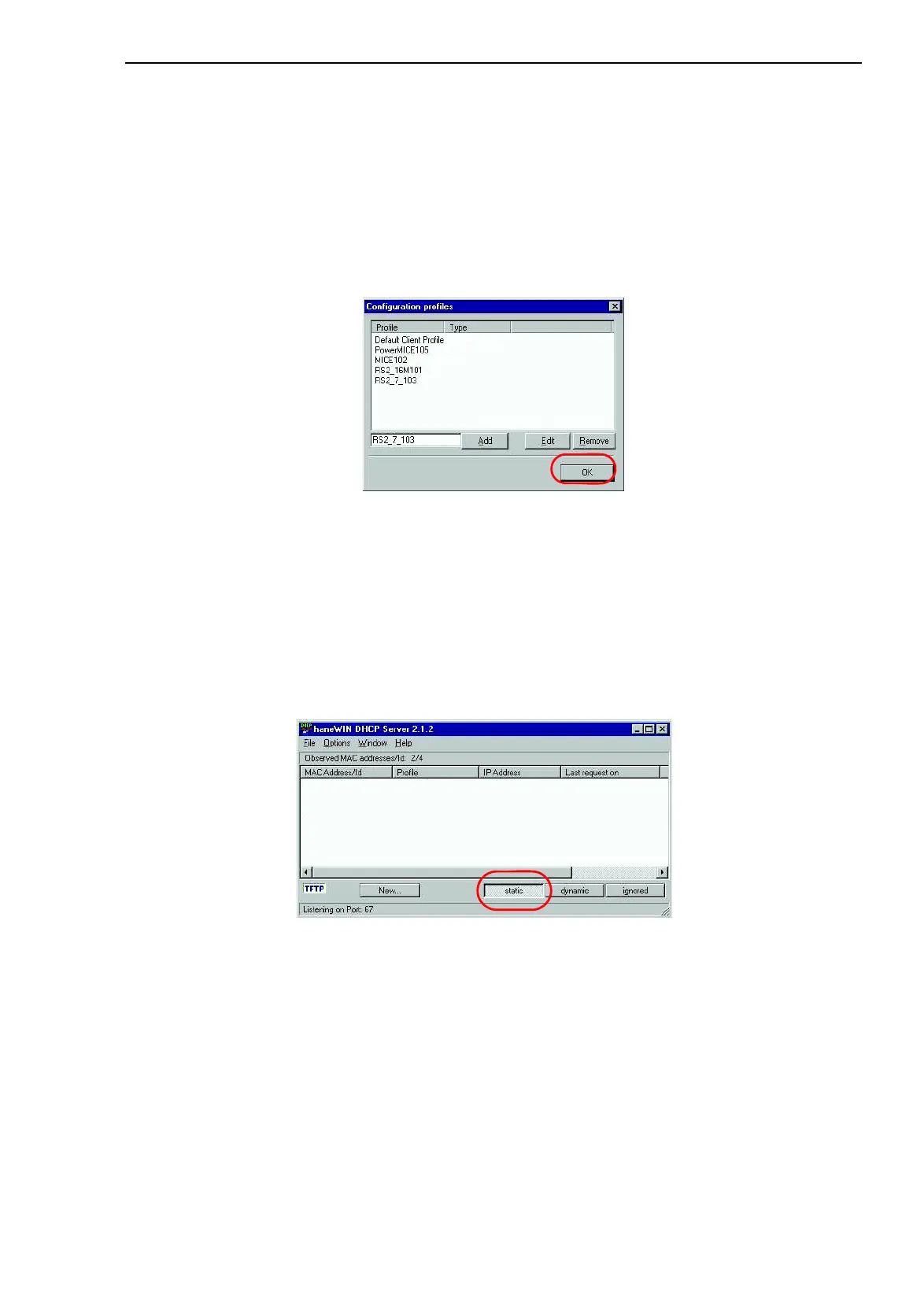

Fig. 67: Managing configuration profiles

V To enter the static addresses, click on Static in the main window.

Fig. 68: Static address input
