Protection from unauthorized access

6.1

Password for SNMP access

Basic - L3P

Release

3.1

06/07

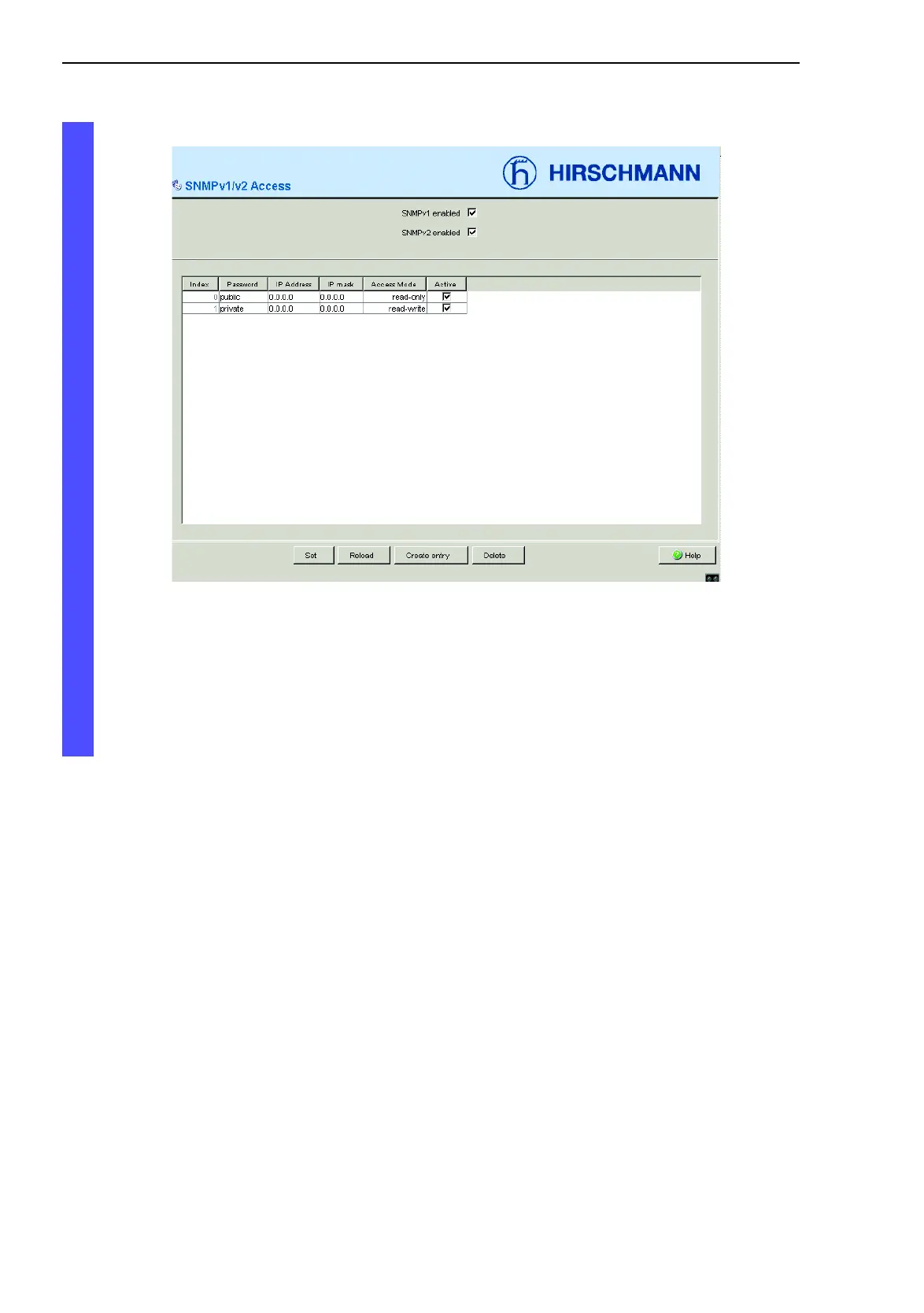

Fig. 22: Dialog SNMPv1/v2 access

V To create a new line in the table click "Create entry" .

V To delete an entry select the line in the table and click "Delete".
