Hirschmann RS20 Programming Manual

Rapid Spanning Tree
104
6.6 The Rapid Spanning Tree Protocol
Redundanz L2P
Release 5.0 04/09

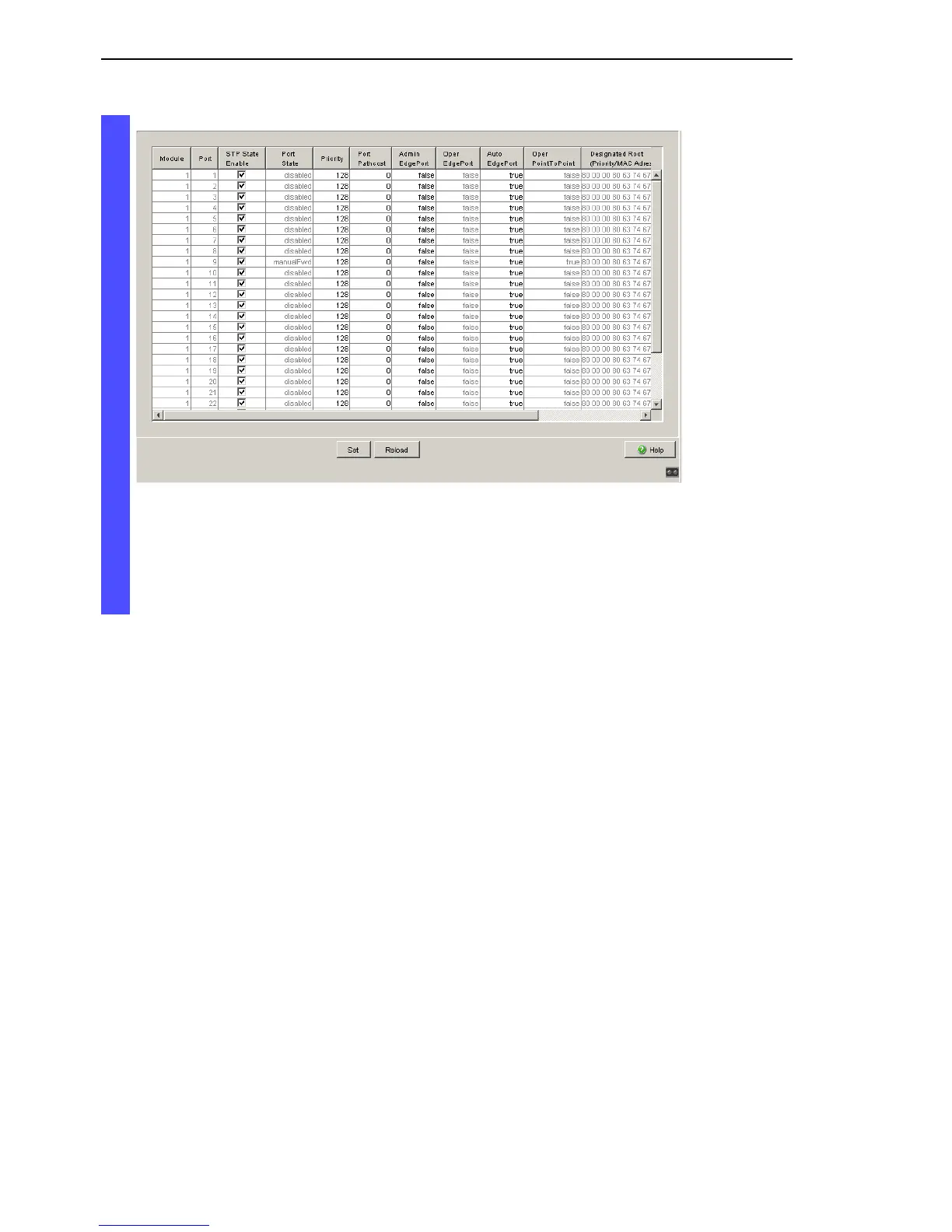

Figure 54: Configuring the RSTP port
Note: Deactivate the Spanning Tree Protocol for the ports connected to
a redundant ring, because the Spanning Tree and the
Ring Redundancy work with different reaction times.

Hirschmann RS20 Specifications

General

Mounting	DIN Rail
Operating Temperature	-40°C to +70°C
Protection Class	IP30
Switching Technology	Store-and-Forward
Product Type	Industrial Ethernet Switch
Port Details	10/100 Mbps Ethernet ports
Switching Capacity	3.2 Gbps
MAC Address Table	8k
Management	Web, SNMP
Redundancy	MRP
Ports	8 or 16
