Hirschmann RSPE30 User Manual

30
Installation RSPE30/32/35/37
Release 16 04/2019
This port supports:
 Autonegotiation
 Autopolarity
 Autocrossing (if autonegotiation is activated)
 1000 Mbit/s full duplex
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
 10 Mbit/s half-duplex mode, 10 Mbit/s full duplex mode
Delivery state: Autonegotiation activated
The port casing is electrically connected to the front panel.
The pin assignment corresponds to MDI-X.
 100/1000 Mbit/s F/O port
This port is an SFP slot.
The 100/1000 Mbit/s F/O port allows you to connect network components
according to the IEEE 802.3 100BASE-FX/1000BASE-SX/1000BASE-LX
standard.
This port supports:
 1000 Mbit/s full duplex
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
Delivery state:
 100 Mbit/s full duplex when using a Fast Ethernet SFP transceiver
 1000 Mbit/s full duplex when using a Gigabit Ethernet SFP transceiver
1.5.3 100 Mbit/s F/O port (optional)
This port is an SFP slot.
This option is available to you, if you use a RSPM media module comprising
F/O ports.
The 100 Mbit/s F/O port allows you to connect network components
according to the IEEE 802.3 100BASE-FX standard.
This port supports:
 100 Mbit/s half-duplex mode, 100 Mbit/s full duplex mode
Default setting: Full duplex
Pin Function
1BI_DB+
2BI_DB−
3BI_DA+
4 BI_DD+
5BI_DD−
6BI_DA−
7 BI_DC+
8BI_DC−

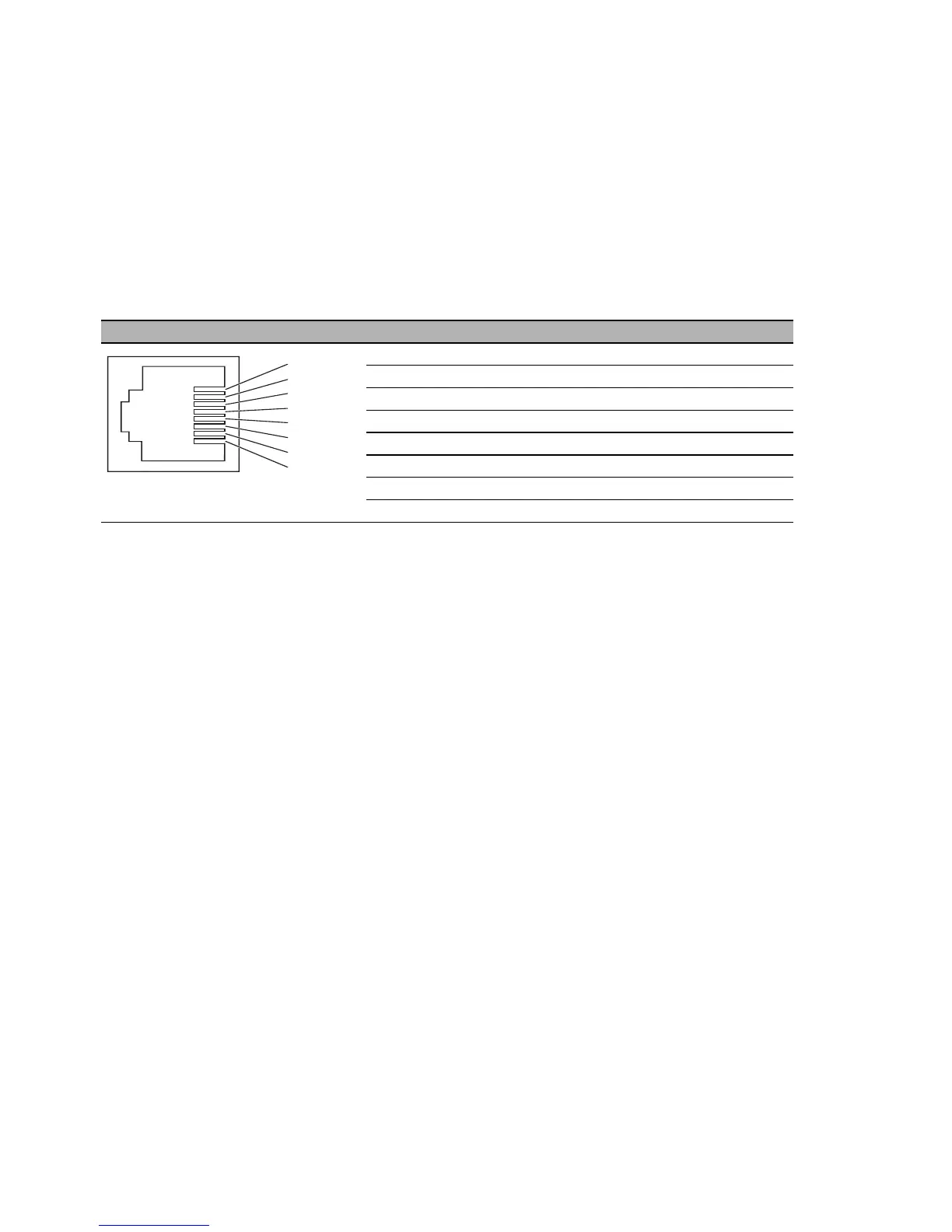

Table 8: Pin assignments of the 10/100/1000 Mbit/s twisted pair port in 1000 Mbit/s
mode, RJ45 socket, MDI-X mode
1
2
3
4
5
6
7
8
