Installation RSPE30/32/35/37
Release
16
04/2019
41
2.4.2 Grounding the device
The housing is grounded via the separate ground screw on the bottom left of
the front side of the device.
The device variants featuring supply voltage with characteristic value K9
and KK have a connection for protective grounding.
The device variants featuring supply voltage with characteristic value CC
and PP have a connection for functional grounding.
You will find information on the characteristic values here:
“Device name and product code” on page 21
Always ground the device via the grounding screw.
2.5 Installing an SFP transceiver (optional)
Prerequisites:
Exclusively use Hirschmann SFP transceivers.
See “Accessories” on page 69.

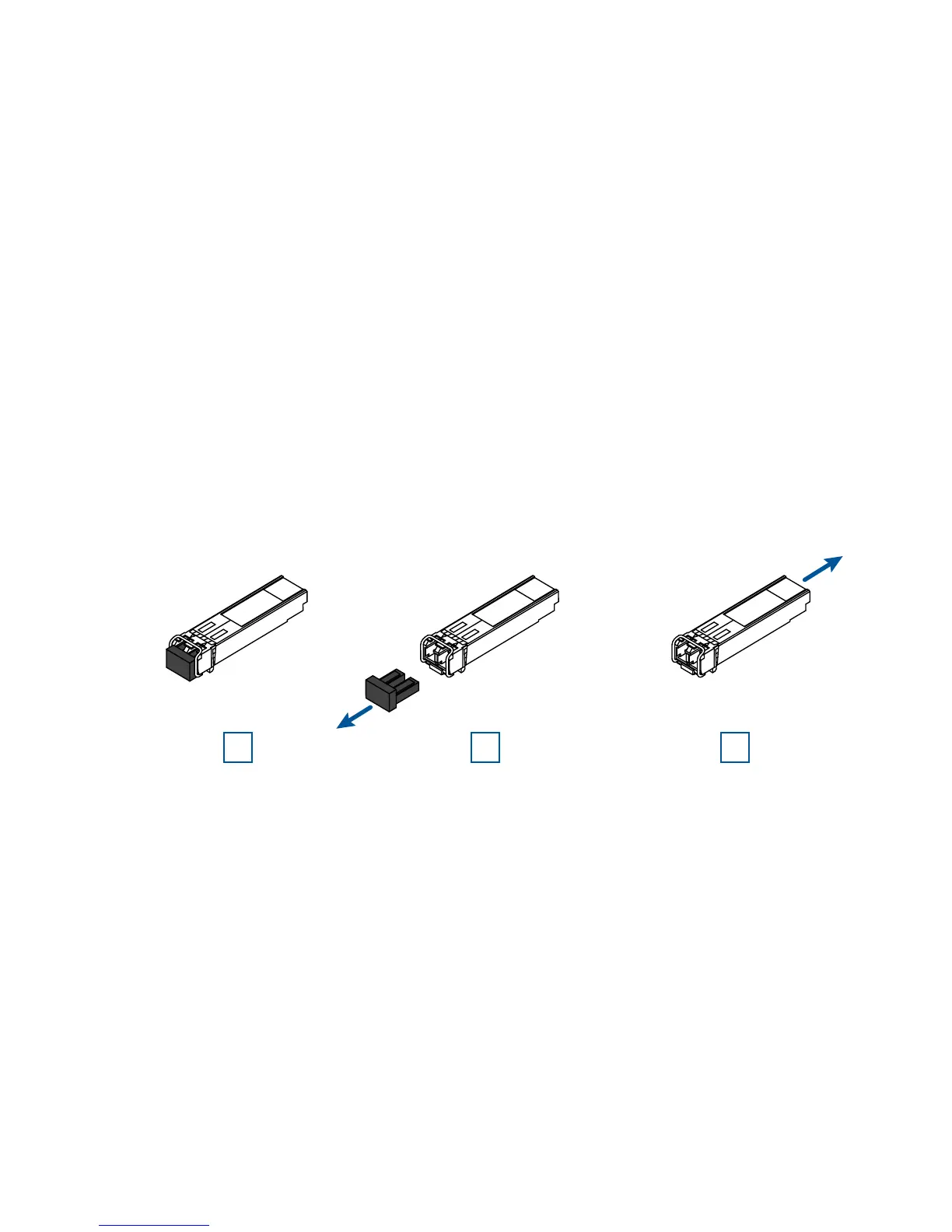

Figure 3: Installing SFP transceivers: Installation sequence
Proceed as follows:
Take the SFP transceiver out of the transport packaging (1).
Remove the protection cap from the SFP transceiver (2).
Push the SFP transceiver with the lock closed into the slot until it latches
in (3).
1
2
3
