Hirschmann RSPE30 User Manual

44
Installation RSPE30/32/35/37
Release 16 04/2019

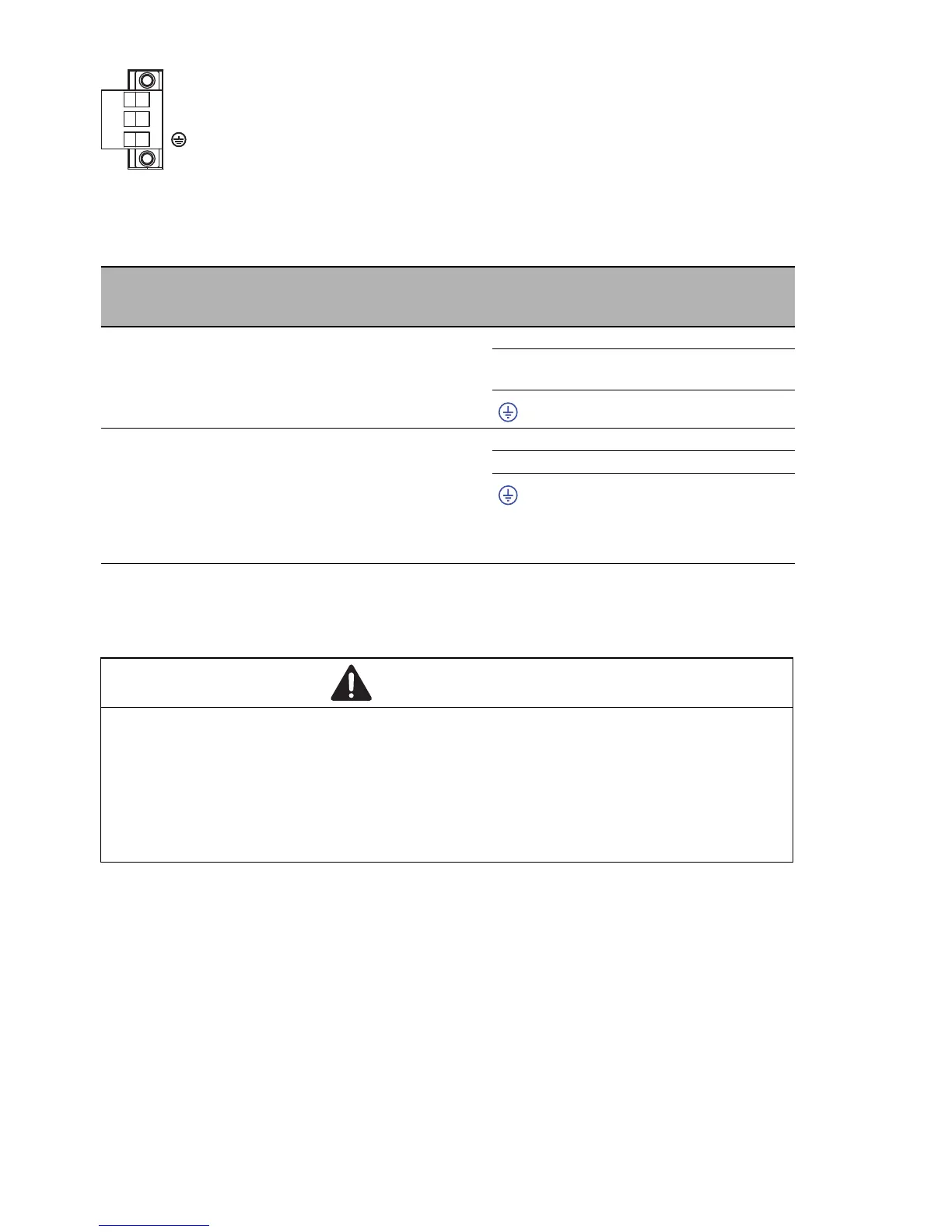

Figure 5: Supply voltage with the characteristic value KK: 3-pin terminal block with
screw locking
For every supply voltage to be connected, perform the following steps:
 Remove the terminal connector from the device.
 Connect the protective conductor with the clamp.
 Connect the wires according to the pin assignment on the device with the
clamps.
 Fasten the wires in the terminal block by tightening the terminal screws.
 You find the prescribed tightening torque in chapter:
“General technical data” on page 55
Type of the voltages
that can be
connected
Specification of the supply
voltage
Pin assignment
DC voltage Rated voltage range DC:
60 V DC ... 250 V DC
Voltage range DC incl.
maximum tolerances:
48 V DC ... 320 V DC
+/L Plus terminal of the supply voltage
-/N Minus terminal of the supply
voltage
Protective conductor
AC voltage Rated voltage range AC:
110 V AC ... 230 V AC,
50 Hz ... 60 Hz
Voltage range AC incl.
maximum tolerances:
88 V AC ... 265 V AC,
47 Hz ... 63 Hz
+/L Outer conductor
-/N Neutral conductor
Protective conductor
Table 12: Supply voltage with characteristic value KK: type and specification of the
supply voltage, pin assignment
WARNING
ELECTRIC SHOCK
Install this device solely in a switch cabinet or in an operating site with
restricted access, to which maintenance staff have exclusive access.
Failure to follow this instruction can result in death, serious injury, or
equipment damage.
N
L
