3.3 Placement and Mounting
Placement
A If your TV is placed on a table, you can place
the unit on the table directly in front of the
TV stand, centered with the TV screen.
B If your TV is attached to a wall, you can
mount the unit on the wall directly below the
TV screen.
3.4 Wall Mounting (if using option-B)
Note:
- Installation must be carried out by qualied
personnel only. Incorrect assembly can result in
severe personal injury and property damage (if
you intend to install this product yourself, you
must check for installations such as electrical
wiring and plumbing that may be buried inside
the wall). It is the installer’s responsibility to
verify that the wall will safely support the total
load of the unit and wall brackets.
- Additional tools (not included) are required for
the installation.
- Do not overtighten screws.
- Keep this instruction manual for future reference.
- Use an electronic stud nder to check the wall
type before drilling and mounting.
WARNING
• To prevent injury, this apparatus must be securely
attached to the oor/wall in accordance with the
installation instructions.
• Suggested wall mounting height: ≤ 1.5 meters.

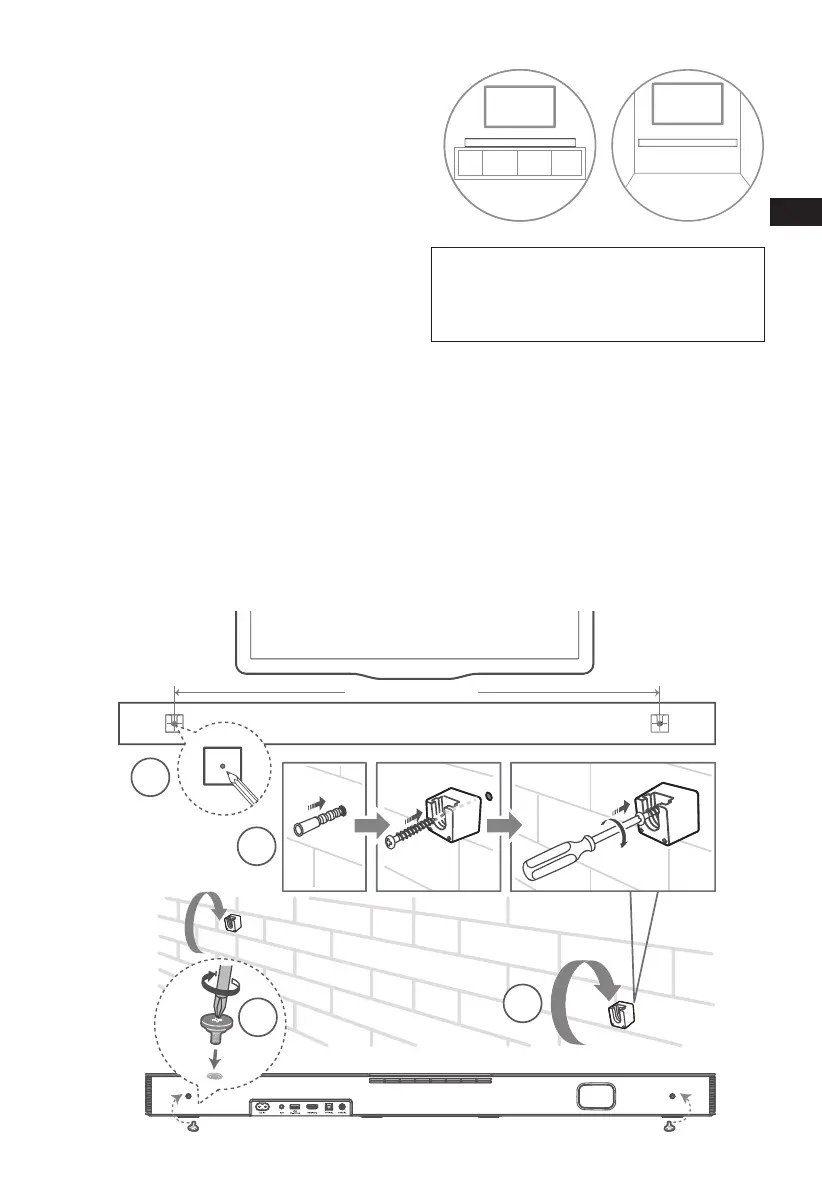

1. Drill 2 parallel holes (Ø 5.5-6 mm each
according to wall type) in the wall. The
distance between the holes should be
680mm/26.8“.
2. Firmly x 1 dowel into each hole in the wall if
necessary. Tighten the wall mount brackets on
the wall with screws and screwdriver (included).
Make sure that they are securely installed.
3. Install the wall mounting screws into the
back of the unit.
4. Lift the unit onto the wall mount brackets
and slot into place.
