5. Connections
5.1 Dolby Atmos®
Dolby Atmos® gives you immersive listening
experience by delivering sound in three
dimensional space, and all the richness, clarity,
and power of Dolby sound. For more information,
please visit dolby.com/technologies/dolby-atmos
5.2 DTS: X
DTS: X, the border sound is no longer constrained
by fixed-position speaker placement or specific
channel signals.
For using Dolby Atmos® / DTS: X
Dolby Atmos® / DTS: X is available in HDMI eARC
/ARC mode. For the details of the connection,
please refer to “ HDMI Connection HDMI eARC”.
1. To use Dolby Atmos® / DTS: X mode, Your
TV has to support Dolby Atmos® / DTS: X
or HDMI audio passthrough.
2. Make sure that “Bitstream“, ”RAW“ or ”No
Encoding“ is selected for bitstream in the
audio output of the connected external
device (e.g. Blu-ray DVD player, TV etc.).
3. While entering Dolby Atmos / DTS: X / Dolby
Digital / PCM format, the soundbar will show
DOLBY ATMOS / DTS: X / DOLBY AUDIO /
PCM AUDIO.
/ARC
12
-
5.3 Use the HDMI Socket
Some 4K HDR TVs require the HDMI input or picture
settings to be set for HDR content reception. For
further setup details on HDR display, please refer to
the instruction manual of your TV.

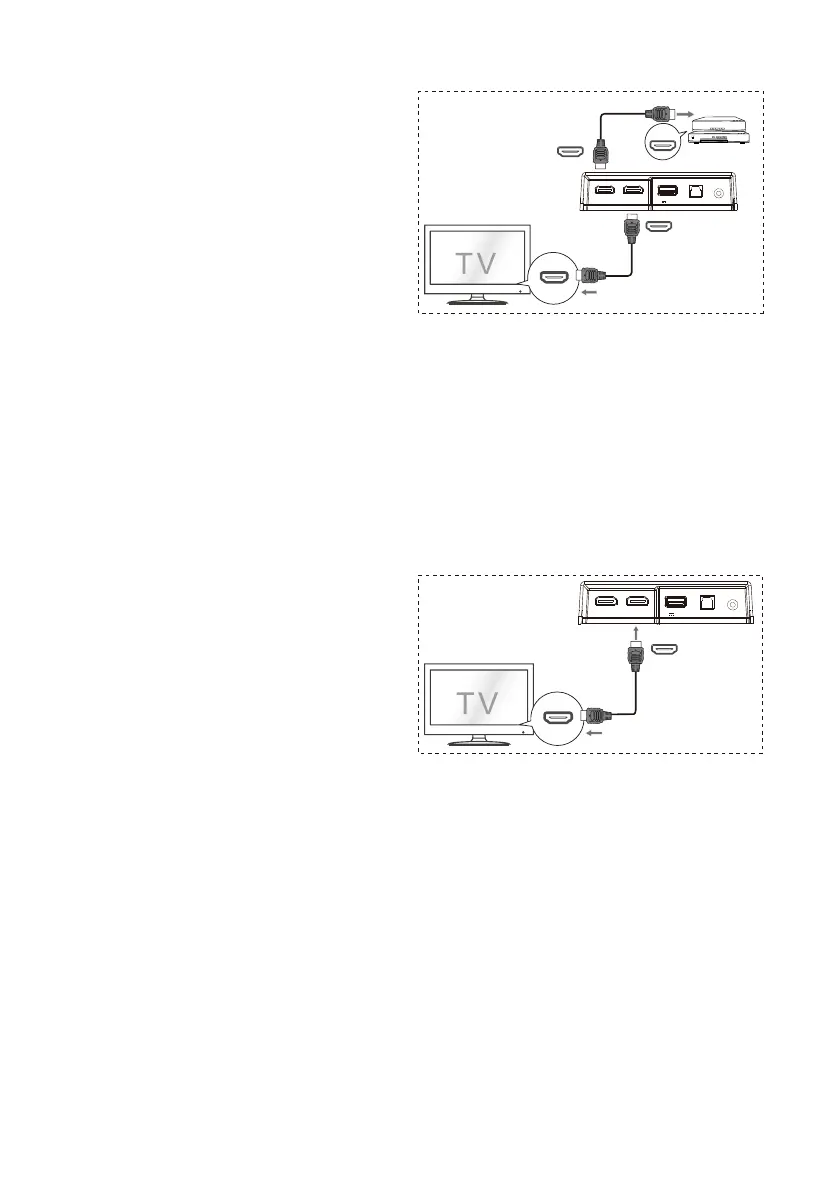

Using HDMI to connect the soundbar, AV
equipment and TV:
Method 1: Standard HDMI
- If your TV is not HDMI ARC-compliant,
connect your soundbar to the TV t
hrough a
standard HDMI connection.
1. Use an HDMI cable to connect the soundbar's
HDMI OUT (eARC/ARC) socket to the TV’s
HDMI (ARC) socket.
2. Use an HDMI cable to connect the soundbar's
HDMI IN socket to your external
devices
(e.g. games consoles, DVD players and
blu-ray).
Method 2:
eARC / ARC (Audio Return Channel)
The eARC / ARC (Audio Return Channel) function
allows you to send audio from your ARC-
compliant TV to your soundbar through a single
HDMI connection. To enjoy the ARC
function,
please ensure your TV is both HDMI-CEC and ARC
compliant and set up accordingly. When correctly
set up, you can use your TV remote control to
adjust the volume output (VOL +/- and MUTE) of
the soundbar.
-
Connect the HDMI cable from unit's HDMI
OUT (TV eARC/ARC) socket to the HDMI (ARC)
socket on your ARC compliant TV. Then press
the remote control to select HDMI eARC.
Tips:
• Your TV must support the HDMI-CEC and ARC
function. HDMI-CEC and ARC must be set to
On.
• T
he setting method of HDMI-CEC and ARC
may differ depending on the TV. For details
about ARC function, please refer to the
owner’s manual.
• ARC only works with devices that are HDMI
ARC capable as well as with an HDMI 1.4
cable (and higher).
OPTICAL
HDMI eARC
OPTICAL
HDMI IN
HDMI OUT
(eARC/ARC)
AUX
USB
5V 500mA
HDMI
eARC/ARC
OPTICAL
COAXIAL
COAXIAL
OPTICAL
HDMI (ARC)
Blu-ray Player / DVD Player /
Recorder / Set-top Box...
HDMI OUT
HDMI OUT
TV eARC/ARC
HDMI IN
OPTICAL
HDMI IN
HDMI OUT
(eARC/ARC)
AUX
USB
5V 500mA
