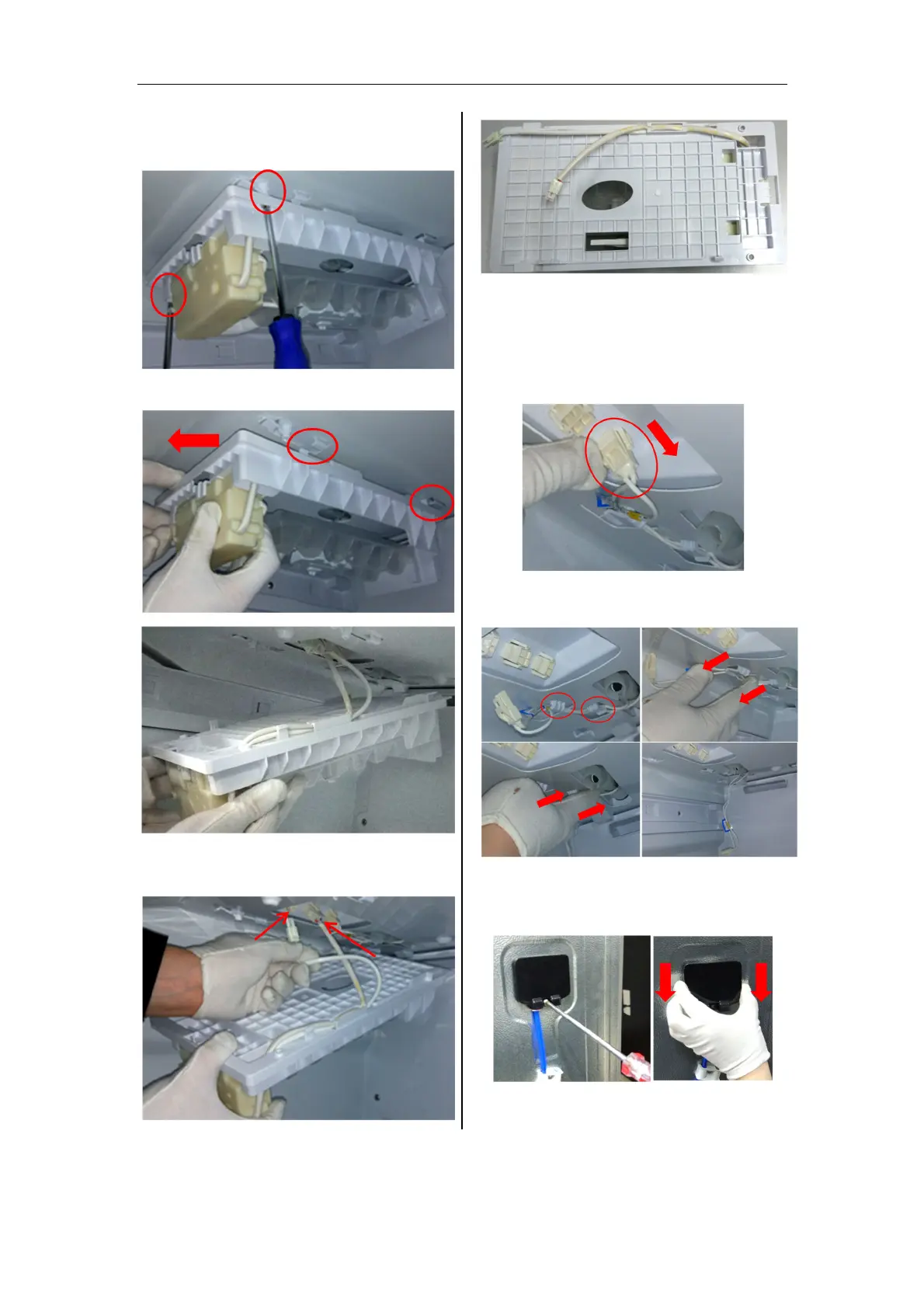

2. Disassemble two fixed screws with a
cross screwdriver (+).
3. Pull out the ice maker part.
4. Unplug two terminals, then take out the
ice maker part.
5.3 Remove the water pipe connector
part
1. Remove the ice maker part.
2. Unplug the terminal.
3. Remove wire line from two buckles in
the direction of arrow one by one.
4. Disassemble the fixed screw with a
cross screwdriver (+), then pull the ice
maker inlet cover down.
5. Pull the blue water tube out in the
direction of arrow.
