44 / 56
6.5 Damper (Electric wind gate)
6.5.1 Basic parameters
Rated voltage: DC12V
Rated current: 60mA
6.5.2 Checking method

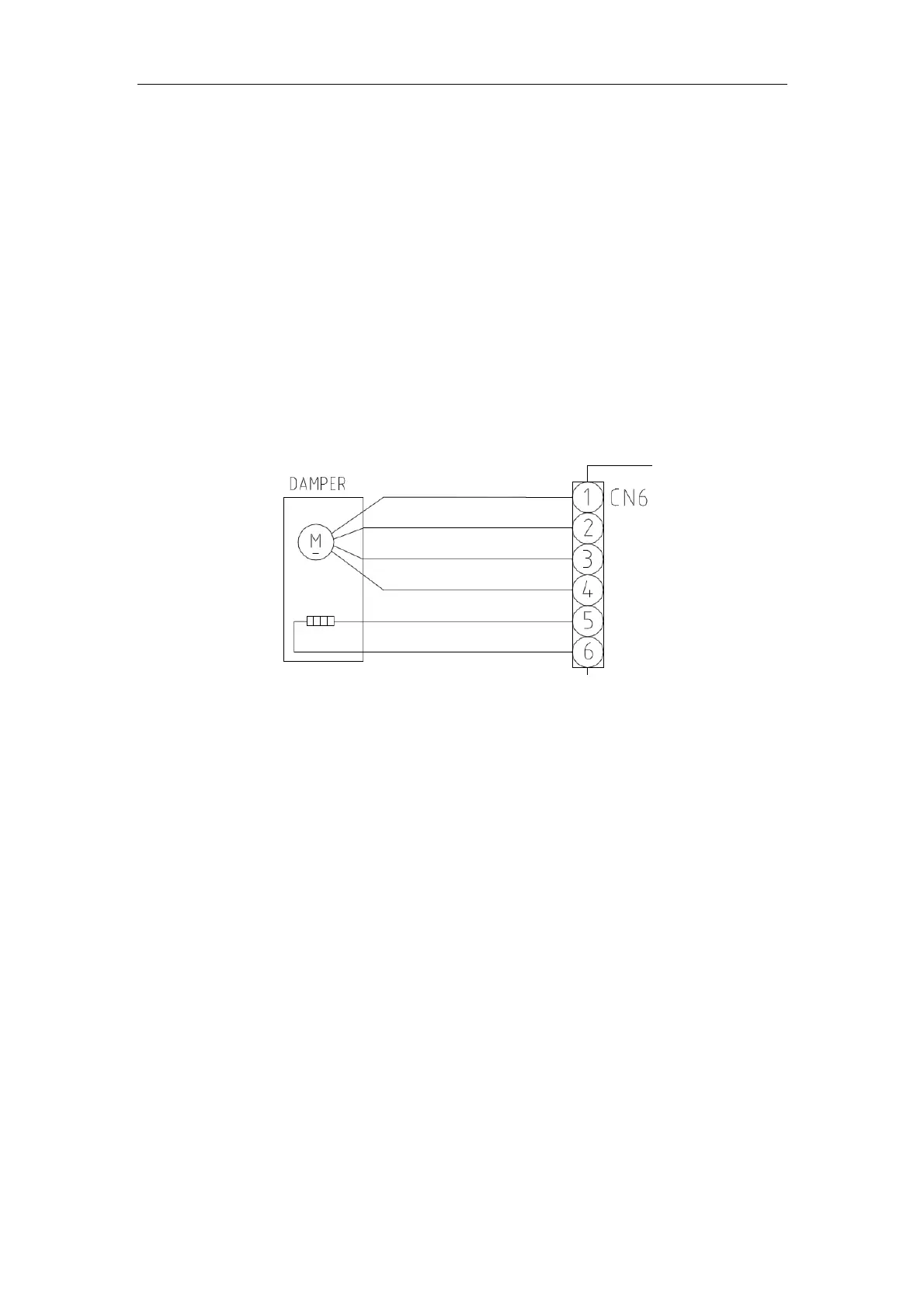

1. Check the connecting wiring of the damper is well or not, repair if it is broken. The
damper corresponding pin No.1~6 on CN6 connector of mainboard, as the drawing below.
2. The damper will turn on and off for one time after power-on, if not, change the
mainboard first and change the damper if problem remains.
6.6 Light
6.6.1 Basic parameters
Rated voltage: DC12V
6.6.2 Checking method
Check the connecting wiring between light and mainboard is well or not. Repair if it is
broken.
Refrigerator light corresponding pin No.1 and No.2 on CN7 connector of mainboard.
freezer light corresponding pin No.1 and No.3 on CN7 connector of the mainboard.
As the drawing below.
Check output voltage corresponding light of the mainboard, if it is 12V, it means the
mainboard is OK, change the light; If not, it means the mainboard is not OK, change it.
