Hisense BCD-543WPAZR/HC1(E) - Freezer Room Water Lines

49 / 56

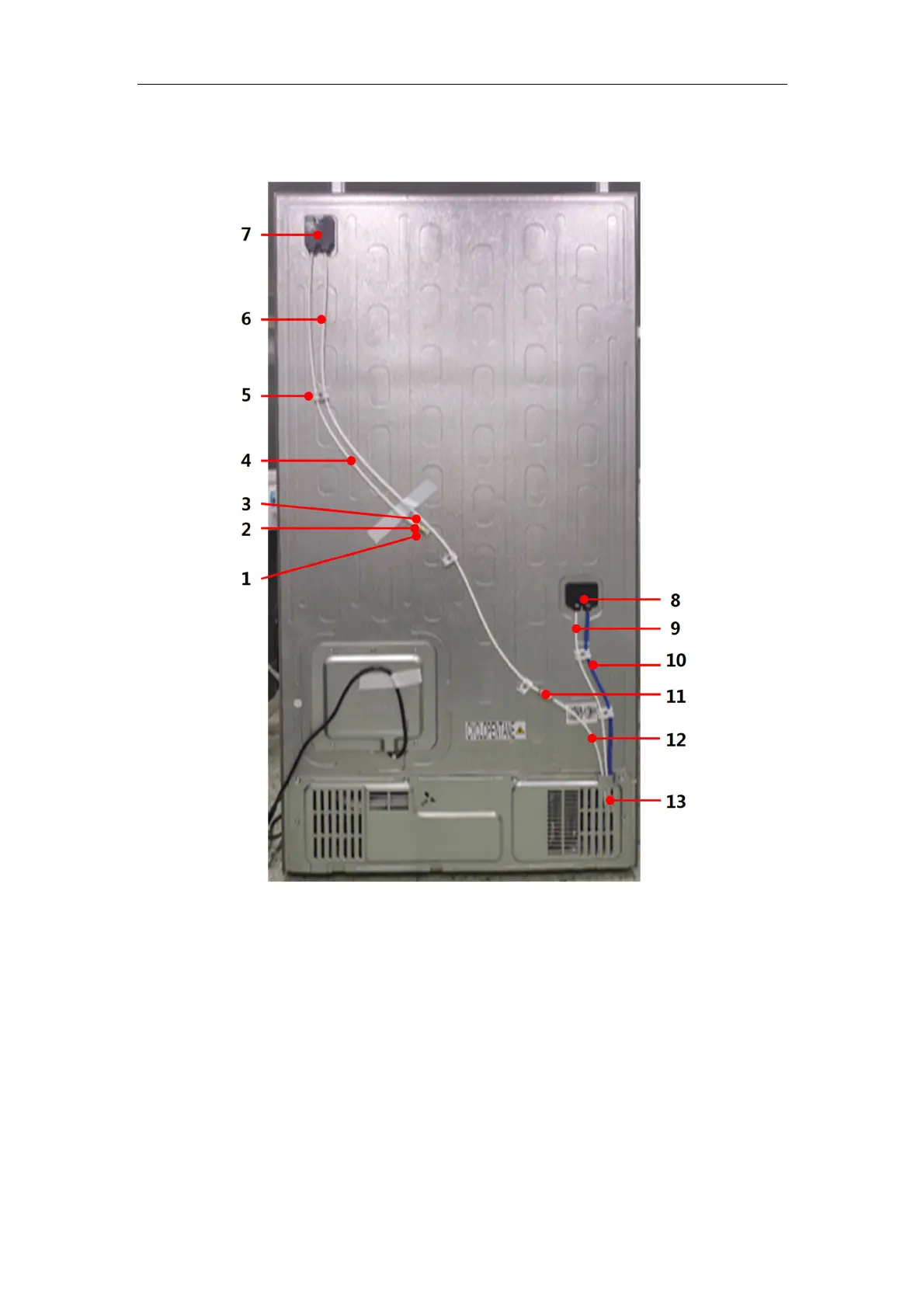

6.10.2 Water system out of the freezer room
1—Pipe cover
2—Connector Nut
3—Tap Water Joint Connector
4—Water tube (white, flow into the water filter)
5—Installation clip
6—Water tube (white, flow out the water filter, flow into motorized valve)
7—Water supply inlet cover
8—Icemaker inlet cover
9—Water tube (white, flow into the water tank in fridge room)
10—Water tube (blue, flow into the icemaker in freezer room)
11—Connector (180°)
12—Water tube (white, Motorized valve inlet tube)
13—Motorized valve
