INSTALLATION

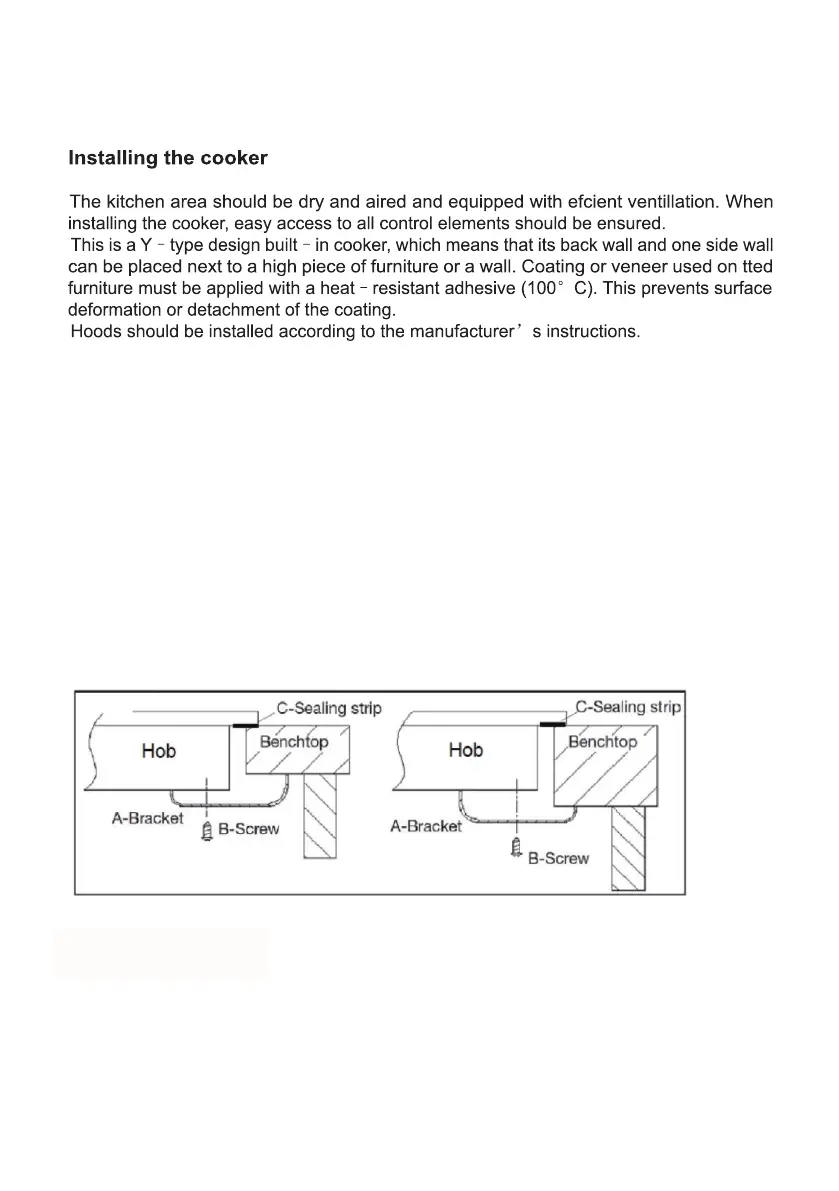

1. Assembly of electric hob with brackets:
Place a bracket onto each corner, ensuring that the outer hole lines up with the hole on
the corner of the hob.
Fasten the bracket to the corner of the hob with a screw.
Place the long screw into the fixing hole on the outer edge of the bracket but do not
fully tighten.
Carefully turn the cooktop back over and then gently lower it into the aperture hole that
you have cut out.
When the hob is correctly positioned, tighten the long screws to fix the hob securely in
the aperture hole. These screws MUST be securely tightened.
(A)Bracket
(B)Screw
(C)Sealing strip
