-15-
MN1-5821 Rev. 4
4-3. How to attach/release the magnetic position sensor and the magnetic position sensor attachment
This section provides the procedure to attach the magnetic position sensor and the magnetic position sensor attachment
to the probe. Note that a probe cover is mounted after attaching these devices to the probe.
After use, reverse the procedure to remove these devices from the probe.

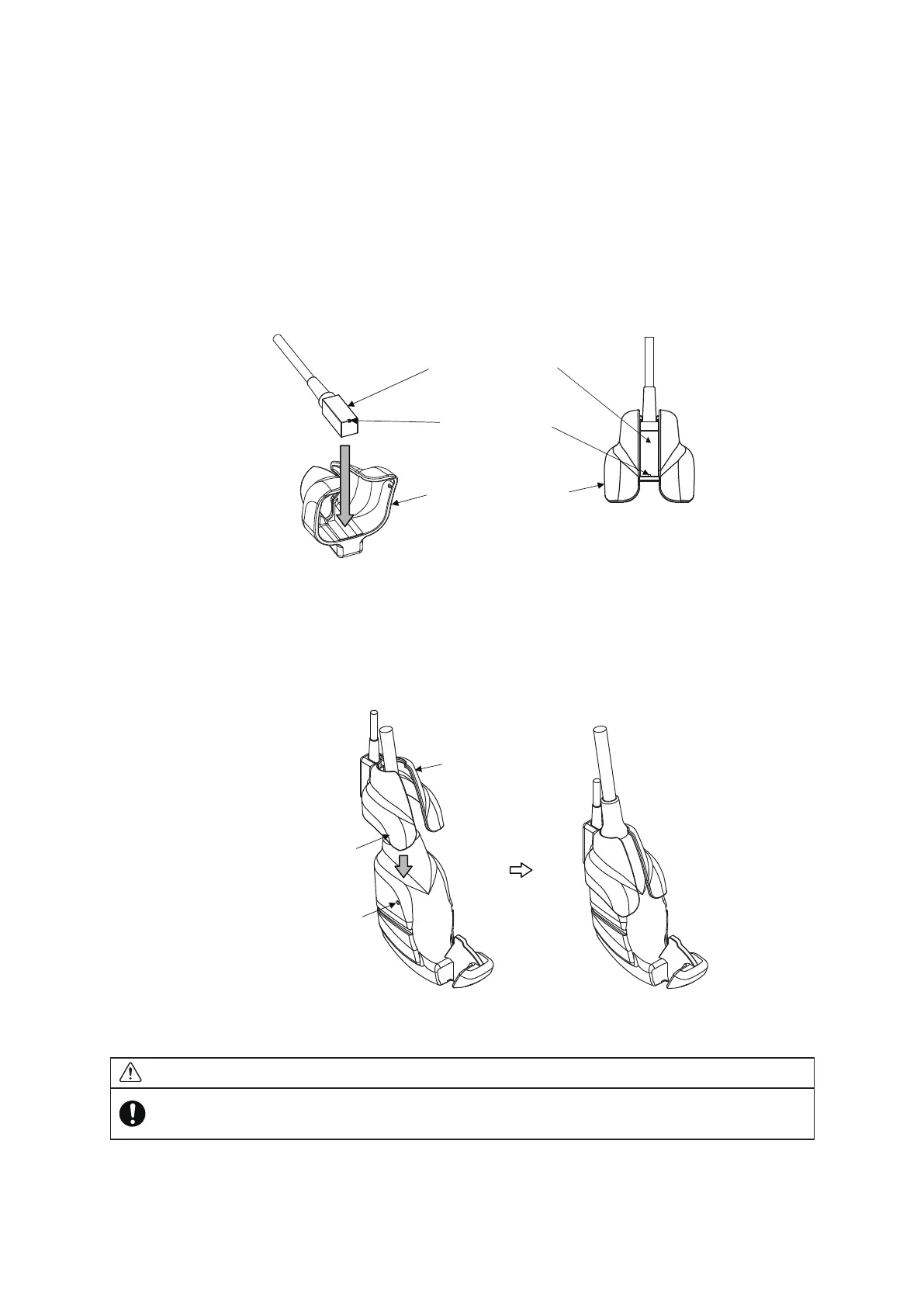

(1) Place the magnetic position sensor into the magnetic position sensor attachment. The direction mark of the sensor
is upward as shown in Figure 16.
Magnetic Position
Sensor Attachment
Direction mark
(upward)
Magnetic Position Sensor
Figure 16 How to attach Magnetic Position Sensor
(2) Attach the magnetic position sensor attachment to the probe as shown in Figure 17.
Figure 17 How to attach Magnetic Position Sensor Attachment
Caution
Attach the magnetic position sensor to the magnetic position sensor attachment correctly.
A false diagnosis may be caused if the sensor is attached in the wrong direction.
Groove of the probe
Magnetic Position
Sensor Attachment
Projected part
(inside the attachment)
To Next Page
