10. Put down the server blade with the PCI expansion blade, and then lift up
the server blade from the shelf.

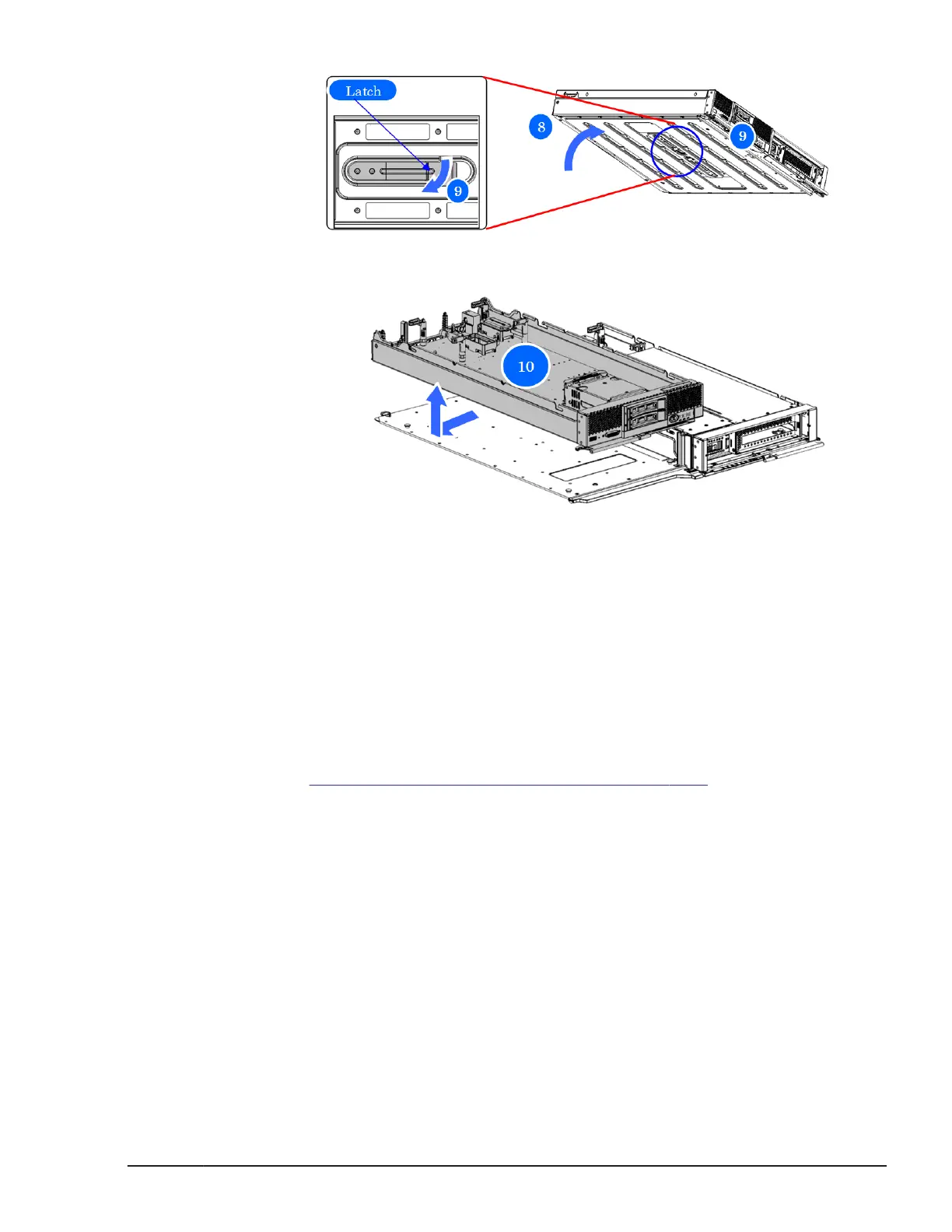

Figure 5-26 Removing a server blade from the shelf
Installing a server blade with the PCI expansion blade
1. Put on an anti-static wrist strap.
2. Align the server blade onto the position indicated with blue circles in the
following figure, and then put the server on the shelf.
3. Slide the server blade toward the expansion blade until it fixes.
(Confirm that the server blade does not slide toward opposite side.)
4. Open the top cover of the server blade.
See
Opening a top cover, Server blade on page 5-38 section.
Replacing parts
5-25
Hitachi Compute Blade 500 Series System Service Manual
