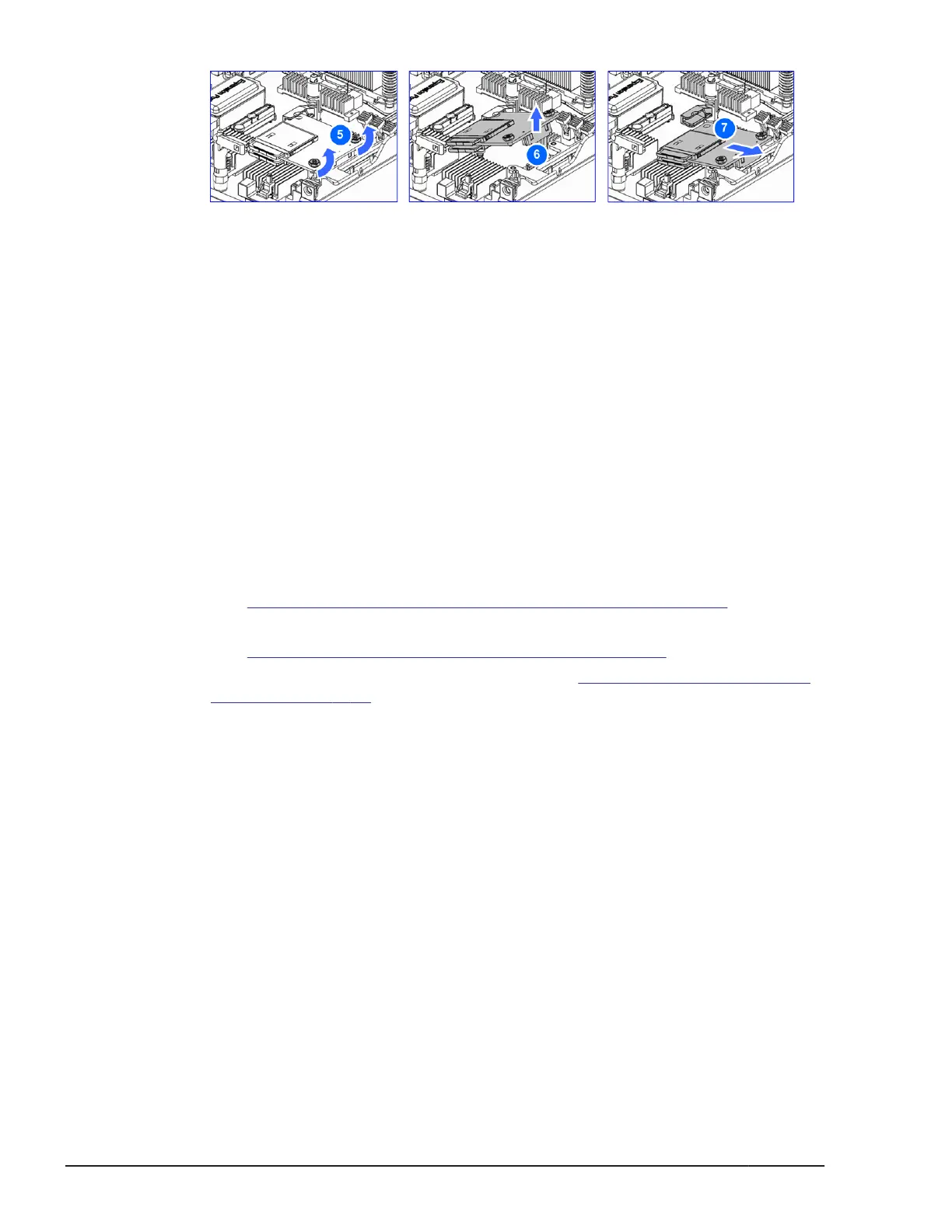

Figure 5-75 Removing the SD card enablement kit
Installing a SD card enablement kit
1. Put on an anti-static wrist strap.
2. Reverse the removal procedure.
Replacing a mezzanine card in the storage expansion blade
This procedure describes how to remove a mezzanine card from the storage
expansion blade.
Removing a mezzanine card
1. Put on an anti-static wrist strap.
2. Record the parameters in the case of replacing Emulex HBA card.
See
Configuration procedure for Emulex HBA card on page 7-2 section.
3. Remove the target storage expansion blade.
See Removing a storage expansion blade on page 5-11 section.
4. Open the top cover of the server blade. See
Opening a top cover, Server
blade on page 5-38 section.
5. Open the lock tabs, as shown below.
6. Grab the mezzanine card shown as arrows A and B, then lift up the
mezzanine card and remove it from the storage expansion blade
assembly.
5-62
Replacing parts
Hitachi Compute Blade 500 Series System Service Manual
