9. Push in the connection board into the server blade straight downward by
pushing the portion indicated Push, and then close the two latches.
10. Push in the connector into the PCI expansion blade straight downward by
pushing the portion indicated Push, and then close the latch.

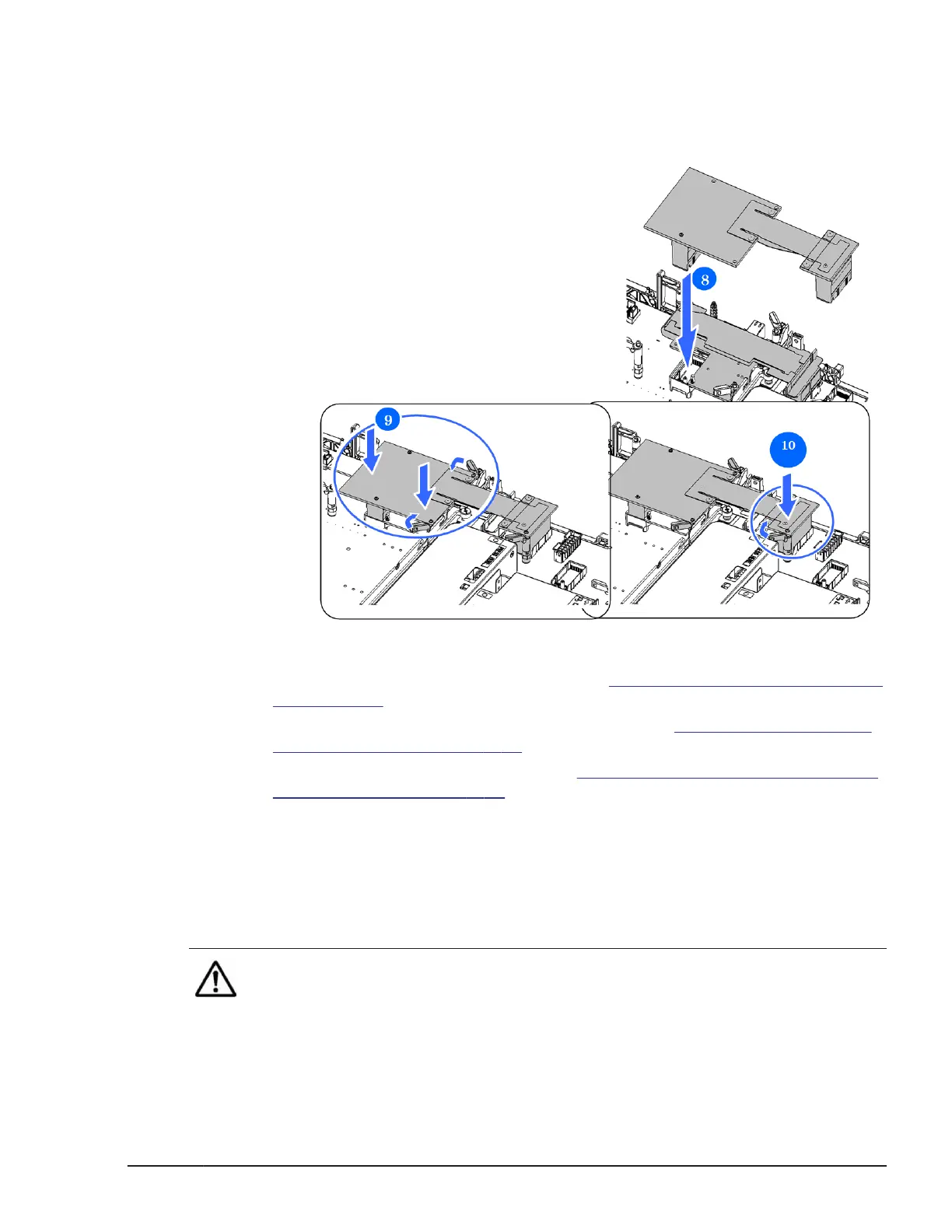

Figure 5-42 Installing connection kit F/H
11. Close the top cover of server blade. See Closing a top cover, Server blade
on page 5-39 section.
12. Close the top cover of PCI expansion blade. See Closing a top cover, PCI
expansion blade on page 5-41 section.
13. Install the PCI expansion blade. See
Installing a PCI expansion blade into
server chassis on page 5-16 section.
Replacing a disk drive
This procedure describes how to replace the disk drive in a server blade or a
storage expansion blade. The disk drive is hot-swappable component and
allows disk drive replacement with the server blade power on.
Note:
• Back up all user data before replacing a disk drive. When the RAID group
and logical unit are deleted or formatted, the user data will be lost.
• Do not remove the failed disk drive if the LEDs of itself or another disk
drive in the same server blade or storage expansion blade indicate the
following conditions.
Replacing parts
5-35
Hitachi Compute Blade 500 Series System Service Manual
