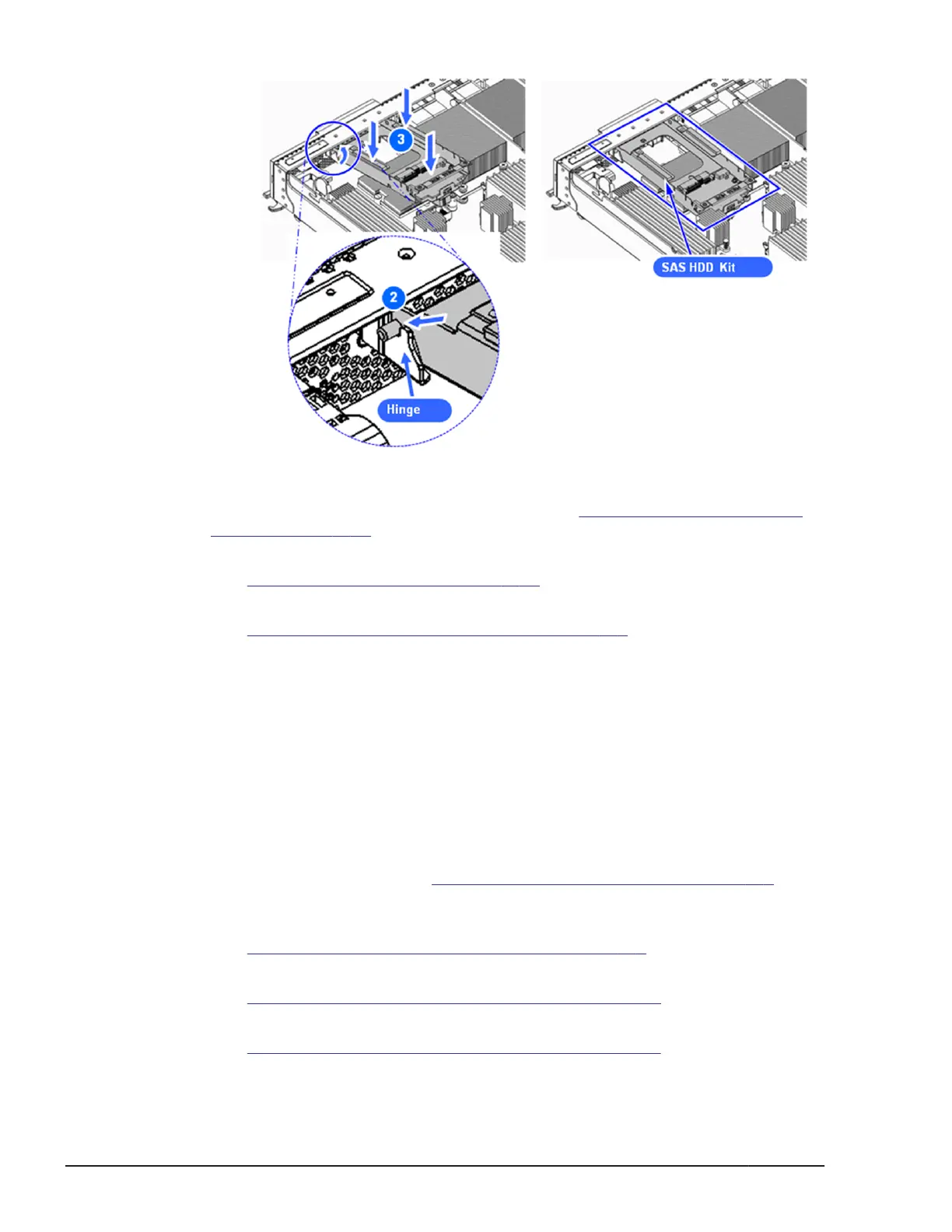

Figure 5-129 Installing SAS HDD kit
4. Close the top cover of the server blade. See Closing a top cover, Server
blade on page 5-39 section.
5. Install a disk drive.
See Installing a disk drive on page 5-36 section.
6. Install the target server blade.
See
Installing a full-wide server blade on page 5-7 section.
Replacing a management module (redundant)
This procedure describes how to replace the management module under the
redundant configuration. Under this configuration, two management modules
are installed in a chassis.
Removing a management module
1. Put on an anti-static wrist strap.
2. Connect web console. See
Web console login procedure on page 4-3
section.
3. Turn on LID LED for identifying the target module.
See
Identify LED (LID) on/off procedure on page 4-7 section.
4. Turn on the maintenance mode from web console.
See
Maintenance mode on/off procedure on page 4-10 section.
5. Identify F/W version and take notes of it.
See F/W version identification procedure on page 4-22 section.
6. Shutdown the failed management module.
5-100
Replacing parts
Hitachi Compute Blade 500 Series System Service Manual
