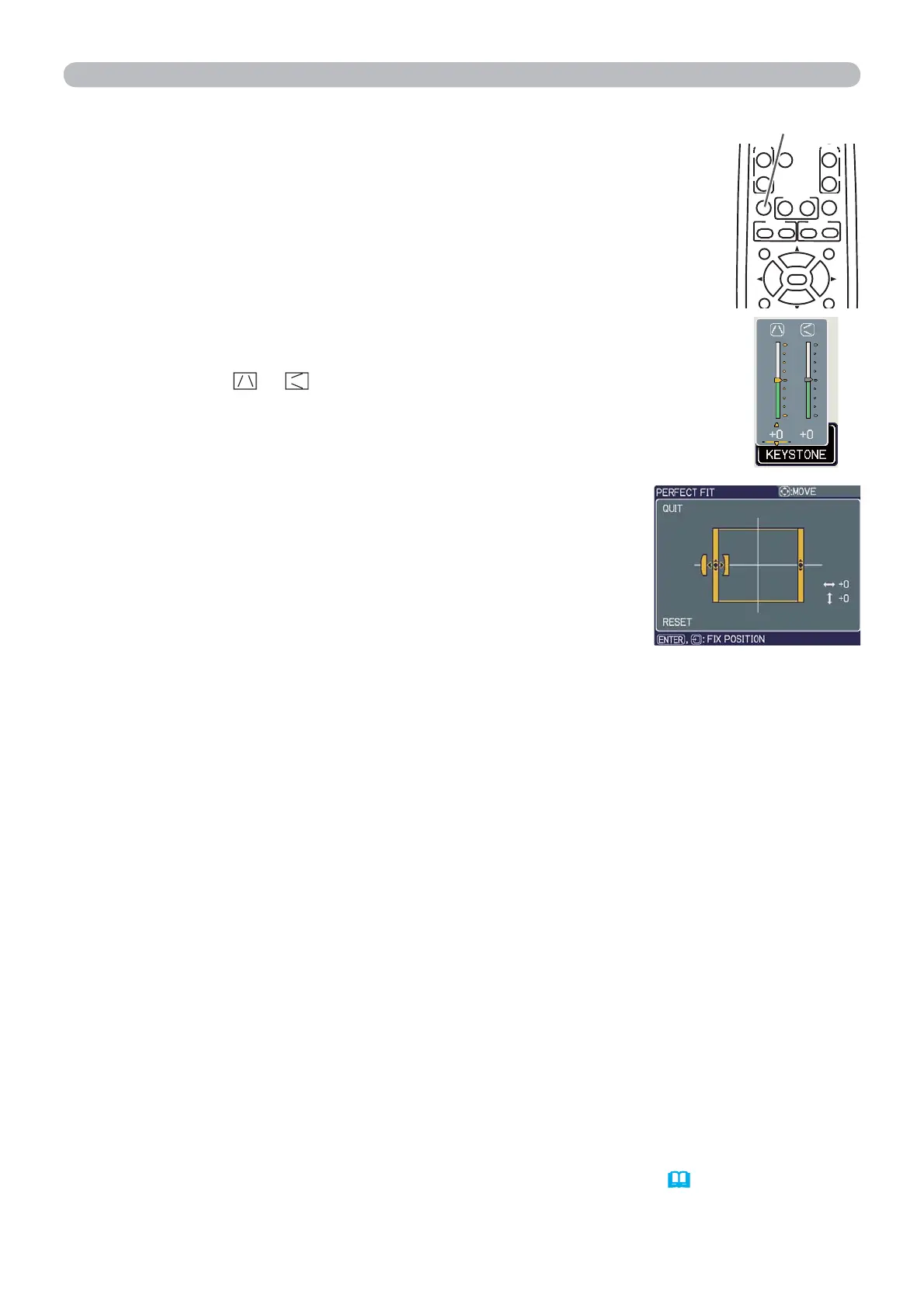

Operating
KEYSTONE button
1.
Press KEYSTONE button on the remote control. A dialog will
appear on the screen to aid you in correcting the distortion.
Even if you do not do anything, the dialog will automatically
disappear after a few seconds.
Correcting distortion
2.
Use the ▲/▼ cursor buttons to select MANUAL or PERFECT
FIT operation, and press the ► button to perform the
following.
(1) MANUAL displays a dialog for keystone correction.
Use the ◄/► cursor buttons to select the direction
to correct (
or ) then use the ▲/▼ buttons for
adjustment. Even if you do not do anything, the dialog will
automatically disappear after a few seconds.
(2) PERFECT FIT displays a dialog for adjusting the shape
of the projected image in each of the corners and
sides. Even if you do not do anything, the dialog will
automatically disappear after about one minute.
1) Choose a corner or side to adjust using the ▲/▼/◄/►
buttons and press the ENTER or INPUT button.
2) Adjust the distortion as below.
Use the ▲/▼/◄/► buttons to adjust the position of the
corner.
Use the ▲/▼ buttons to adjust the distortion of the top
or bottom side, after defining the adjusting position with the ◄/► buttons.
Use the ◄/► buttons to adjust the distortion of the left or right side, after defining
the adjusting position with the ▲/▼ buttons.
Press the ENTER or INPUT button to exit the adjustment.
3) To adjust another corner or side, follow the same procedure from 1) above.
To reset the adjustment of all the corners and sides, select RESET with the ▲/▼
buttons and press the ENTER or INPUT button.
● While the distortion is adjusted with the PERFECT FIT function, keystone adjustment
feature is unavailable. To correct the keystone distortion, reset the adjustment of all
the corners and sides.
● The adjustable range of this function will vary among inputs. For some input, this
function may not work well.
● When the zoom adjustment is set to the TELE (telephoto focus), this function may be
excessive. This function should be used when the zoom adjustment is set to the full
WIDE (wide-angle focus) whenever possible.
● One adjustment position common to the top and bottom sides can be set. Also,
another adjustment position common to the left and right sides can be set.
● The distortion of the top and bottom sides can be adjusted only in the same direction,
pincushion or barrel. The adjustment for the left and right sides is carried out in the
same manner.
● This function will be unavailable when Transition Detector is on (
54).
To close the dialog and complete this operation, press the KEYSTONE button again.
