Hitachi CP-AX3505 User Manual

45

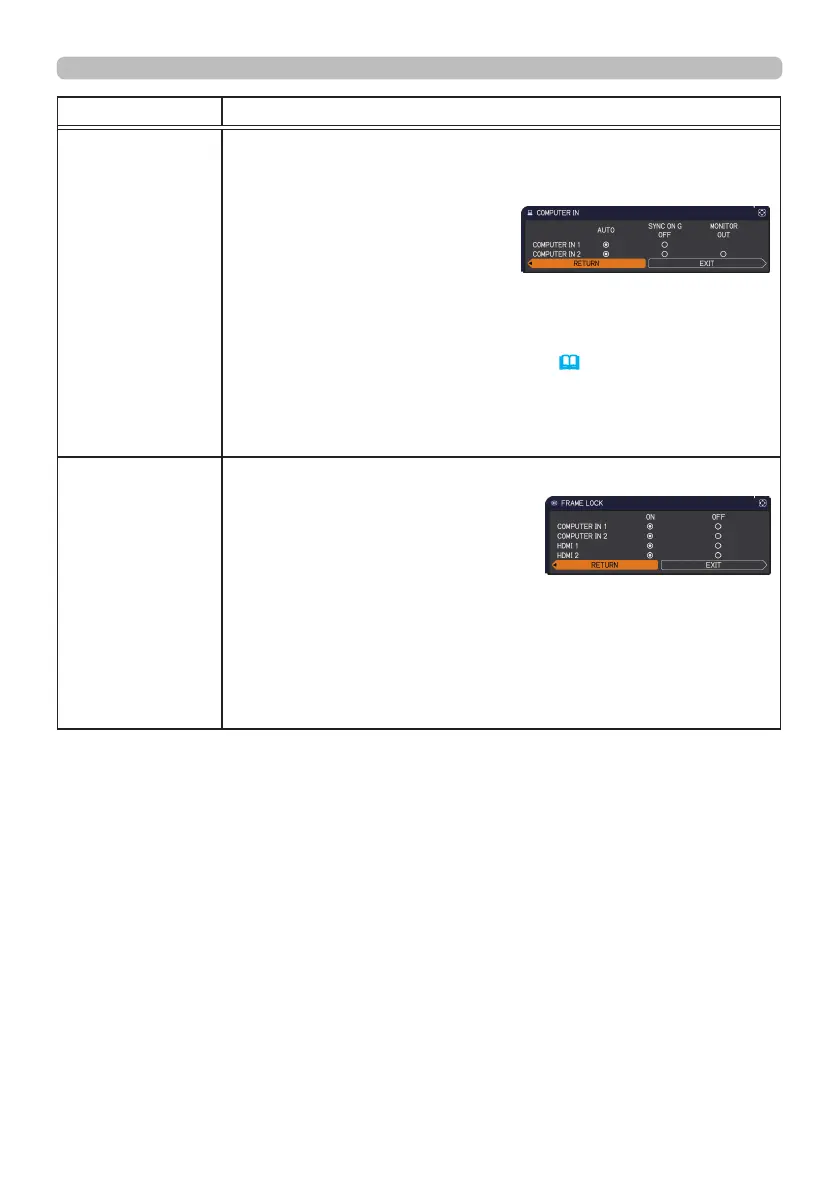

INPUT menu
Item Description
COMPUTER IN
The computer input signal type for COMPUTER IN1 and IN2 ports
can be set.
(1) Use the ▲/▼ buttons to select the COMPUTER IN port to be
set.
(2) Use the ◄/► buttons to select
the computer input signal type.
(COMPUTER IN1)
AUTO
ó
SYNC ON G OFF
(COMPUTER IN2)
AUTO
ó
SYNC ON G OFF
ó
MONITOR OUT
• Selecting the AUTO mode allows you to input a sync on G signal
or component video signal from the port (

12).
• In the AUTO mode, the picture may be distorted with certain
input signals. In such a case, remove the signal connector so that
no signal is received and select the SYNC ON G OFF, and then
reconnect the signal.
FRAME LOCK
Set the frame lock function on/off for each port.
(1) Use the ▲/▼ buttons to select
the input ports.
(2) Use the ◄/► buttons to turn the
frame lock function on/off .
ON
ó
OFF
• This item can be performed only on a signal with a vertical
frequency of 49 to 51Hz, 59 to 61 Hz.
• When ON is selected, moving pictures are displayed more
smoothly.
• This function is unavailable for a signal from the HDMI (of
480i@60 or 576i@50 or 1080i@50/60) port.
(continued on next page)

Hitachi CP-AX3505 Specifications

General

Placement	Ceiling
Product type	Ultra short throw projector
Product color	White
Number of colors	16.78 million colors
Projection technology	-
Contrast ratio (typical)	10000:1
Screen size compatibility	60 - 100 \
Projector native resolution	XGA (1024x768)
Projector brightness (economic mode)	2214 ANSI lumens
Focus	Auto
Digital zoom	1.35 x
Focal length range	- mm
Lamp power	250 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
Full HD	No
Supported video modes	480i, 480p, 576i, 720p, 1080i, 1080p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
PC in (D-Sub)	Yes
Serial interface type	RS-232C
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	36 dB
Certification	UL/CUL, FCC PART15 CLASS B, AS/NZS CISPR22 CLASS B, CE, ROHS, GOST-R
Noise level (economic mode)	29 dB
Operating temperature (T-T)	0 - 40 °C
Power source	AC
AC input voltage	220 - 240 V
Power consumption (standby)	0.35 W
Power consumption (typical)	350 W
Sustainability certificates	RoHS
RMS rated power	16 W

Weight and Dimensions

Depth	360 mm
Width	377 mm
Height	136 mm
Weight	4300 g
