31
CALIBRATION
KEYSTONE/
ASPECT
ACCENTUALIZER
HDCR
AV MUTE
POSITION
ESC MENU
RESET
IWB
AUTO
PAGE
DOWN
ON
OFF
FREEZE
UP
1
2
ENTER
FOCUS
-
+
D-ZOOM
-
+
VOLUME
MAGNIFY
MYBUTTON
INPUT
PERFECT FIT
TEMPLATE
CALIBRATION
KEYSTONE/
ASPECT
ACCENTUALIZER
HDCR
AV MUTE
POSITION
ESC MENU
RESET
IWB
AUTO
PAGE
DOWN
ON
OFF
FREEZE
UP
1
2
ENTER
FOCUS
-
+
D-ZOOM
-
+
VOLUME
MAGNIFY
MYBUTTON
INPUT
PERFECT FIT
TEMPLATE

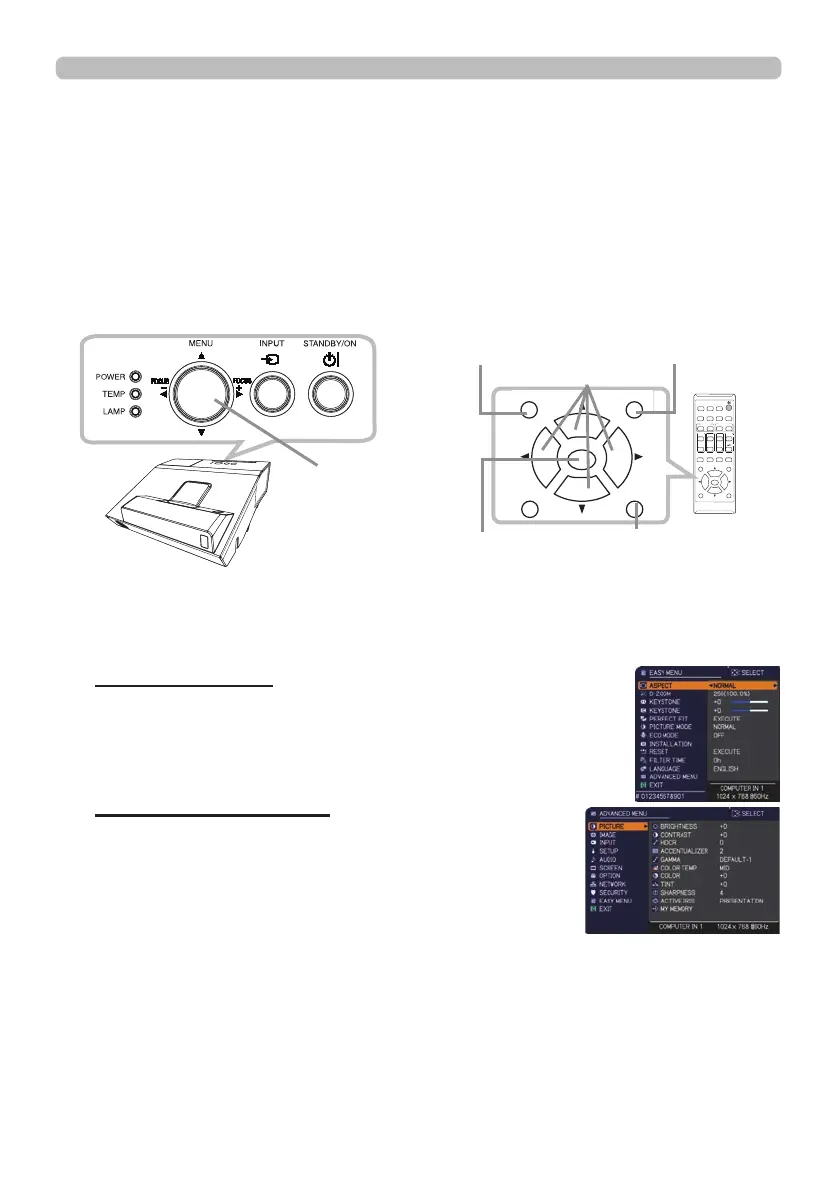

Operating
1.
To start the MENU, press the MENU button. The MENU you last used (EASY
or ADVANCED) will appear. EASY MENU has priority to appear just after
powered on.
Using the menu function
2.
(1) Use the ▲/▼ cursor buttons to select an item to
operate. If you want to change it to the ADVANCED
MENU, select the ADVANCED MENU.
(2) Use the ◄/► cursor buttons to operate the item.
This projector has the following menus:
PICTURE, IMAGE, INPUT, SETUP, AUDIO, SCREEN, OPTION, NETWORK,
SECURITY and EASY MENU.
EASY MENU consists of functions often used, and the other menus are classied
into each purpose and brought together as the ADVANCED MENU.
Each of these menus is operated using the same methods. While the projector
is displaying any menu, the MENU button on the projector works as the cursor
buttons. The basic operations of these menus are as follows.
In the EASY MENU
(continued on next page)
(1) Use the ▲/▼ cursor buttons to select a menu.
If you want to change it to the EASY MENU, select
the EASY MENU.
The items in the menu appear on the right side.
(2) Press the ► cursor button or ENTER button to
move the cursor to the right side. Then use the
▲/▼ cursor buttons to select an item to operate and press the ► cursor
button or ENTER button to progress. The operation menu or dialog of the
selected item will appear.
(3) Use the buttons as instructed in the OSD to operate the item.
In the ADVANCED MENU
MENU button
(Cursor buttons)
RESET button
ENTER button
MENU button
Cursor buttons
ESC button

Other manuals for Hitachi CP-AX3505

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Hitachi CP-AX3505 and is the answer not in the manual?

Hitachi CP-AX3505 Specifications

General IconGeneral
PlacementCeiling
Product typeUltra short throw projector
Product colorWhite
Number of colors16.78 million colors
Projection technology-
Contrast ratio (typical)10000:1
Screen size compatibility60 - 100 \
Projector native resolutionXGA (1024x768)
Projector brightness (economic mode)2214 ANSI lumens
FocusAuto
Digital zoom1.35 x
Focal length range- mm
Lamp power250 W
Light source typeLamp
Service life of light source4000 h
Service life of light source (economic mode)5000 h
Full HDNo
Supported video modes480i, 480p, 576i, 720p, 1080i, 1080p
Analog signal format systemNTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
PC in (D-Sub)Yes
Serial interface typeRS-232C
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level36 dB
CertificationUL/CUL, FCC PART15 CLASS B, AS/NZS CISPR22 CLASS B, CE, ROHS, GOST-R
Noise level (economic mode)29 dB
Operating temperature (T-T)0 - 40 °C
Power sourceAC
AC input voltage220 - 240 V
Power consumption (standby)0.35 W
Power consumption (typical)350 W
Sustainability certificatesRoHS
RMS rated power16 W
Weight and Dimensions IconWeight and Dimensions
Depth360 mm
Width377 mm
Height136 mm
Weight4300 g
