Hitachi CP-AX3505 User Manual

19

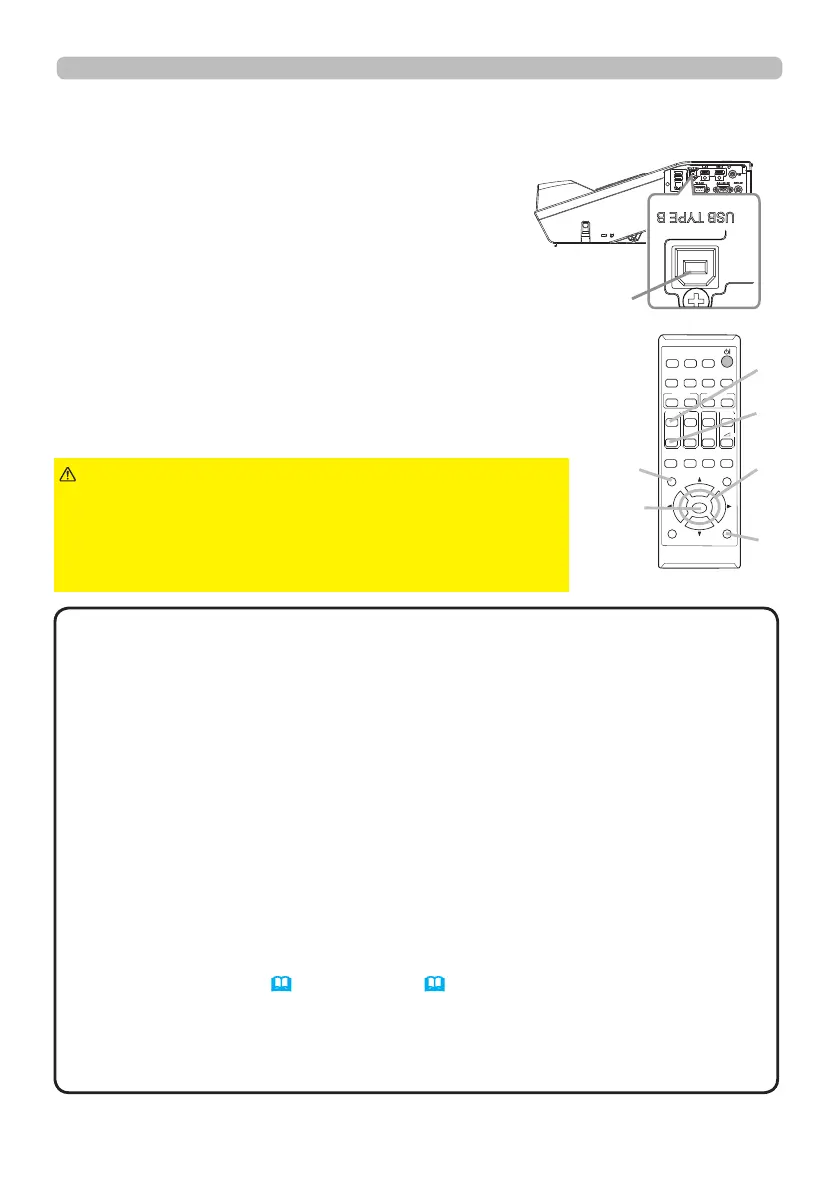

Remote control
Using as a simple PC mouse & keyboard
The accessory remote control works as a simple mouse
and keyboard of the computer, when the projector’s USB
TYPE B port and the computer’s type A USB port are
connected.
(1) PAGE UP key: Press PAGE UP button.
(2) PAGE DOWN key: Press PAGE DOWN button.
(3) Mouse left button: Press ENTER button.
(4) Move pointer: Use the cursor buttons ▲, ▼, ◄ and ►.
(5) ESC key: Press ESC button.
(6) Mouse right button: Press RESET button.
►Improper use of the simple mouse & keyboard
function could damage your equipment. While using this
function, please connect this product only to a computer. Be
sure to check your computer’s manuals before connecting this
product to the computer.
NOTICE
When the simple mouse & keyboard function of this product does not work
correctly, please check the following.
• When a USB cable connects this projector with a computer having a built-in pointing
device (e.g. track ball) like a laptop PC, open BIOS setup menu, then select the external
mouse and disable the built-in pointing device, because the built-in pointing device may
have priority to this function.
•
Windows XP SP3 or higher is required for this function. And also this function may not work
depending on the computer’s congurations and mouse drivers. This function can work with the
computer which can operate general USB mouse or keyboard.
• You cannot do things like press two buttons at once (for instance, pressing two buttons
at the same time to move the mouse pointer diagonally).
•
This function is activated only when the projector is working properly. This function is not
available in any of the following cases:
- While the lamp is warming up. (The POWER indicator blinks in green.)
- When either USB TYPE A or USB TYPE B port is selected.
- While displaying BLANK
(23) , TEMPLATE (58) or MY IMAGE screen.
- When any menu is displayed on the screen.
-
While using the cursor buttons to operate the sound or screen functions such as adjusting the
sound volume, correcting the keystone, correcting the picture position and magnifying the screen.
NOTE
CALIBRATION
KEYSTONE/
ASPECT
ACCENTUALIZER
HDCR
AV MUTE
POSITION
ESC MENU
RESET
IWB
AUTO
PAGE
DOWN
ON
OFF
FREEZE
UP
1
2
ENTER
FOCUS
-
+
D-ZOOM
-
+
＋
ー
VOLUME
MAGNIFY
MYBUTTON
INPUT
PERFECT FIT TEMPLATE
(1)
(3)
(5)
(2)
(4)
(6)
USB TYPE B
port

Hitachi CP-AX3505 Specifications

General

Placement	Ceiling
Product type	Ultra short throw projector
Product color	White
Number of colors	16.78 million colors
Projection technology	-
Contrast ratio (typical)	10000:1
Screen size compatibility	60 - 100 \
Projector native resolution	XGA (1024x768)
Projector brightness (economic mode)	2214 ANSI lumens
Focus	Auto
Digital zoom	1.35 x
Focal length range	- mm
Lamp power	250 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
Full HD	No
Supported video modes	480i, 480p, 576i, 720p, 1080i, 1080p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
PC in (D-Sub)	Yes
Serial interface type	RS-232C
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	36 dB
Certification	UL/CUL, FCC PART15 CLASS B, AS/NZS CISPR22 CLASS B, CE, ROHS, GOST-R
Noise level (economic mode)	29 dB
Operating temperature (T-T)	0 - 40 °C
Power source	AC
AC input voltage	220 - 240 V
Power consumption (standby)	0.35 W
Power consumption (typical)	350 W
Sustainability certificates	RoHS
RMS rated power	16 W

Weight and Dimensions

Depth	360 mm
Width	377 mm
Height	136 mm
Weight	4300 g
