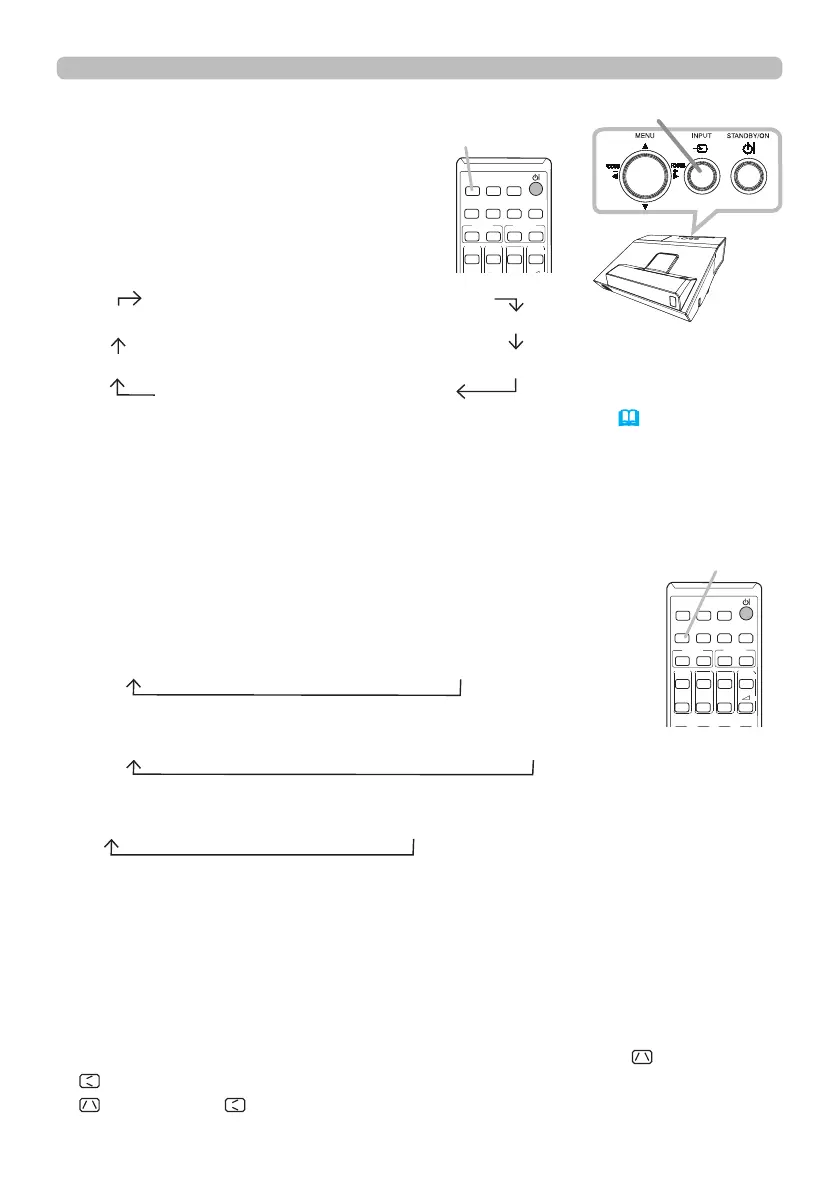

24
Operating
1.
Press ASPECT button on the remote control.
Each time you press the button, the projector switches the
mode for aspect ratio in turn.
Selecting an aspect ratio
ASPECT button does not work when no proper signal is inputted.
● NORMAL mode keeps the original aspect ratio setting.
● The on-screen menu might be displayed outside of the image display area
depending on the adjustment value of the ASPECT, D-ZOOM, KEYSTONE,
KEYSTONE and PERFECT FIT. Changing the values of ASPECT, D-ZOOM,
KEYSTONE, KEYSTONE and PERFECT FIT may x the symptom.
For a computer signal
NORMAL 4:3 16:9 16:10 NATIVE
For a video signal or component video signal
4:3 16:9 16:10 14:9 NATIVE
For an input signal from the LAN, USB TYPE A or USB TYPE B port, or
if there is no signal
CP-AX2505, CP-AX3005, CP-AX3505: 4:3 (xed)
CP-AW2505, CP-AW3005: 16:10 (xed)
For an HDMI
TM
signal
NORMAL 4:3 16:9 16:10 14:9 NATIVE
ASPECT button
CALIBRATION
KEYSTONE/
ASPECT
ACCENTUALIZER
HDCR
AV MUTE
POSITION
ESC MENU
RESET
IWB
AUTO
PAGE
DOWN
ON
OFF
FREEZE
UP
1
2
ENTER
FOCUS
-
+
D-ZOOM
-
+
VOLUME
MAGNIFY
MYBUTTON
INPUT
PERFECT FIT
TEMPLATE
1.
Press INPUT button on the projector.
Each time you press the button, the
projector switches its input port from
the current port as below.
Selecting an input signal
While ON is selected for AUTO SEARCH item in OPTION menu (60), the projector
will keep checking the ports in above order repeatedly till an input signal is detected.
It may take several seconds to project the images from the USB TYPE B port.
COMPUTER IN1 COMPUTER IN2
VIDEO LAN
HDMI
2 USB TYPE A
HDMI 1
USB TYPE B
INPUT button
INPUT button
CALIBRATION
KEYSTONE/
ASPECT
ACCENTUALIZER
HDCR
AV MUTE
POSITION
ESC MENU
RESET
IWB
AUTO
PAGE
DOWN
ON
OFF
FREEZE
UP
1
2
ENTER
FOCUS
-
+
D-ZOOM
-
+
VOLUME
MAGNIFY
MYBUTTON
INPUT
PERFECT FIT
TEMPLATE
