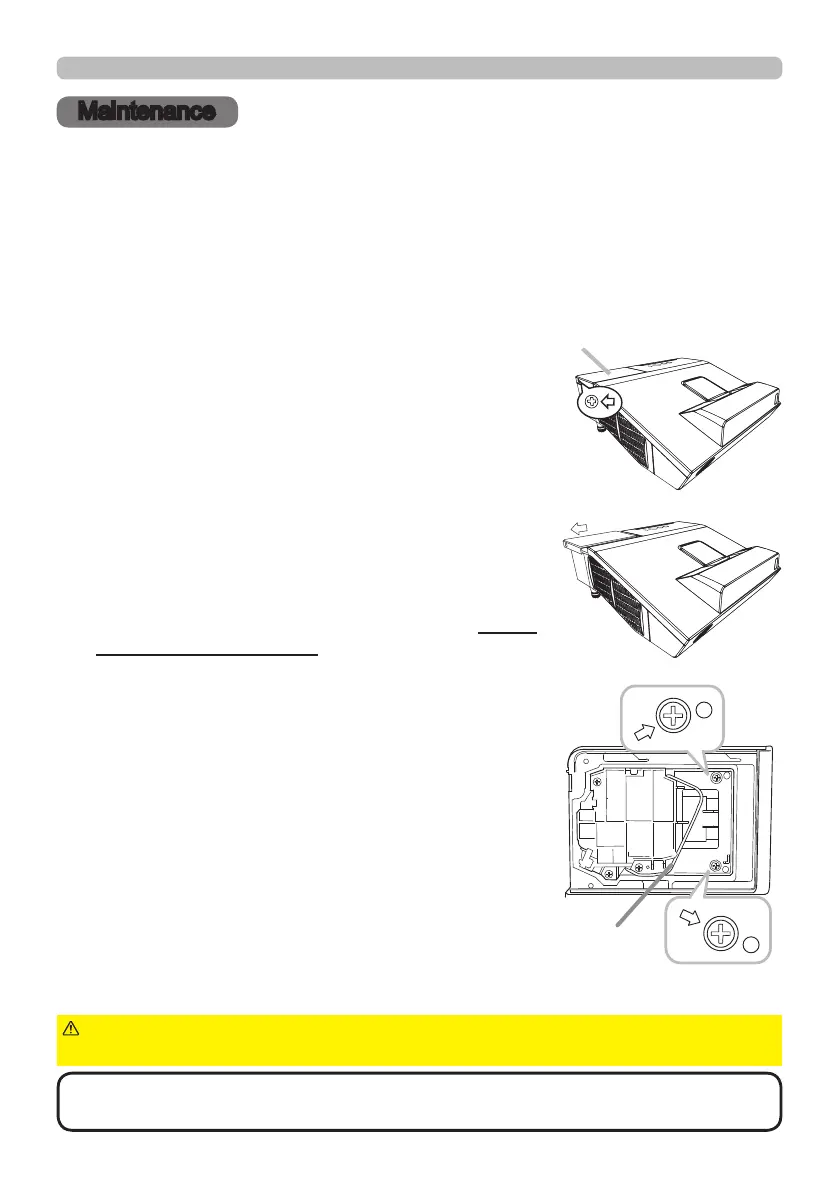

98
Maintenance
Maintenance
A lamp has nite product life. Using the lamp for long periods of time could cause
the pictures darker or the color tone poor. Note that each lamp has a different
lifetime, and some may burst or burn out soon after you start using them.
Preparation of a new lamp and early replacement are recommended. To prepare
a new lamp, make contact with your dealer and tell the lamp type number.
Replacing the lamp
Type number : DT01511 <CP-AX2505, CP-AW2505>
Type number : DT01411 <CP-AX3005, CP-AX3505, CP-AW3005>
1.
Turn the projector off, and unplug the power cord.
Allow the projector to cool for at least 45 minutes.
2.
Prepare a new lamp. If the projector is mounted on
a ceiling, or if the lamp has broken, also ask the
dealer to replace the lamp.
3.
Loosen the screw (marked by arrow) of the lamp
cover and then slide and lift the lamp cover to the
side to remove it.
4.
Loosen the 2 screws (marked by arrow) of the lamp,
and slowly pick up the lamp by the handle. Never
loosen any other screws.
5.
Insert the new lamp, and retighten rmly the 2
screws of the lamp that are loosened in the previous
process to lock it in place.
6.
While putting the interlocking parts of the lamp cover
and the projector together, slide the lamp cover back in
place. Then rmly fasten the screw of the lamp cover.
7.
Turn the projector on and reset the lamp time using
the LAMP TIME item in the SETUP menu.
In case of replacement by yourself, follow the following procedure.
Replacing the lamp
(4)
Point at the LAMP TIME using the ▼/▲ button, then press the ► button. A dialog will appear.
(5)
Press the ► button to select “OK” on the dialog. It performs resetting the lamp time.
• Please reset the lamp time only when you have replaced the lamp,
for a suitable indication about the lamp.
NOTE
►Do not touch any inner space of the projector, while the lamp
is taken out.
CAUTION
(1) Press the MENU button to display a menu.
(2)
Point at the ADVANCED MENU in the menu using
the ▼/▲ button, then press the ► button.
(3)
Point at the SETUP in the left column of the menu
using the ▼/▲button, then press the ► button.
lamp cover
Handle

Other manuals for Hitachi CP-AX3505

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Hitachi CP-AX3505 and is the answer not in the manual?

Hitachi CP-AX3505 Specifications

General IconGeneral
PlacementCeiling
Product typeUltra short throw projector
Product colorWhite
Number of colors16.78 million colors
Projection technology-
Contrast ratio (typical)10000:1
Screen size compatibility60 - 100 \
Projector native resolutionXGA (1024x768)
Projector brightness (economic mode)2214 ANSI lumens
FocusAuto
Digital zoom1.35 x
Focal length range- mm
Lamp power250 W
Light source typeLamp
Service life of light source4000 h
Service life of light source (economic mode)5000 h
Full HDNo
Supported video modes480i, 480p, 576i, 720p, 1080i, 1080p
Analog signal format systemNTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
PC in (D-Sub)Yes
Serial interface typeRS-232C
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level36 dB
CertificationUL/CUL, FCC PART15 CLASS B, AS/NZS CISPR22 CLASS B, CE, ROHS, GOST-R
Noise level (economic mode)29 dB
Operating temperature (T-T)0 - 40 °C
Power sourceAC
AC input voltage220 - 240 V
Power consumption (standby)0.35 W
Power consumption (typical)350 W
Sustainability certificatesRoHS
RMS rated power16 W
Weight and Dimensions IconWeight and Dimensions
Depth360 mm
Width377 mm
Height136 mm
Weight4300 g
