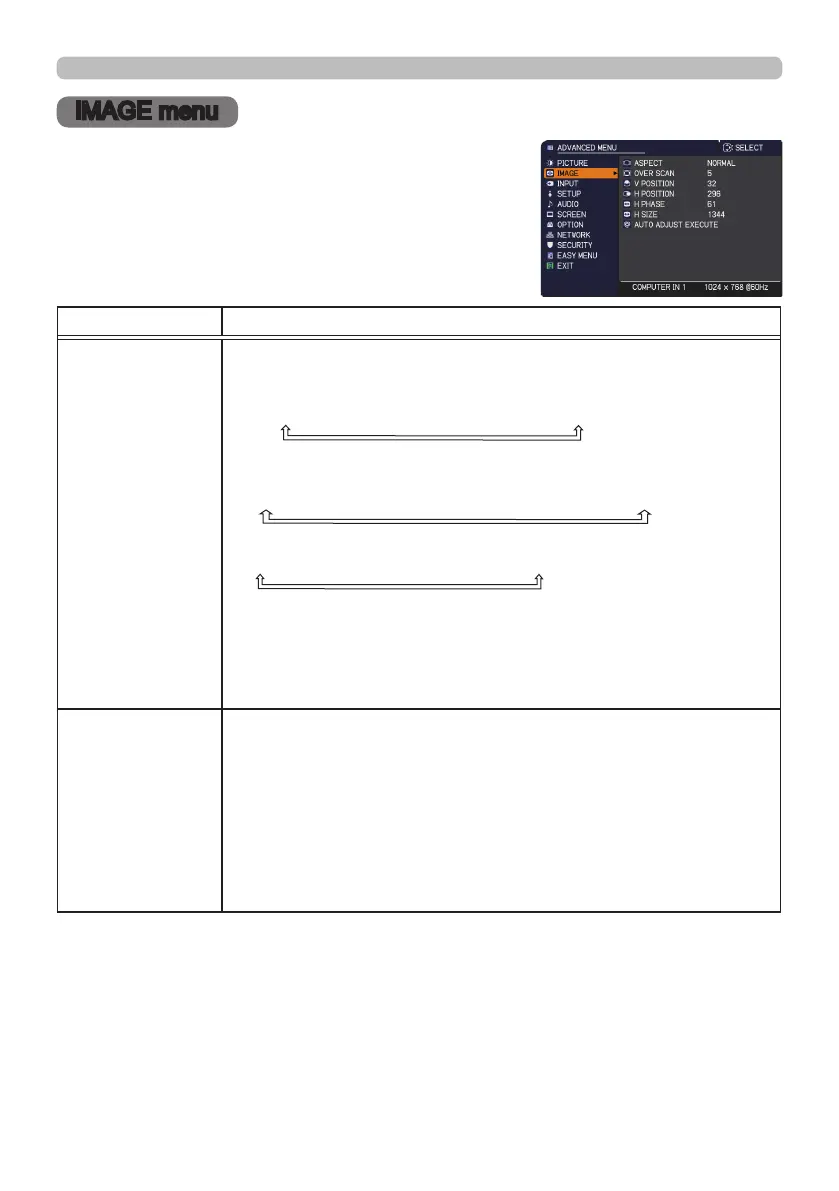

Hitachi CP-AX3505 User Manual

40
IMAGE menu
IMAGE menu
From the IMAGE menu, items shown in the table
below can be performed.
Select an item using the ▲/▼ cursor buttons, and
press the ► cursor button or ENTER button to
execute the item. Then perform it according to the
following table.
Item Description
ASPECT
Using the ▲/▼ buttons switches the mode for aspect ratio.
For a computer signal
NORMAL
ó
4:3
ó
16:9
ó
16:10
ó
NATIVE
For an HDMI
TM
signal
NORMAL
ó
4:3
ó
16:9
ó
16:10
ó
14:9
ó
NATIVE
For a video signal or component video signal
4:3
ó
16:9
ó
16:10
ó
14:9
ó
NATIVE
For an input signal from the LAN, USB TYPE A or USB TYPE B
port, or if there is no signal
CP-AX2505, CP-AX3005, CP-AX3505: 4:3 (xed)
CP-AW2505, CP-AW3005: 16:10 (xed)
• The NORMAL mode keeps the original aspect ratio of the signal.
OVER SCAN
Using the ◄/► buttons adjusts the over-scan ratio.
Small (It magnies picture)
ó
Large (It reduces picture)
• This item can be selected only for a video and component video
signal.
• For an HDMI
TM
signal, this item can also be selected if either (1) or
(2) applies.
(1) HDMI FORMAT item in the INPUT menu is set to VIDEO.
(2) HDMI FORMAT item in the INPUT menu is set to AUTO, and the
projector recognizes that it receives video signals.
(continued on next page)

Hitachi CP-AX3505 Specifications

General

Placement	Ceiling
Product type	Ultra short throw projector
Product color	White
Number of colors	16.78 million colors
Projection technology	-
Contrast ratio (typical)	10000:1
Screen size compatibility	60 - 100 \
Projector native resolution	XGA (1024x768)
Projector brightness (economic mode)	2214 ANSI lumens
Focus	Auto
Digital zoom	1.35 x
Focal length range	- mm
Lamp power	250 W
Light source type	Lamp
Service life of light source	4000 h
Service life of light source (economic mode)	5000 h
Full HD	No
Supported video modes	480i, 480p, 576i, 720p, 1080i, 1080p
Analog signal format system	NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
PC in (D-Sub)	Yes
Serial interface type	RS-232C
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level	36 dB
Certification	UL/CUL, FCC PART15 CLASS B, AS/NZS CISPR22 CLASS B, CE, ROHS, GOST-R
Noise level (economic mode)	29 dB
Operating temperature (T-T)	0 - 40 °C
Power source	AC
AC input voltage	220 - 240 V
Power consumption (standby)	0.35 W
Power consumption (typical)	350 W
Sustainability certificates	RoHS
RMS rated power	16 W

Weight and Dimensions

Depth	360 mm
Width	377 mm
Height	136 mm
Weight	4300 g
