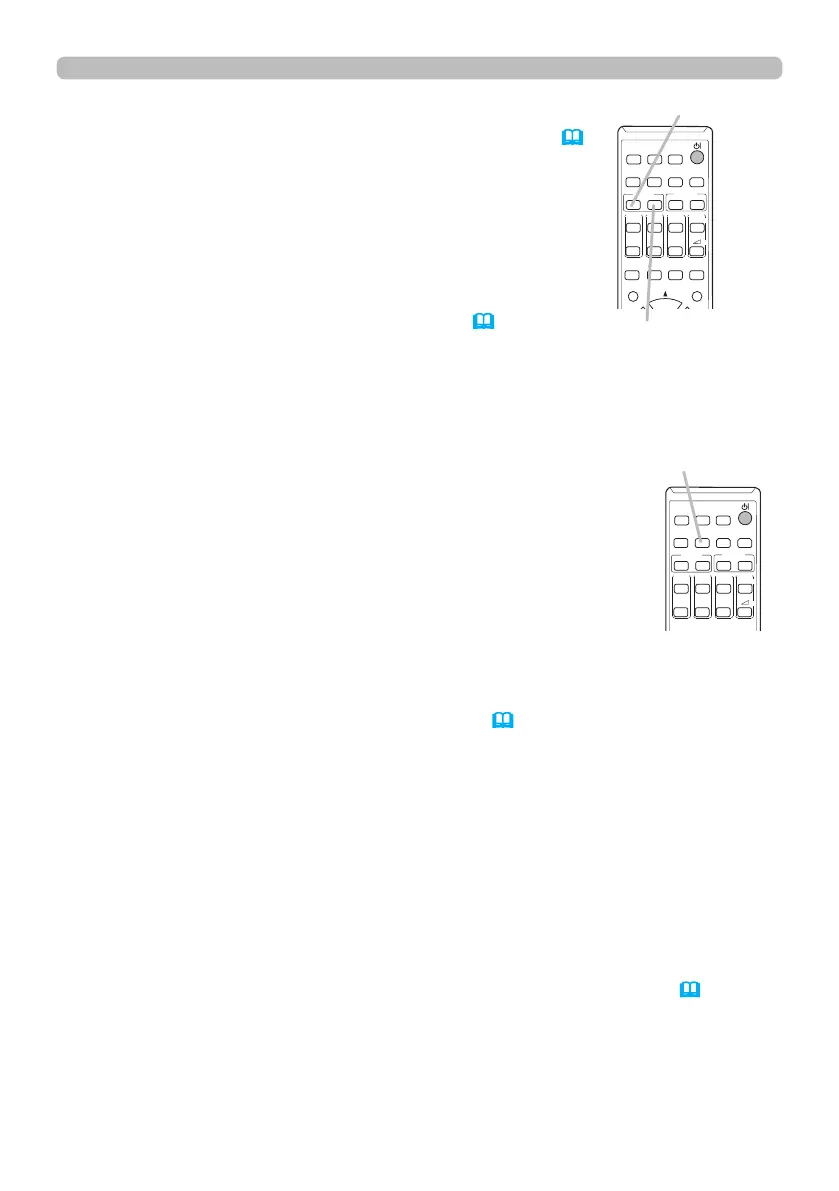

26
CALIBRATION
KEYSTONE/
ASPECT
ACCENTUALIZER
HDCR
AV MUTE
POSITION
ESC MENU
RESET
IWB
AUTO
PAGE
DOWN
ON
OFF
FREEZE
UP
1
2
ENTER
FOCUS
-
+
D-ZOOM
-
+
VOLUME
MAGNIFY
MYBUTTON
INPUT
PERFECT FIT
TEMPLATE
Operating
1.
Press AUTO button on the remote control.
Pressing this button performs the following.
Using the automatic adjustment feature
For a computer signal
The vertical position, the horizontal position and the horizontal
phase will be automatically adjusted.
Make sure that the application window is set to its maximum size
prior to attempting to use this feature. A dark picture may still be
incorrectly adjusted. Use a bright picture when adjusting.
For a video signal
The video format best suited for the respective input signal will be selected
automatically. This function is available only when the AUTO is selected for
the VIDEO FORMAT item in the INPUT menu (
44).
The vertical position and
horizontal position will be automatically set to the default.
The automatic adjustment operation requires approx. 10 seconds. Also please
note that it may not function correctly with some input.
When this function is performed for a video signal, a certain extra such as a line
may appear outside a picture.
When this function is performed for a computer signal, a black frame may be
displayed on the edge of the screen, depending on the PC model.
The items adjusted by this function may vary when the FINE or DISABLE is selected
for the AUTO ADJUST item of the SERVICE item in the OPTION menu (
66).
For a component video signal
The vertical position and horizontal position will be automatically set to the default.
The horizontal phase will be automatically adjusted.
AUTO button
CALIBRATION
KEYSTONE/
ASPECT
ACCENTUALIZER
HDCR
AV MUTE
POSITION
ESC MENU
RESET
IWB
AUTO
PAGE
DOWN
ON
OFF
FREEZE
UP
1
2
ENTER
FOCUS
-
+
D-ZOOM
-
+
VOLUME
MAGNIFY
MYBUTTON
INPUT
PERFECT FIT
TEMPLATE
Press the FOCUS + or FOCUS - button on the remote
control, or FOCUS + or FOCUS - button on the projector (5)
while no menu is on screen, to display the FOCUS box on
screen. Use the FOCUS + and FOCUS - buttons to adjust
the screen focus. After the focus adjustment, wait for a while
until the FOCUS box is disappeared, if you want to display
any other menu on screen by pushing the MENU button on
the projector.
● The ◄/►/▲/▼ buttons on the projector work only as the
cursor buttons while the template is displayed (58).
FOCUS + button
FOCUS - button

Other manuals for Hitachi CP-AX3505

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the Hitachi CP-AX3505 and is the answer not in the manual?

Hitachi CP-AX3505 Specifications

General IconGeneral
PlacementCeiling
Product typeUltra short throw projector
Product colorWhite
Number of colors16.78 million colors
Projection technology-
Contrast ratio (typical)10000:1
Screen size compatibility60 - 100 \
Projector native resolutionXGA (1024x768)
Projector brightness (economic mode)2214 ANSI lumens
FocusAuto
Digital zoom1.35 x
Focal length range- mm
Lamp power250 W
Light source typeLamp
Service life of light source4000 h
Service life of light source (economic mode)5000 h
Full HDNo
Supported video modes480i, 480p, 576i, 720p, 1080i, 1080p
Analog signal format systemNTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM
PC in (D-Sub)Yes
Serial interface typeRS-232C
USB 2.0 ports quantityUSB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Noise level36 dB
CertificationUL/CUL, FCC PART15 CLASS B, AS/NZS CISPR22 CLASS B, CE, ROHS, GOST-R
Noise level (economic mode)29 dB
Operating temperature (T-T)0 - 40 °C
Power sourceAC
AC input voltage220 - 240 V
Power consumption (standby)0.35 W
Power consumption (typical)350 W
Sustainability certificatesRoHS
RMS rated power16 W
Weight and Dimensions IconWeight and Dimensions
Depth360 mm
Width377 mm
Height136 mm
Weight4300 g
