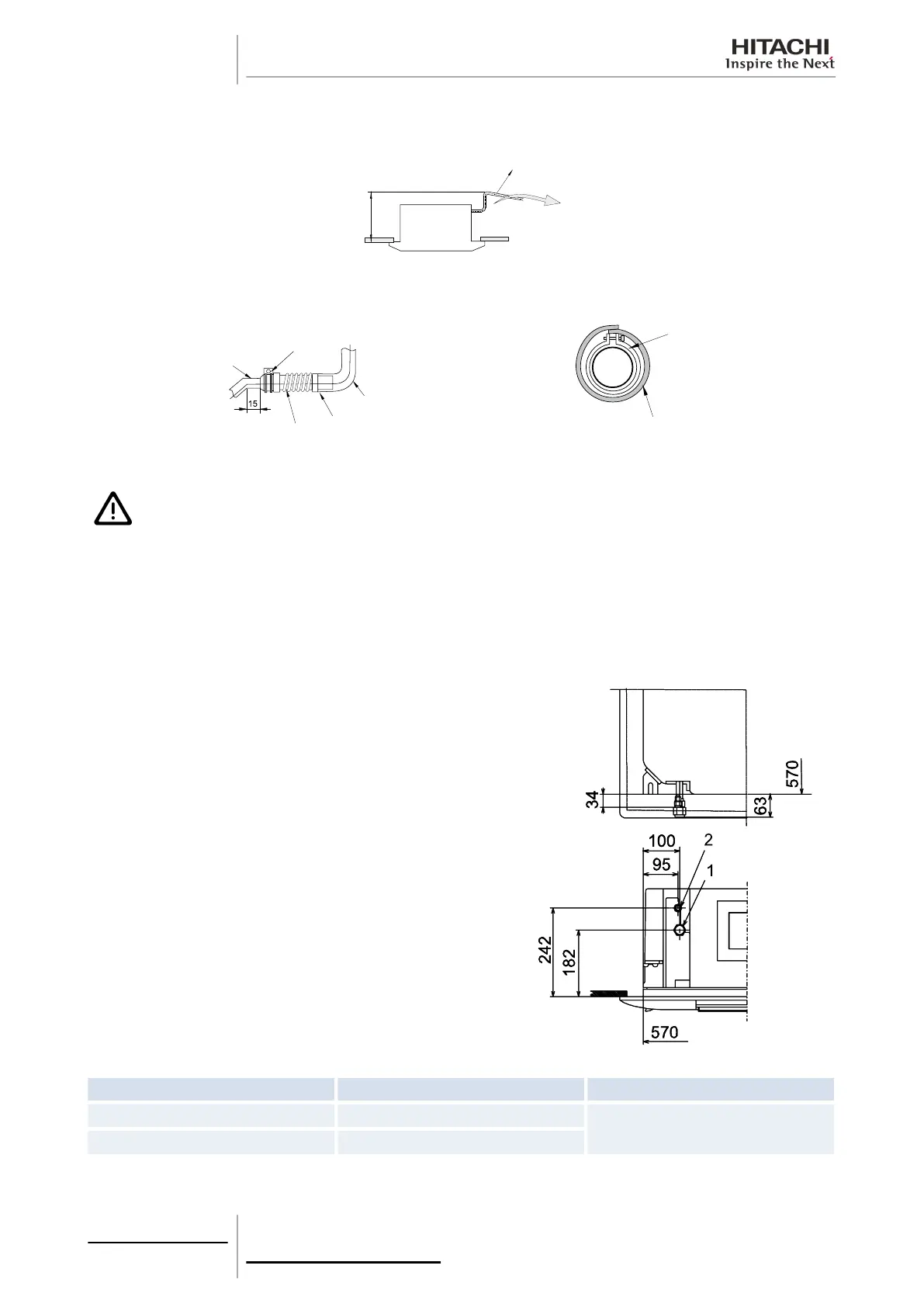

Secure the pipe with the clamp and adhesive supplied.
4% (1/25) - 1% (1/100)
≤ 850 mm
The drain hose must have a gradient of 4% (1/25) to 1% (1/100).
Drainage pipe
connection
Drainage pipe
(accessory)
Use PVC adhesive
PVC pipe Ø 32
(field-supplied)
Clamp (accessory)
Do not use adhesive
Clamp (accessory)
Insulation
(field-supplied)
C A U T I O N
• Do not apply too much force when making the drain hose connection as this could damage it.
• Do not use bent or twisted drain pipes as these will cause water leaks.
Then insulate the drain hose appropriately.
3.5.2 RCIM-4-way cassette (compact) (1.0-2.0)FSN2
¿ Gas refrigerant pipe installation
The correct position for the gas refrigerant pipe connection is
shown below. The pipe connection must be accessible from all
directions (above, left or right).
Models
(1) Gas pipe mm (inches) (2) Liquid pipe mm (inches)
RCIM-(1.0/1.5)FSN2E Ø12.70 (1/2)
Ø6.35 (1/4)
RCIM-2.0FSN2E Ø15.88 (5/8)
3 Piping work and
refrigerant charge
90
SMGB0063 rev. 1 - 10/2010
