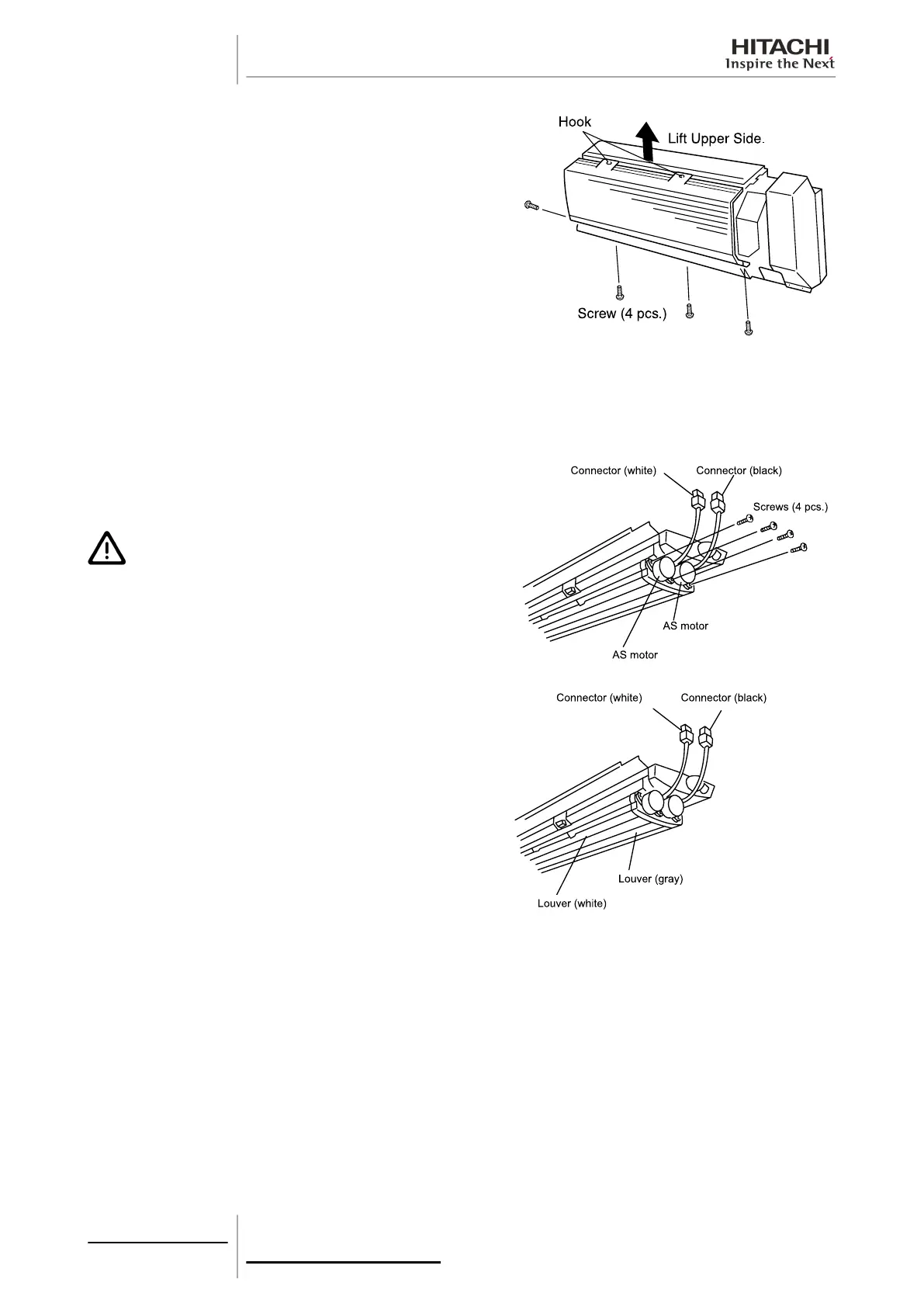

Remove the four screws from the suction air grille.
Lift the suction grille slightly.
Remove the suction grille.
10.8.5 Removal of the automatic louver motor
Remove the side panel in line with the instructions given in chapter Removal of the front panel, see on page 323.
Remove the electrical box panel as indicated in chapter Remove the electrical box panel, see on page 329.
Remove the screws from the AS motor assembly.
Remove the AS motor horizontally.
C A U T I O N
• The AS motor separates from the louver shaft.
• Be particularly careful not to damage the AS motor.
Remove the louvers.
To refit the AS motor, insert the motor shaft into the D-shaped hole
in the louver and then follow the removal operations in reverse
order.
10 Servicing
328
SMGB0063 rev. 1 - 10/2010
