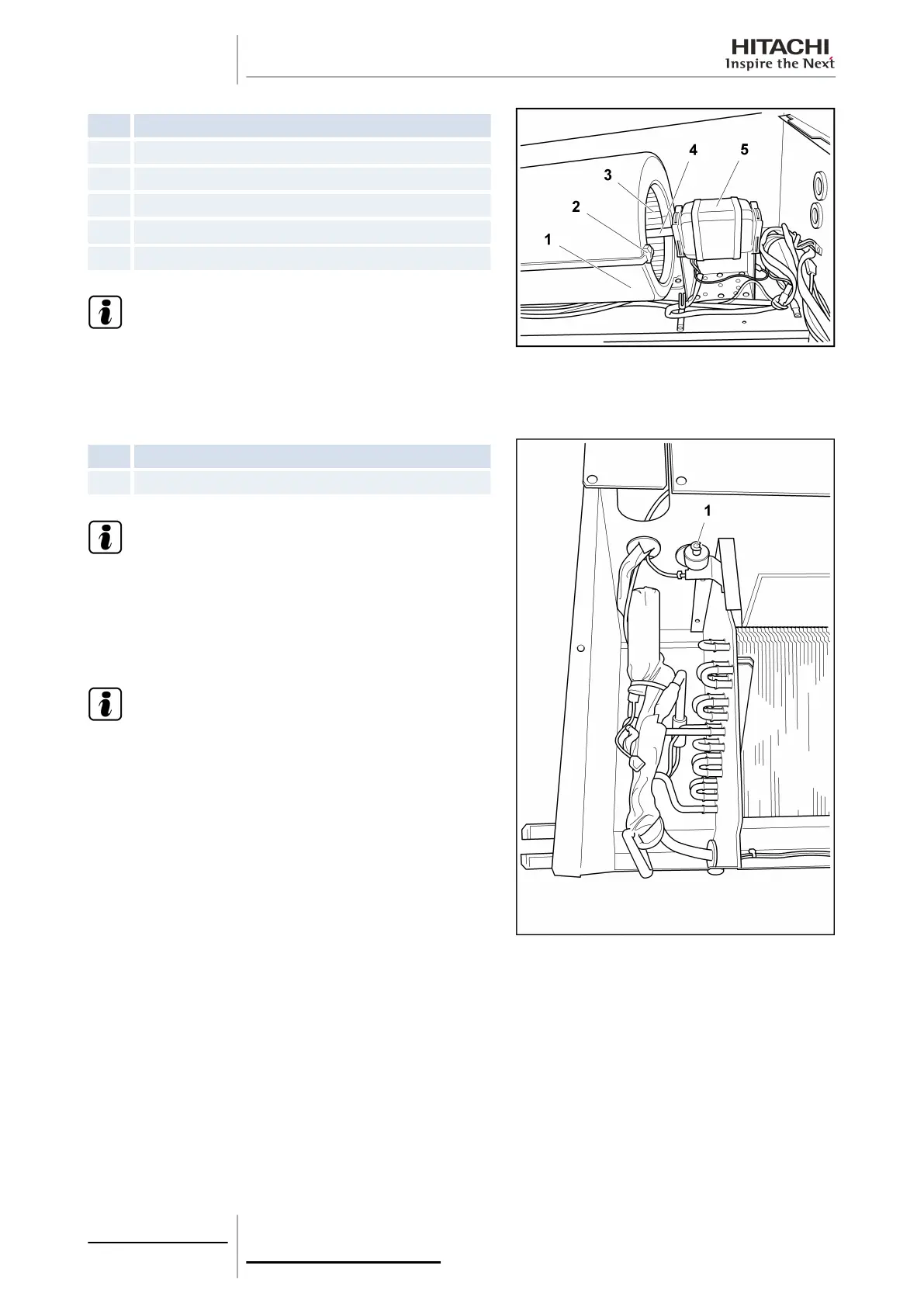

Nº Part
1 Fan casing
2 Lock
3 Fan duct
4 Shaft
5 Fan motor
N O T E
If the fan casing is to be fully removed, remove the screws
securing the other half to the fan motor fixture.
10.6.5 Removal of the float switch
Nº
Part
1 Float switch position
N O T E
To disconnect and remove the float switch, previously see the
chapter corresponding to the wiring diagrams in this Manual.
Remove the necessary covers to access the float switch.
Loosen the screws securing the float switch to the support.
N O T E
The torque value of the resin nut is 0.3 - 0.4 Nm. If the torque
value is higher, the nut will be damaged.
10 Servicing
