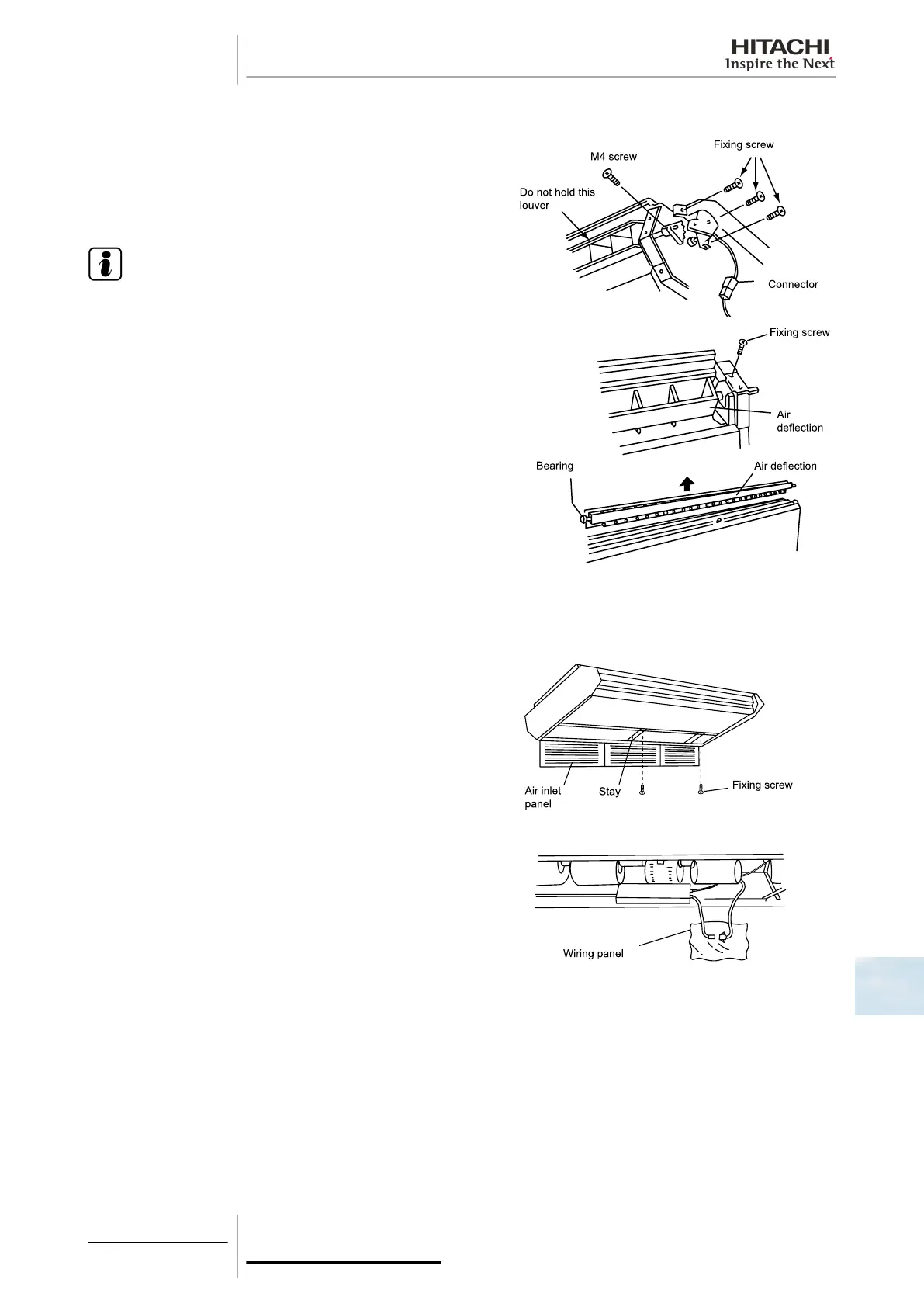

10.7.3 Removal of the air outlet grille
Remove the side panel in line with the instructions given in chapter
Removal of the side panel, see on page 316.
Remove the right shaft crank on the air louver.
Remove the four set screws from the louver and remove it.
N O T E
The louver includes the linkage brackets.
10.7.4 Removal of the fan motor
Open the air inlet grille as indicated in chapter Removal of the air filter, see on page 316.
Remove the air inlet clip.
Separate the indoor fan motor connector.
10 Servicing
317
SMGB0063 rev. 1 - 10/2010
