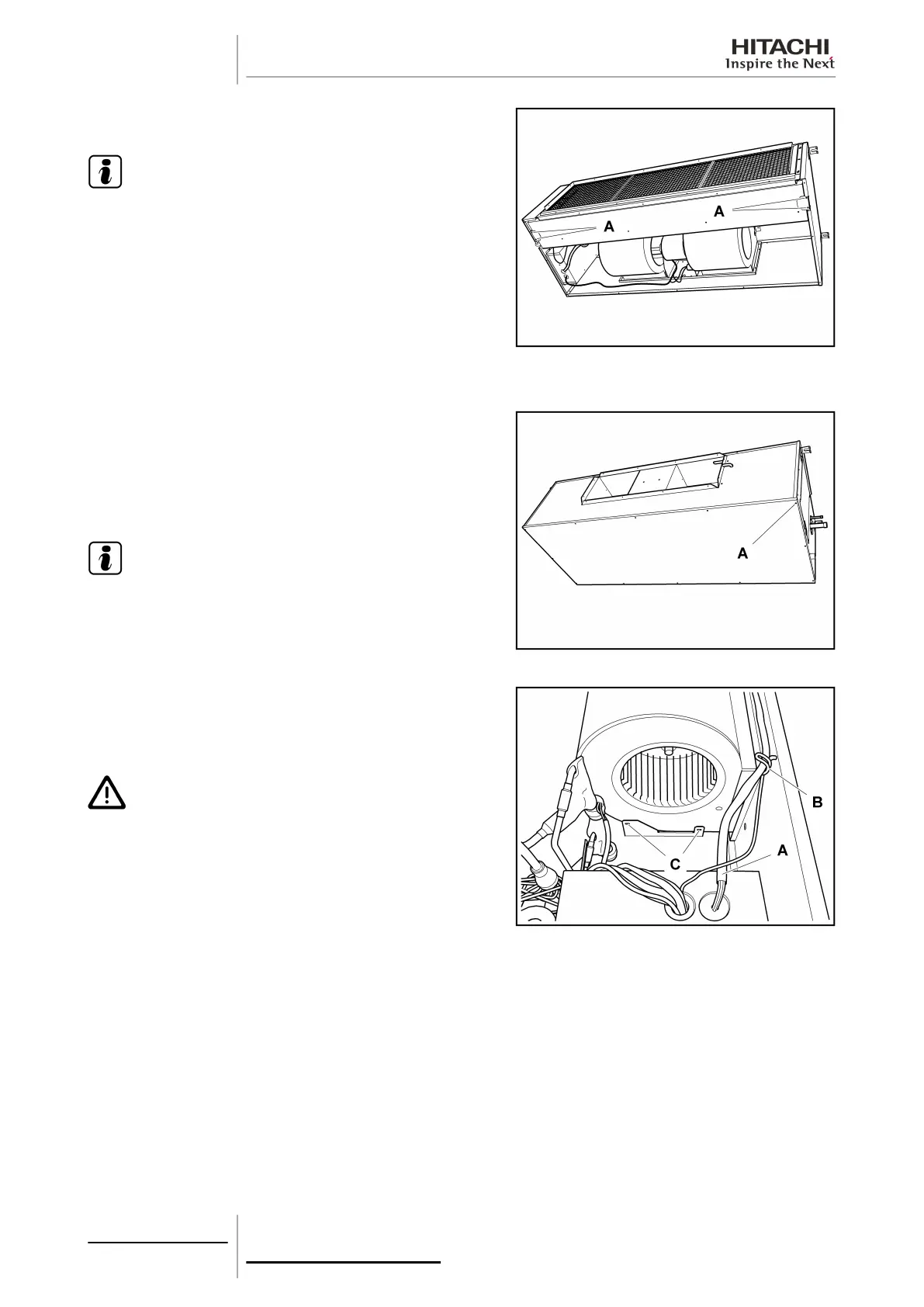

Remove the screws -A- securing the drain pan and remove it.
N O T E
When fitting, seal the drain hose gasket correctly.
10.5.6 Fan removal
Remove all screws -A- from the lower cover of the unit and separate
it.
Remove the electrical box cover Removal of the electrical box
cover, see on page 303.
Disconnect the fan motor.
N O T E
To disconnect and remove the fan motor, previously see the
chapter corresponding to the wiring diagrams in this Manual.
Remove the drain pan Removal of the drain pan, see on page
305.
Remove the wiring A- from the electrical box and release it from
the support -B-.
Remove the screws -C- on both sides of the fan.
C A U T I O N
• Make sure the fan can be removed correctly, without the
risk of injuring anyone in the surrounding area.
• The fan is heavy. Request the assistance of two operators
to hold the fan while it is being removed.
10 Servicing
306
SMGB0063 rev. 1 - 10/2010
