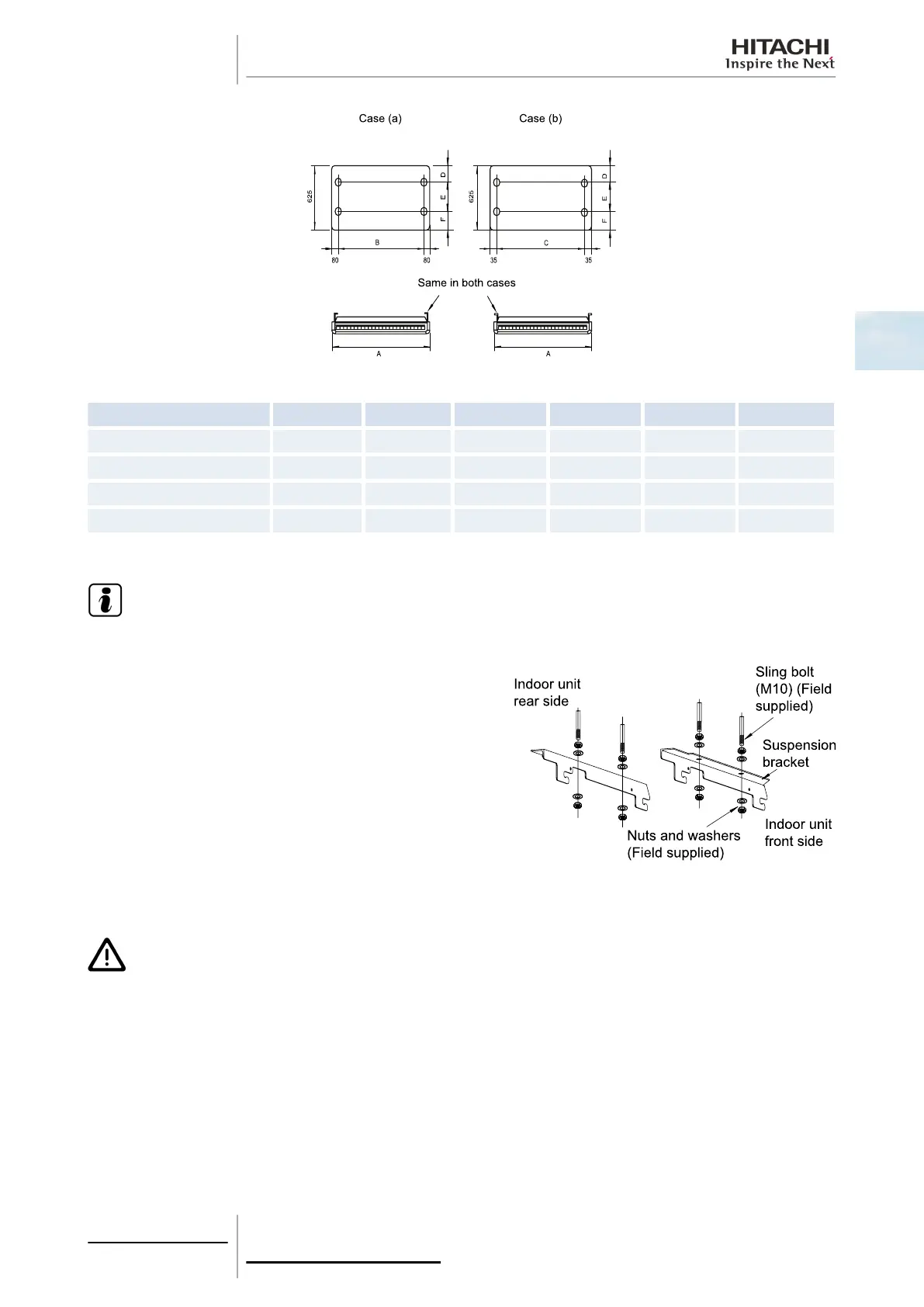

The suspension bracket can be hung in two positions:

Model

A B C D E F

RPC-2.0FSN2E 1094 920 1010 150 220 255

RPC-(2.5/3.0)FSN2E 1314 1140 1230 150 220 255

RPC-4.0FSN2E 1314 1140 1230 110 280 235

RPC-(5.0/6.0)FSN2E 1574 1400 1490 110 280 235

Select the suspension bracket system in line with installation requirements.

N O T E

Installation position (a) is recommended for a partially hidden installation.

Fit the suspension brackets on the sling bolts or the anchor bolts

and securing using the nuts and washers supplied.

Apply a thread-locking product to the bolts and nuts to prevent them

from loosening. Otherwise, abnormal noise may be caused by

mechanical vibrations and the indoor unit may become loose.

2.4.4 Indoor unit installation

C A U T I O N

To avoid damage to the resin side covers, remove them before lifting or moving the indoor unit.

Thread the nuts and fit the washers on all the bolts.

Fit the securing bolts onto the nut and washer of each bolt, starting on one side.

Check that the nuts and washers are correctly secured with the suspension bracket retainers and fit the brackets onto their

nuts and washers on the other side.

Bear in mind the position of the side for pipe connection before lifting the indoor unit.

2 Unit installation

SMGB0063 rev. 1 - 10/2010
