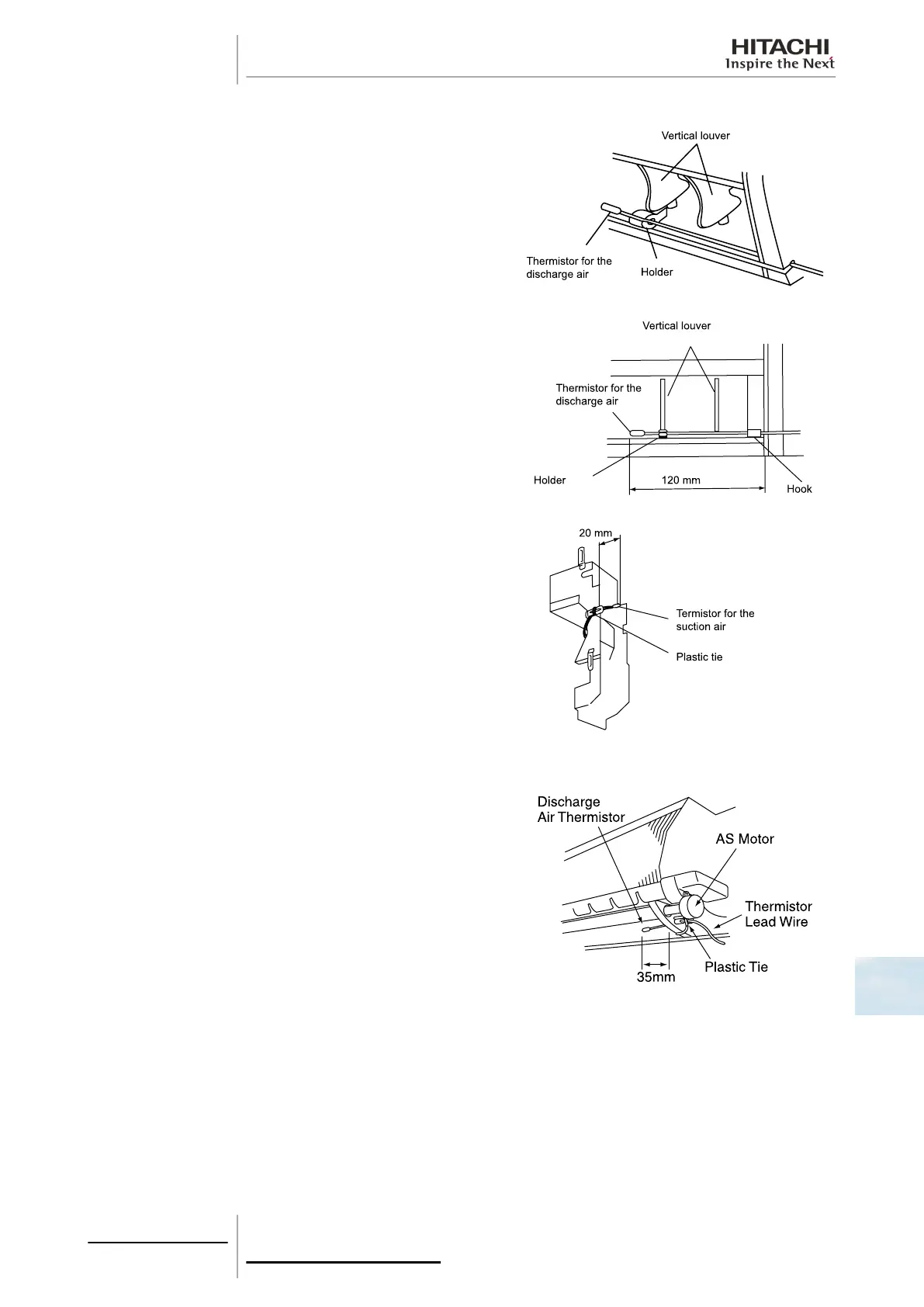

Removal of the inlet and outlet air thermistors on RPK-(1.0-2.0)FSH(H)2M
Remove the outlet air thermistor from the vertical louver support
and from the right-hand side hook on the air outlet.
Remove the tie securing the inlet air thermistor to the right-hand
side of the electrical box.
Removal of the inlet and outlet air thermistors on RPK-(2.5-4.0)FSN2M
Remove the outlet air thermistor. Remove the plastic tie securing
the discharge thermistor and remove the thermistor from the frame.
10 Servicing
331
SMGB0063 rev. 1 - 10/2010
