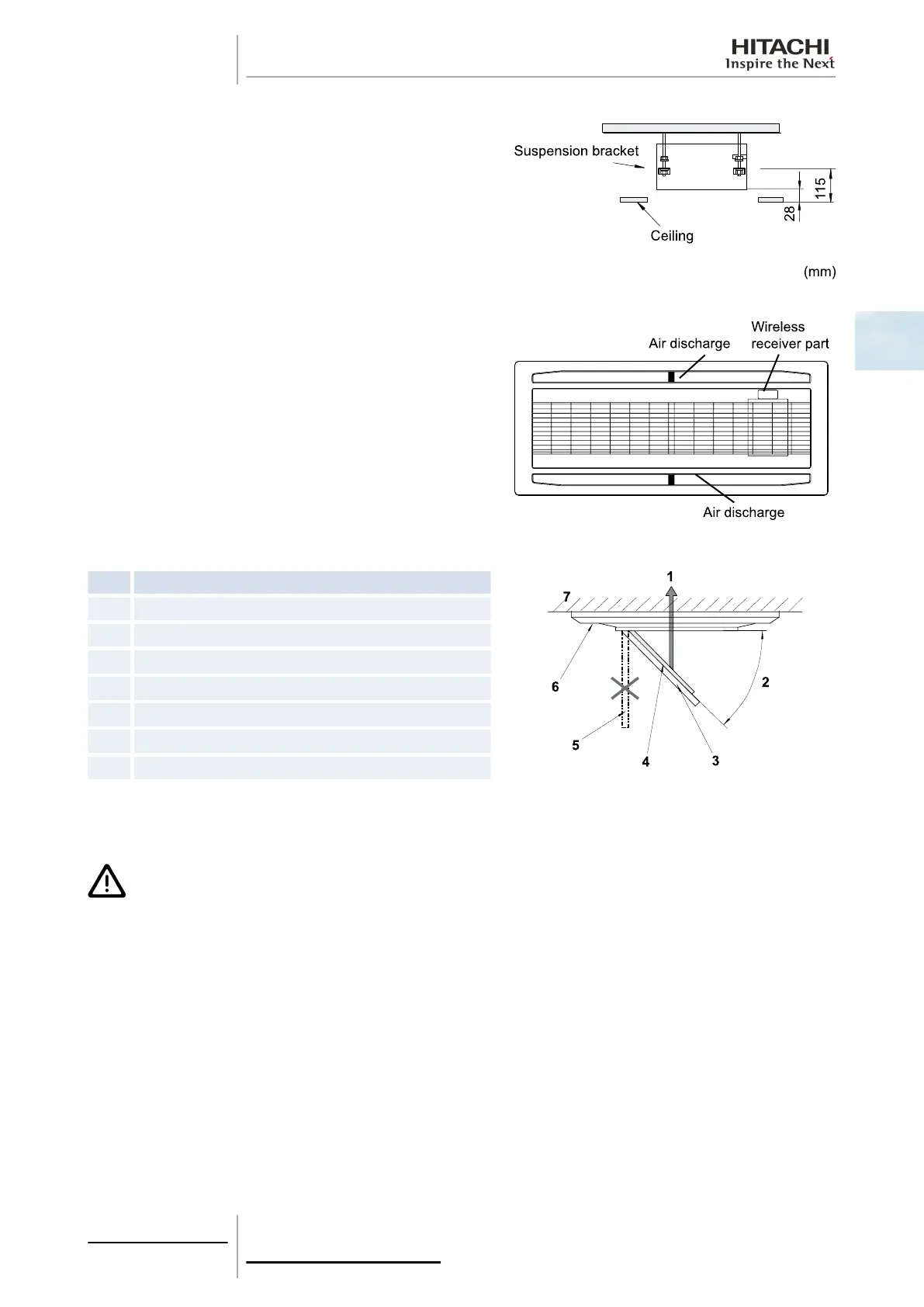

Location of the suspension brackets
Make sure the suspension brackets on the indoor unit are
approximately 115 mm in height above the false ceiling.
Remove the air inlet grille from the air panel
Nº
Part
1 Take up the grille keeping it inclined
2 Approx. 40° (correct)
3 Air inlet grille
4 Air filter
5 Wrong
6 Air panel
7 Ceiling
Open the air inlet grille until it is at an angle of approximately 40° in relation to the air panel surface.
Lift the grille while keeping it tilted.
C A U T I O N
Do not allow the grille to swing freely or the securing mechanism will break.
2 Unit installation
35
SMGB0063 rev. 1 - 10/2010
2
