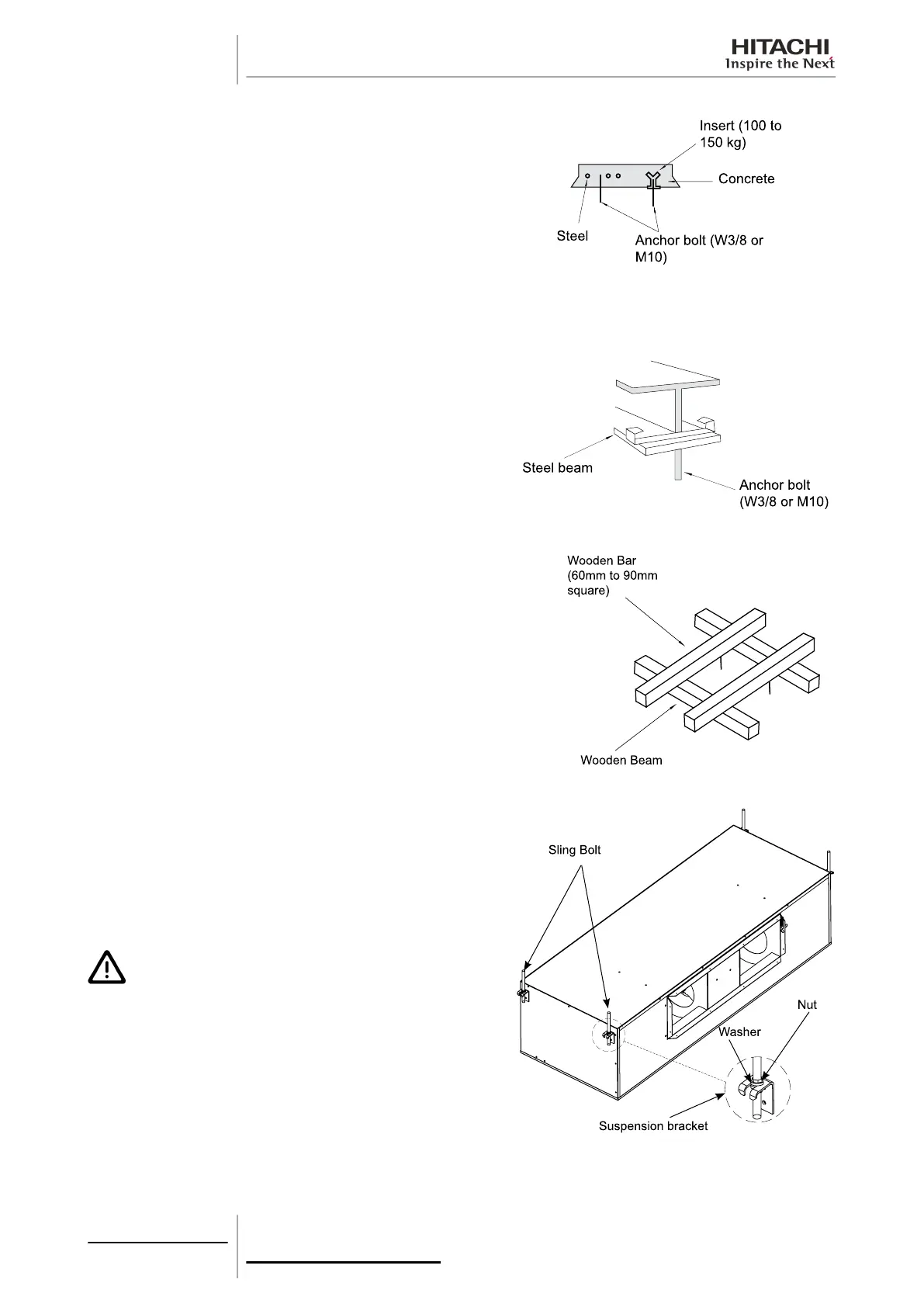

Concrete beams
Steel beams
Wooden beams
Thread the suspension bracket onto the nut and washer of each
bolt, starting on one side.
Check that the nut and washer are correctly secured with the
suspension bracket retainers.
Attach the top of the suspension bracket with another nut and
washer.
C A U T I O N
• Before lifting the unit, prepare any necessary means
(ladders, scaffolding, elevator platform, etc.) and check
that the current safety regulations in the place where the
installation is taking place are met.
• Check that the lifting work can be carried out without the
risk of injuries to you or others in the surrounding area.
• Request the assistance of another person to lift the unit.
Lift the unit carefully.
2 Unit installation
48
SMGB0063 rev. 1 - 10/2010
