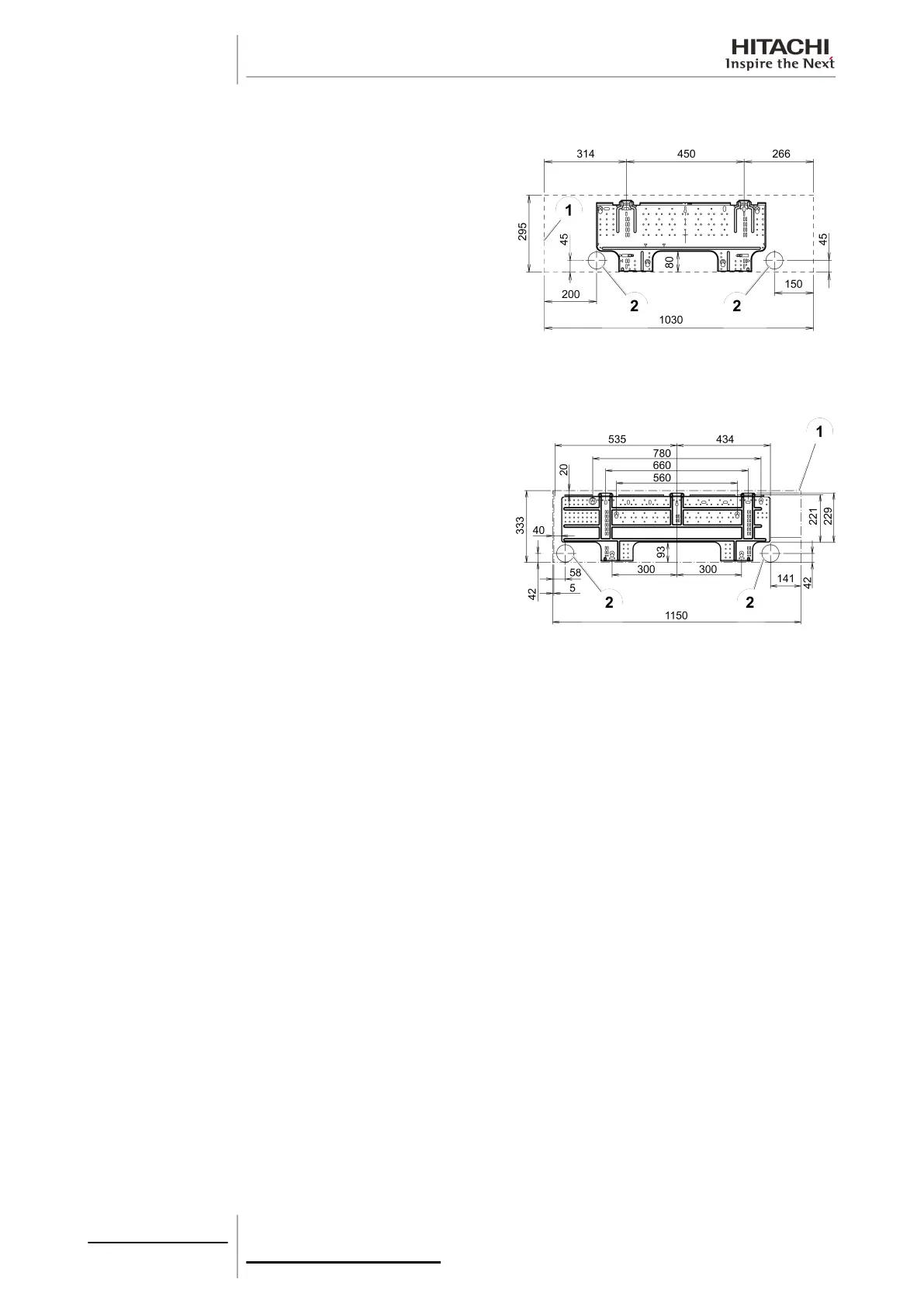

RPK - (2.0)FSN2M unit suspension bracket
1. Outer contour of the unit.
2. Hole for gas pipes and connections (depending on the pipe outlet
direction).
RPK - (2.0-4.0)FSN2M unit suspension bracket
1. Outer contour of the unit.
2. Hole for gas pipes and connections (depending on the pipe outlet
direction).
2 Unit installation
56
