Hitachi NEXT Series User Manual

112

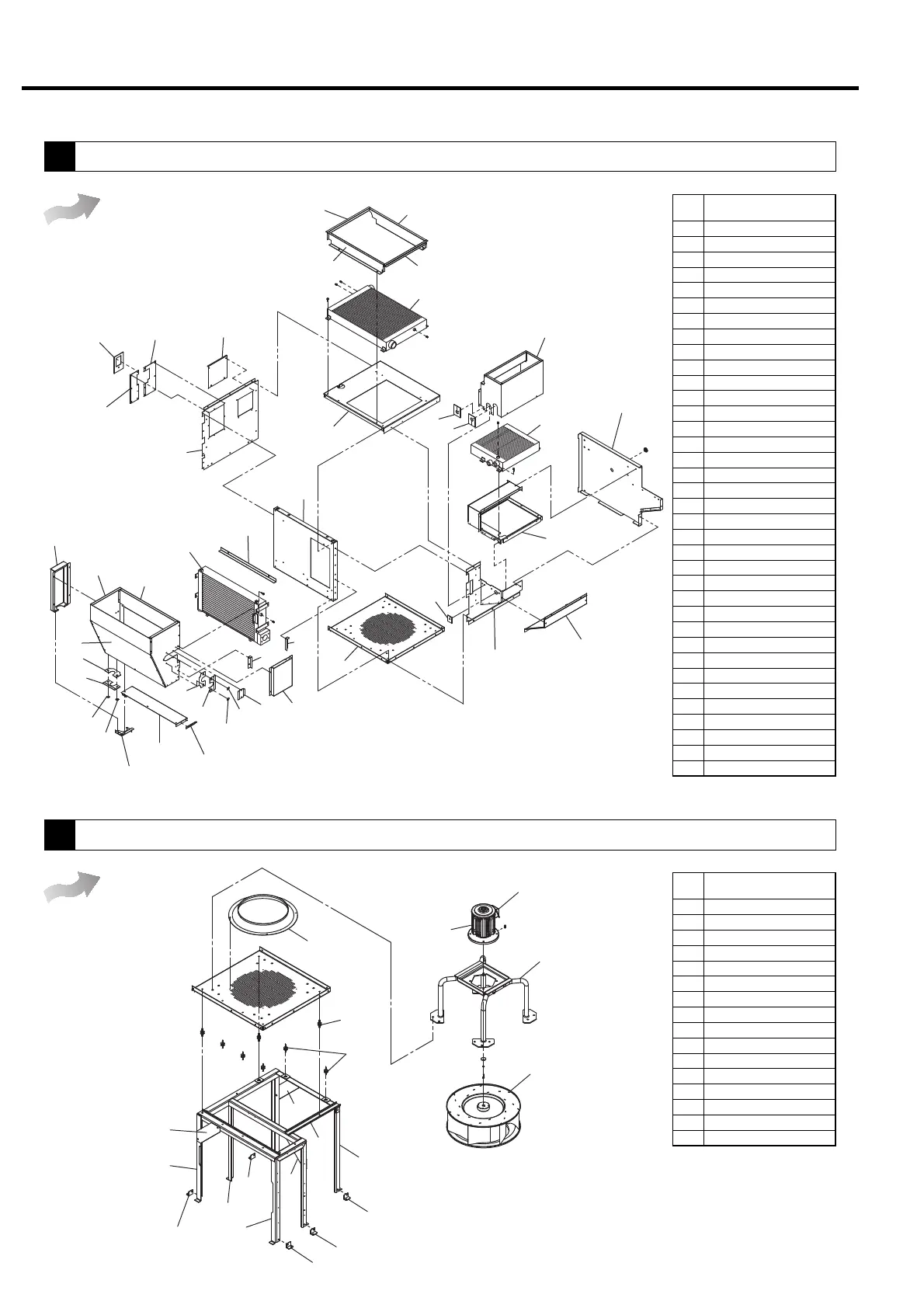

11. PARTS LIST
Air-Cooled
5
Coolers & Ventilating Fan (1)
Air-Cooled
5
Coolers & Ventilating Fan (2)
584
581
691
584
649
692
694
693
685
582
653
584
650
651
628
583
652
581
582
584
586
E51
585
H72
645
697696
696
698
646
642
E52
643
F61
648
H71
695
644
H71
647
608
623
639
Ref.
No.
Description
581 Partition (1)
582 Partition (2)
583 Partition (3)
584 Plate Washer
585 Maintenance Cover (3)
586 Maintenance Cover (4)
608 Aftercooler
623 Intercooler
628 Duct Panel (1)
639 Oil cooler
642 Duct Panel (2)
643 Duct Panel (3)
644 Duct Panel (4)
645 Duct Panel (5)
646 Duct Panel (6)
647 Duct Panel (7)
648 Duct Panel (8)
649 Duct Panel (9)
650 Duct Panel (10)
651 Duct Panel (11)
652 Duct Panel (12)
653 Cover (1), Intercooler
685 Cover (2), Intercooler
691 Cover (3), Intercooler
692
Duct Panel (1), Intercooler
693 Duct Panel (2), Intercooler
694 Duct Panel (3), Intercooler
695 Duct,Oil cooler
696
Duct Panel (1), Aftercooler
697 Duct Panel (2), Aftercooler
698 Duct Panel (3), Aftercooler
E51 Maintenance Cover (1)
E52 Maintenance Cover (2)
F61 Magnet Rubber (1)
H71 Magnet Rubber (2)
H72 Magnet Rubber (3)
Ref.
No.
Description
681 Fan Motor
686 Support, cooling fan
678 Bell Mouth
679
lmpeller
629 Fixing Bracket (1)
630 Fixing Bracket (2)
631 Support (1), base frame
632 Support (2), base frame
633 Support (3), base frame
634 Support (4), base frame
635 Support (5), base frame
636 Support (6), base frame
C84 Motor Bearing (DE)
C86 Motor Bearing (ODE)
F47 Rubber Bush
J18 Fan Shaft Key
※ Only for 75 kW.
636
632
630
634
631
630
629
629
633
635
636
F47
678
681
C84
C86
686
679
636
630
※
J18
