Hitachi NEXT Series User Manual

113

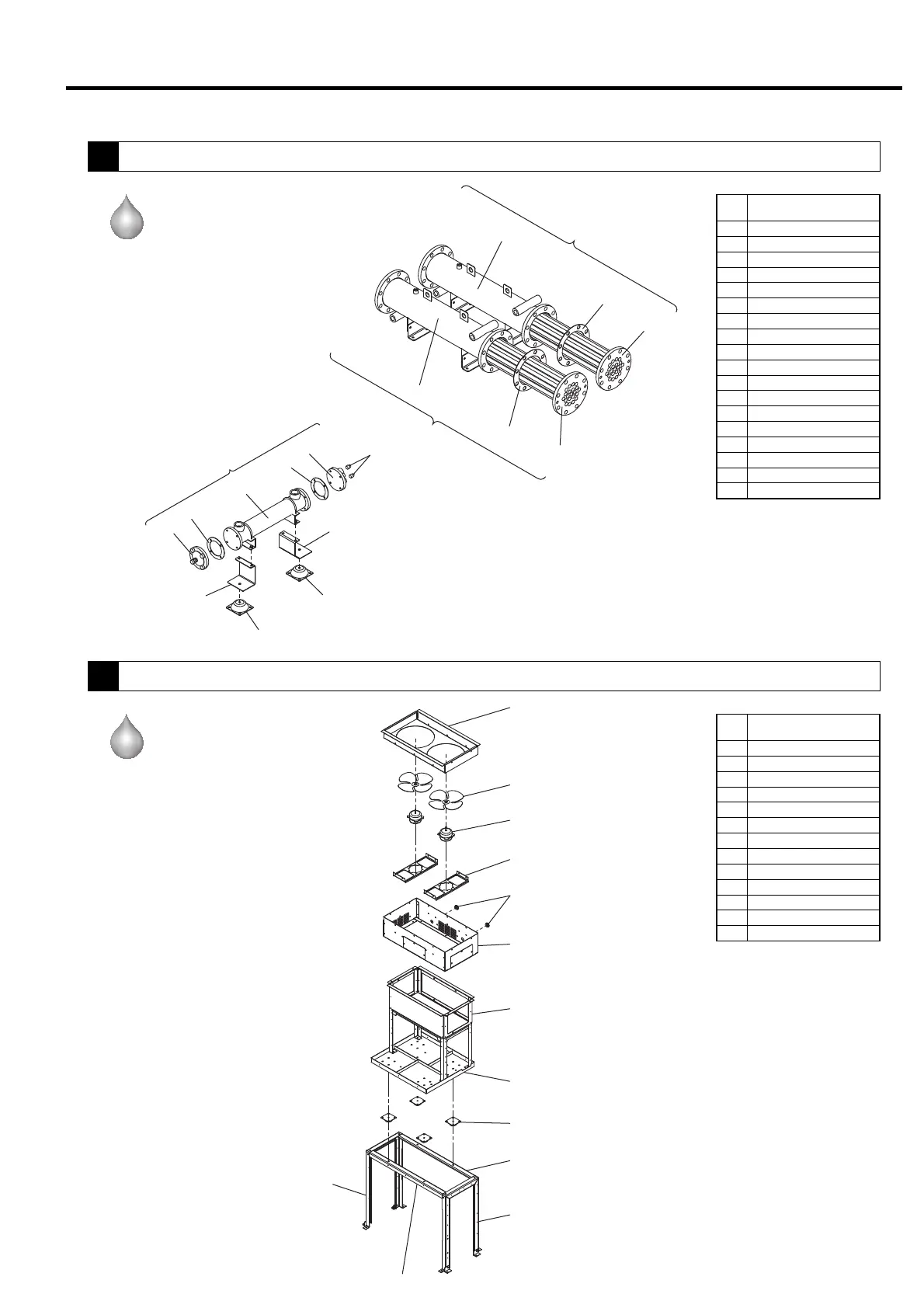

11. PARTS LIST
Ref.
No.
Description
601 Shell, aftercooler
602 Tube Nest, aftercooler
605
Gasket, aftercooler tube nest
608 Aftercooler Assembly
610 Oil cooler Assembly
611 Tube Nest, oil cooler
612
Cover, oil cooler water chamber
613 Gasket, oil cooler water chamber cover
614 Cover, oil cooler
615 Gasket, oil cooler cover
623 Intercooler Assembly
624 Shell, intercooler
625 Tube Nest, intercooler
626
Gasket, intercooler tube nest
627 Support (1), oil cooler
632 Plug
E39
Vibration Isolation Rubber
E76 Support (2), oil cooler
608
623
602
605
601
625
626
624
632
610
614
615
611
613
612
E76
627
E39
E39
Ref.
No.
Description
628 Base, coolers
629 Duct, air exhaust
630 Support (1), base frame
631 Support (2), base frame
633 Support (3), base frame
634 Support (4), base frame
671 Duct (1), fan motor
678 Support (2), fan motor
679 Fan
681 Fan Motor
686 Support (1), fan motor
940 Rubber Bush
F47
Vibration Isolation Rubber
678
679
631
633
681
686
940
671
629
628
F47
634
630
Water-Cooled
Water-Cooled
5
Coolers & Ventilating Fan (1)
5
Coolers & Ventilating Fan (2)
