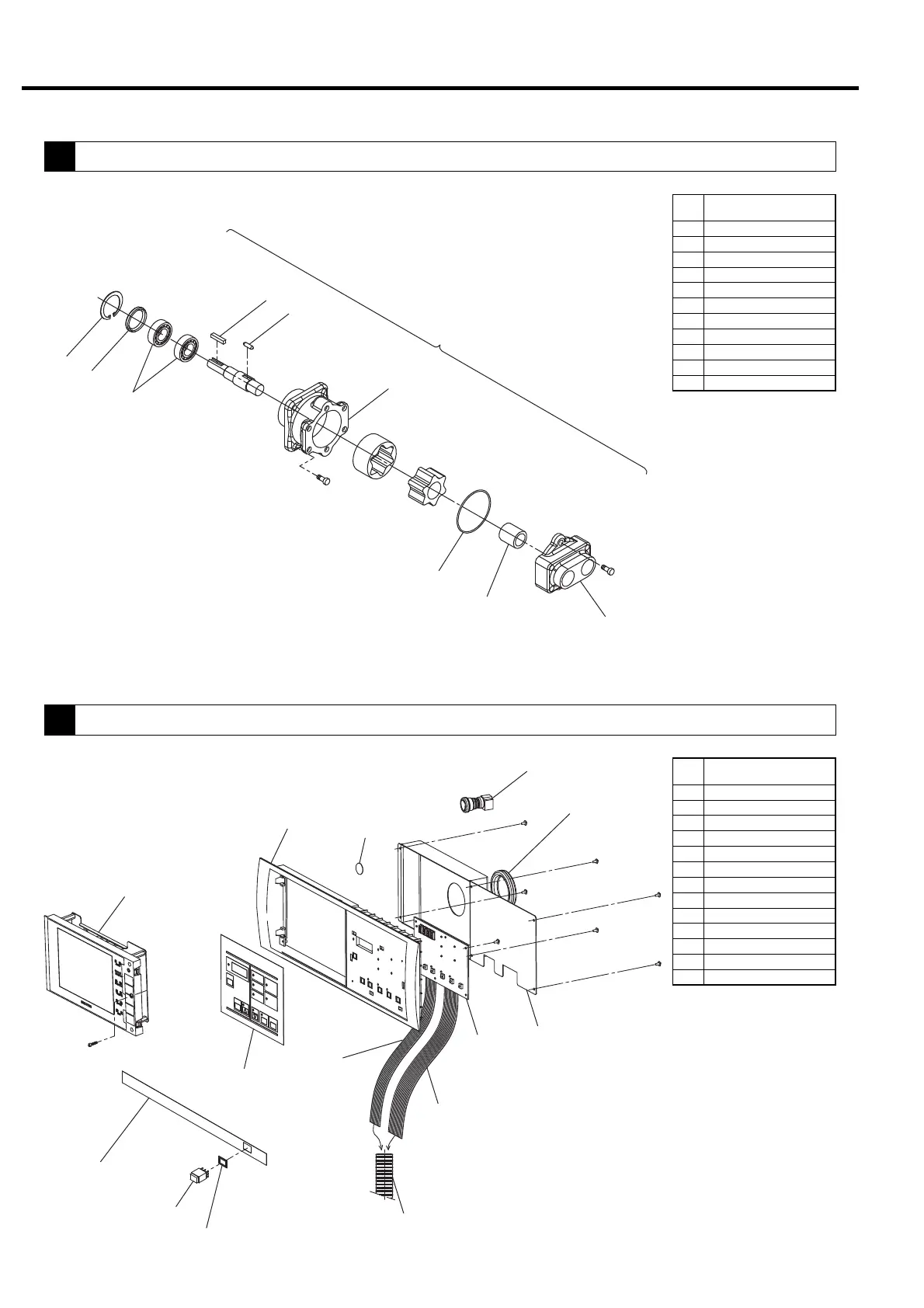

11. PARTS LIST
362
329
328
363
378
327
356
345
342
343
Ref.
No.
Description
300
Consumable Parts Kit, oil pump
327 Oil Pump Assembly
328 Bearing
329 Oil Seal
342 Oil Pump body
343
Housing, oil pump bearing
345 Key
356 Key
362 Snap Ring
363 O-Ring
378 Bush Bearing
719
748
744
746
H80
H82
H81
H79
755
H39
H43
H99
Display unit assembly
(included in #745 Starter board
PCB assembly)
G57
Ref.
No.
Description
719 Digital Panel
744 Lithium Battery
746 Control PCB
748 Seat, instrument panel
755 PCB Cover
G57 E-Stop
H39 UNLOAD STOP Button
H43 Switch Guard
H79 Rubber Bush
H80 OPE Code Pipe
H81 OPE Code (1)
H82 OPE Code (2)
H99 Unload Stop Nameplate
