Hitachi NEXT Series User Manual

116

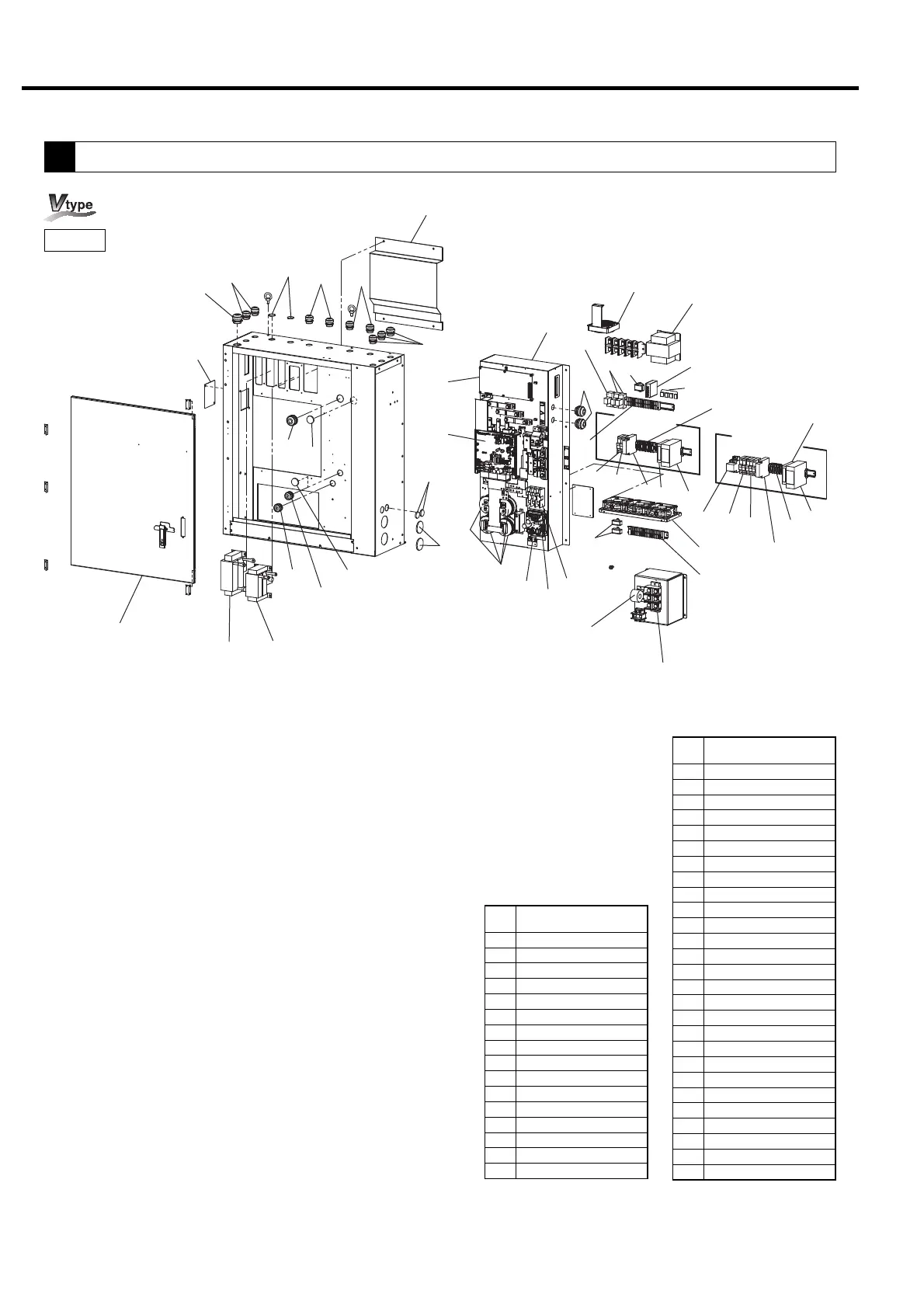

11. PARTS LIST
B44
753 E17
G04
G05
G04
G05
(Water cooled only)
E48 (Air cooled only)
F73
G15
G17
706
707
704
G18
G19
G20
D73
D12
D75
D10
G16 (Air cooled only)
G13
E09
G14
D06
705
706
707
G17
G15
D73
G20
G19
E04
J14
G21
J15
E07
E45
E47
E06
745
E10
730
(Water-coold only)
G04
G05
E18
G04
G05
E48
G04
G05
G04
G05
G06
G07
G06
G07
E46
708
709
D06
Air-coold
Water-coold
G06
G07
8
Control Panel
Ref.
No.
Description
E04 Controller Fan (1), DCBL Controller
E06 Power Printed Circuit Board
E07 Smoothing Condenser
E09 Line Noise Filter
E10 DCBL Controller
E17 DC Reactor(2)
E18 Cover, Fin(1)
E45 Rubber Bush
E46 Rubber Bush
E47 Rubber Bush
E48 Rubber Bush
F73 Cover, Fin(2)
G04 Conduit Nut
G05 Conduit
G06 Conduit Nut
G07 Conduit
G13 Relay MY2N
G14 Relay MY4N
G15 AVR 60W
G16 AVR 10W
G17 AVR 90W
G18 Circuit Breaker
G19 Circuit Breaker
G20 FUSE (4A)
G21 FUSE (10A)
J14 Inverter, Cooling Fan
J15 Communication Board
55 kW
Ref.
No.
Description
700 Control Panel
704
Electromagnetic Contactor, Fan Motor
705 Fuse (1A)
706 Fuse (1.25A)
707 Fuse (1.6A)
708 Current Transformer
709 Terminal Block (1)
730 Condenser
745 PC Board
753 DC Reactor (1)
B44 Door, Control Box
D06 Terminal Block (2)
D10 Surge Absober
D12 Cooling Fan
D73 Reversed Phase Relay
D75 Transformer
