Hitachi NEXT Series User Manual

117

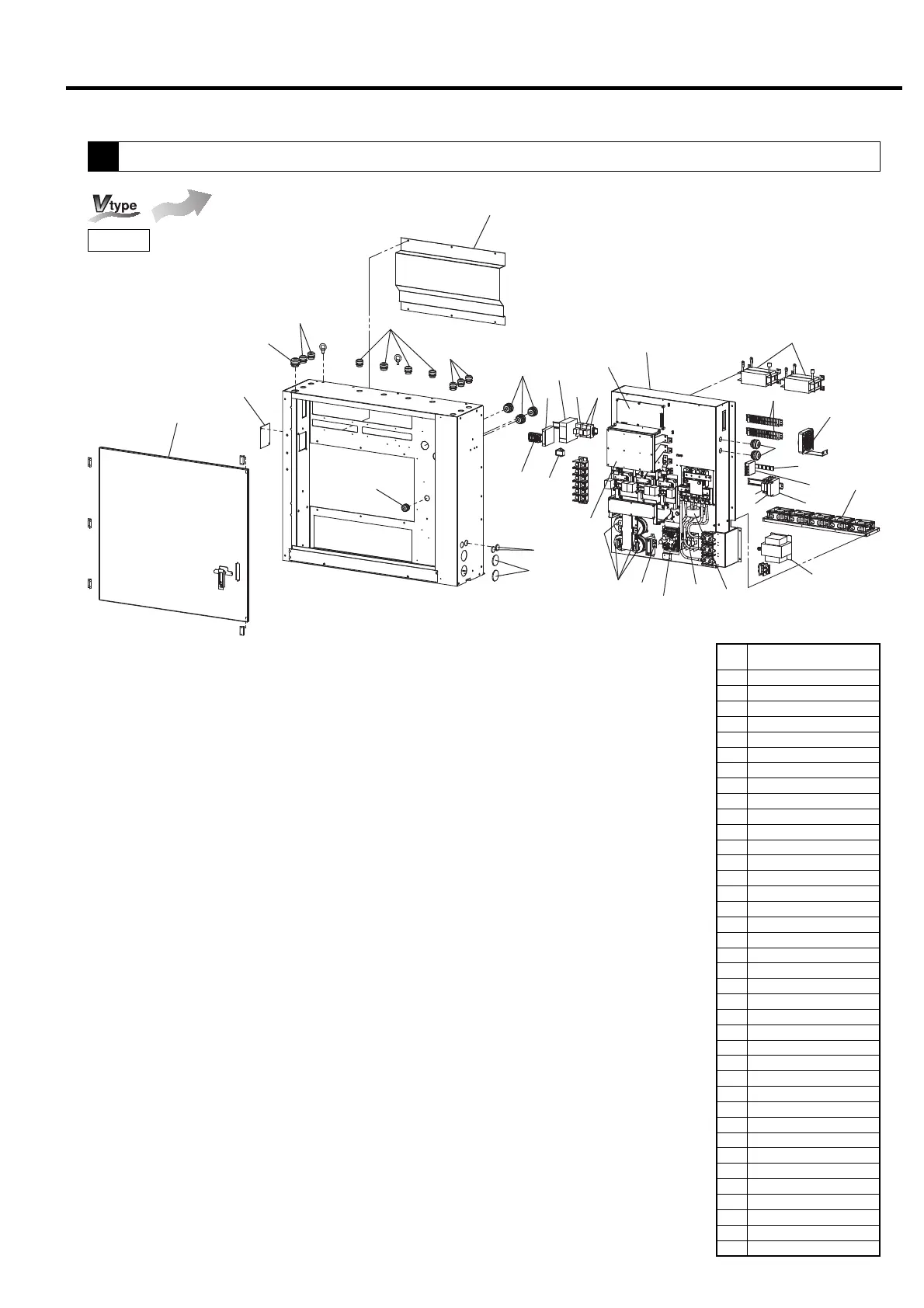

11. PARTS LIST
B44
F73
G06
G07
G04
G05
G04
G05
G04
G05
G09
G08
G04
G05
E45
E47
705
706
707
E09
G15
G17
G14
G13
745
E10
753
D06
D12
G06
G07
D10
G16
D73
D75
G19
G20
708
G21
J14
J15
E07
E06
E18
E04
8
Control Panel
75 kW

Air-Cooled
Ref.
No.
Description
700 Control Panel
705 Fuse (1A)
706 Fuse (1.25A)
707 Fuse (1.6A)
708 Current Transformer
745 PC Board
753 DC Reactor (1)
B44 Door, Control Box
D06 Terminal Block (2)
D10 Surge Absober
D12 Cooling Fan
D73 Reversed Phase Relay
D75 Transformer
E04
Controller Fan (1), DCBL Controller
E06 Power Printed Circuit Board
E07 Smoothing Condenser
E09 Line Noise Filter
E10 DCBL Controller
E18 Cover, Fin (1)
E45 Rubber Bush
E47 Rubber Bush
F73 Cover, Fin (2)
G04 Conduit Nut
G05 Conduit
G06 Conduit Nut
G07 Conduit
G08 Conduit Nut
G09 Conduit
G13 Relay MY2N
G14 Relay MY4N
G15 AVR 60W
G16 AVR 10W
G17 AVR 90W
G19 Circuit Breaker
G20 Fuse (4A)
G21 Fuse (10A)
J14 Inverter, Cooling Fan
J15 Communication Board
