Hitachi NEXT Series User Manual

118

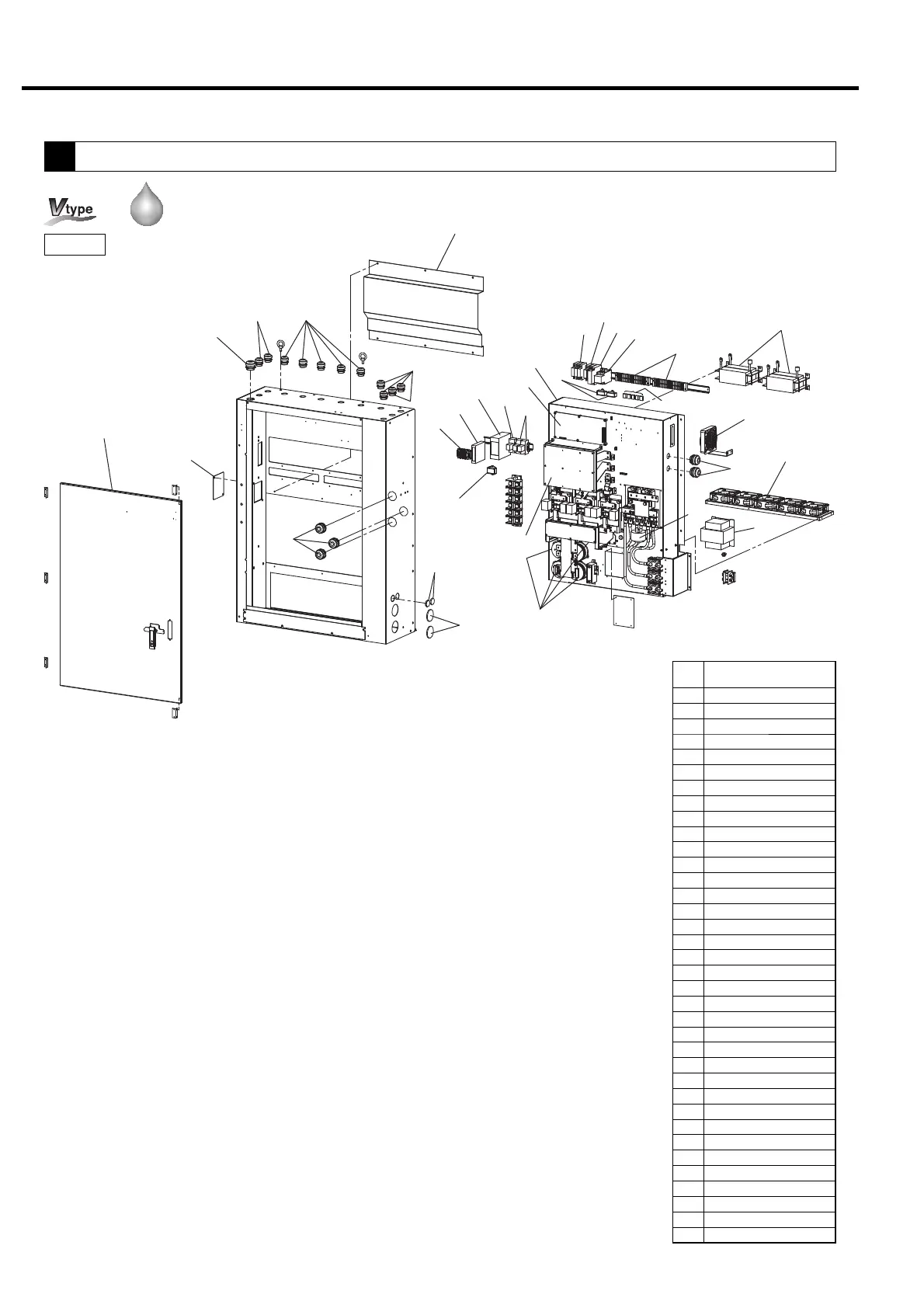

11. PARTS LIST
8
Control Panel
D06
704
D73
G20
G18
G19
730
D10
753
D12
G06
G07
708
D75
E04
E07
E06
E10
745
G13
G14
G17
G15
707
706
E09
E18
G04
G05
G04
G05
G06
G07
F73
B44
E47
E45
G04
G05
G08
G09
75 kW

Water-Cooled
Ref.
No.
Description
700 Control Panel
704
Electromagnetic Contactor, Fan Motor
706 Fuse (1.25A)
707 Fuse (1.6A)
708 Current Transformer
730 Condenser
745 PC Board
753 DC Reactor (1)
B44 Door, Control Box
D06 Terminal Block (2)
D10 Surge Absober
D12 Cooling Fan
D73 Reversed Phase Relay
D75 Transformer
E04
Controller Fan (1), DCBL Controller
E06 Power Printed Circuit Board
E07 Smoothing Condenser
E09 Line Noise Filter
E10 DCBL Controller
E18 Cover, Fin (1)
E45 Rubber Bush
E47 Rubber Bush
F73 Cover, Fin (2)
G04 Conduit Nut
G05 Conduit
G06 Conduit Nut
G07 Conduit
G08 Conduit Nut
G09 Conduit
G13 Relay MY2N
G14 Relay MY4N
G15 AVR 60W
G17 AVR 90W
G18 Circuit Breaker
G19 Circuit Breaker
G20 Fuse (4A)
