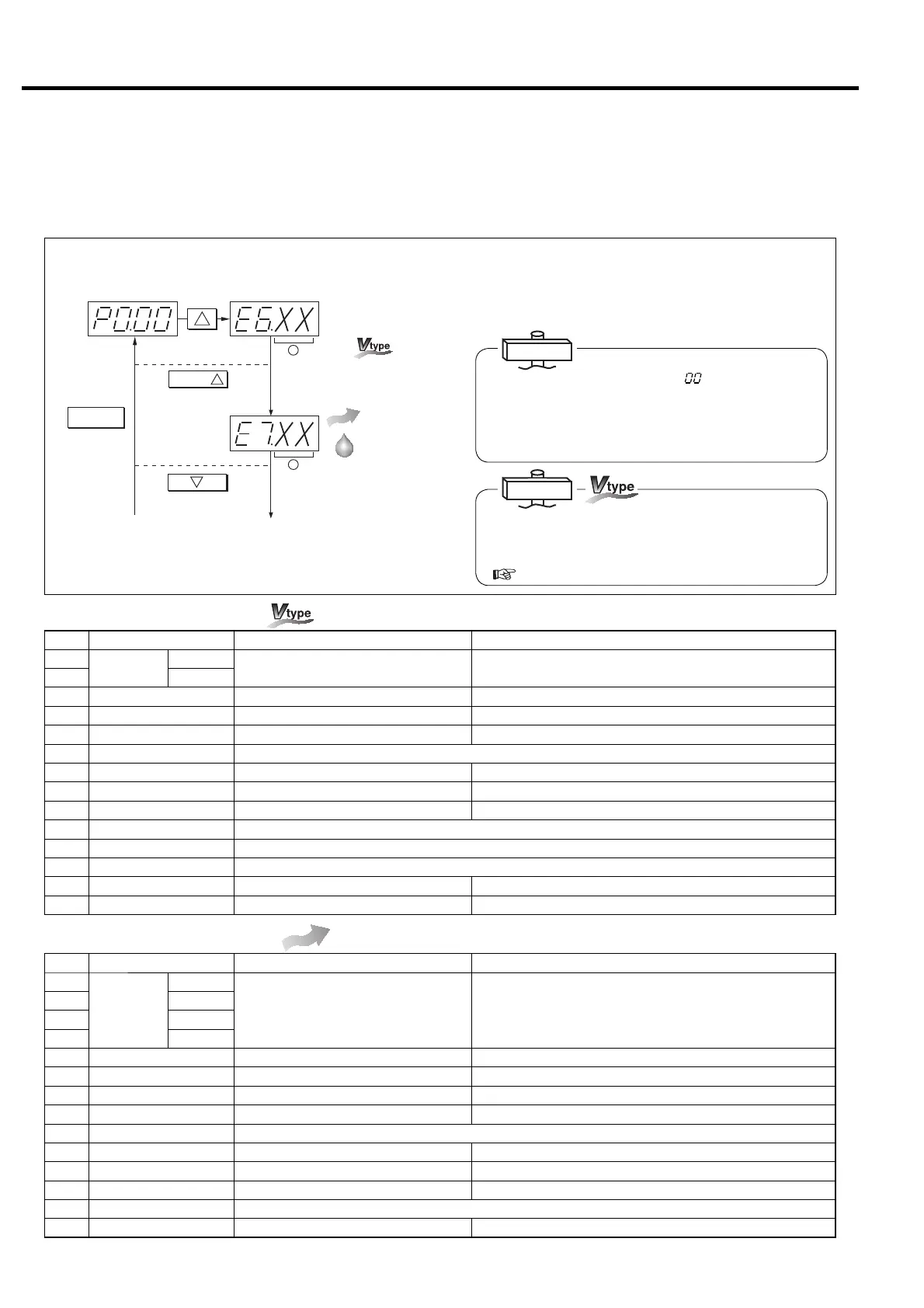

4. TROUBLESHOOTING [Protective Device]
SELECT/WIDE
1
2
RESET
1
a
b
Air-Cooled
Water-Cooled
Press 14 times.
To display of various settings
Press once to go to
the next item.
Press once to go to
the previous item.
Return to discharge
pressure display.
Not used
(display only)
DCBL controller
shutdown history
Fan inverter
shutdown history
SELECT/WIDE
Discharge pressure display
① Press the SELECT/WIDE button 14 times. "E6." and "E7."
are shutdown history of DCBL controller.
② Press the RESET button. The indication on digital monitor
returns to discharge pressure display.
■ How to Identify the Failure Cause of E0.13 (DCBL controller Error) and E0.57 (Fan
Inverter Error) and Check the History
Note : DCBL controller is equipped with Vtype.
Fan inverter is equipped with air-cooled type.
Code Fault type Detection Probable cause
E01*
Overcurrent
Software
Activation of current protection circuit
Lock of main motor
Rapid acceleration/deceleration
E02*
Hardware
E05 Overload Activation of electronic thermal Overload of main motor
E07* Overvoltage Excessive voltage of the converter Excessive voltage of power line
E09 Undervoltage Voltage below the specifi ed level Reduction of receiving voltage, IPS
E10 CT error CT error
E20 Temperature trip Controller fan error
Reduction of controller fan revolution, disconnection of controller fan wiring
E21 Temperature trip Overheat of cooling fi n
Cooling fi n, air intake hole, clogging of cooler, high ambient temperature
E22* Communication error 1 Communication error in controller Electrical noise
E23* Gate array error Gate array communication error
E24 Phase lacking Phase lacking
E30 IGBT error Occurrence of instantaneous overcurrent
E33 Communication error 2
Communication error between controller and PC board
Electrical noise
E35 Main motor overheat Excessive temperature of main motor
Cooling fi n, air intake hole, clogging of cooler, high ambient temperature
(a) Controller shutdown code
If the shutdown code “XX” is “ ,” it indicates that
there is no shutdown history. Also, when anything
other than shutdown history is displayed without
shutdown resetting, the display is return to the latest
shutdown history in 3 minutes.
IMPORTANT
For the shutdown history of controller, only the most
recent shutdown is recorded. Shutdown history is
displayed in shutdown codes.
(
See the shutdown code list in this page.)
IMPORTANT
(b) Fan inverter shutdown code
Air-Cooled
Code Fault type Detection Probable cause
E01*
Overcurrent
During constant speed
Activation of current protection circuit
Lock of fan motor
Rapid acceleration/deceleration
E02*
During deceleration
E03*
During acceleration
E04* Other
E05 Overload Activation of electronic thermal Overload of fan motor, restart immediately after stop
E07* Overvoltage Excessive voltage of the converter High receiving voltage
E08 EEPROM error Error data of EEPROM Exogenous noise, temperature increase
E09* Undervoltage Voltage below the specifi ed level Low receiving voltage
E11 CPU error Error of built-in CPU
E14 Ground fault Ground fault during power activation Between output and fan motor
E15 Overvoltage Excessive voltage at no output Receiving voltage is higher than specifi ed.
E21 Temperature trip Temperature error
Cooling fi n, air intake hole, clogging of cooler, high ambient temperature
E23 Gate array error Gate array communication error
E60 Communication error
Communication error between inverter and PC board
Disconnection of communication line, exogenous noise
* Items subject for retry.
