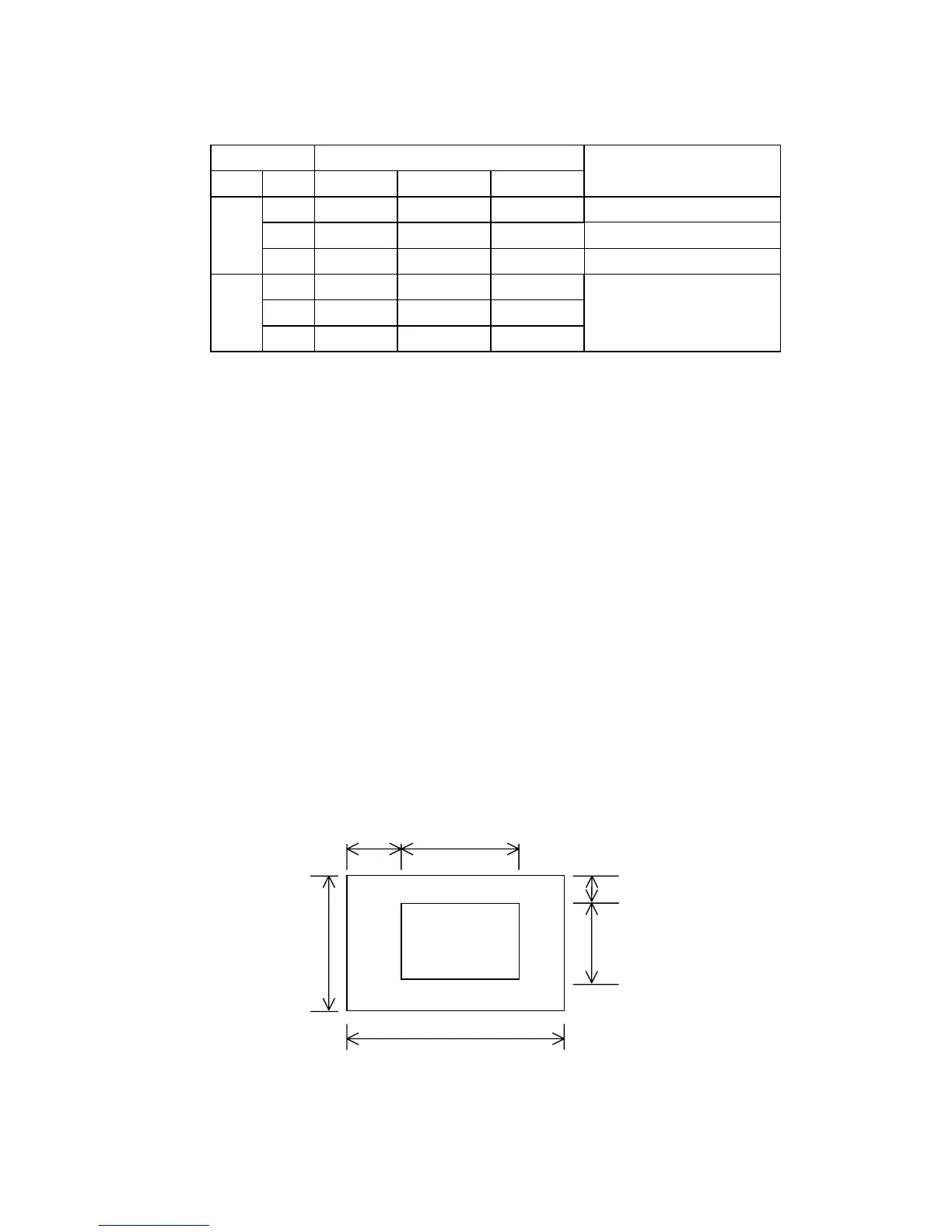

3.7 DOT DEFECT
(1) SPECIFICATIONS
ITEM Max. NUMBER
Mode Color A-Zone B-zone Total Transmittance See below *1
Green 0 0 0 More than 5%
Sparkle Red 0 0 0 More than 10%
Blue 0 0 0 More than 20%
Green * * 5 Area is more than 75 %
Black Red * * 5
Blue * * 5
* ; not defined
• A sparkle mode defect and a faint sparkle mode defect
When a pixel is partially or completely transmittable during an entirely black raster.
• A black mode defect
When a pixel is partially or completely turned off during an entirely white raster.
• Transmittance
In case of a partial defect, the transmittance is average of a whole pixel transmittance.
• Line defect
There are no two or more continuous defects. (Sparkle mode)
There are no three or more continuous defects. (Black mode)
*1 Sparkle mode
Use Dot pattern with brightness and contrast maximum.
(Make Dot pattern by 0.7Vp-p R,G, B on black (0Vp-p white) background.)
Sparkle mode is brighter than signal (0.7Vp-p white) dots with a ND filter.
Transmittance level of ND filter is stated on (1)specifications.
(2) DEFINITION OF ZONE
B zone
A zone
1H
1V
V/4
V/2
H/4 H/2
To Next Page
