PJ-TX100W/E/U ver 1.2
14
5. PACKING
5.1 PACKAGING FORM
See Figure 5.1
Packaging materials; Plastic bag, cushion and carton box
ＷｘＨｘＤ 440 x 300 x 375 mm (nominal)
Gross weight 8 kg
Pallet size 1245 x 1036 x 938 mm (W x H x D)
5.2 VIBRATION
There shall be no damage or change of performance out of this specification after the
following vibration test with factory fresh packing.
Vibration frequency 7 ~ 100 Hz 20 minutes per axis (10 minutes one way)
Acceleration Bottom 1.0G
Back 0.8G
Side 0.8G
Duration 2.5 hours (1.5h for Bottom, 0.5h for Back & Side)
5.3 DROP TEST
There shall be no damage or change of performance out of this specification after the
following drop test.
This test shall be done with factory fresh packing and the following sequence.

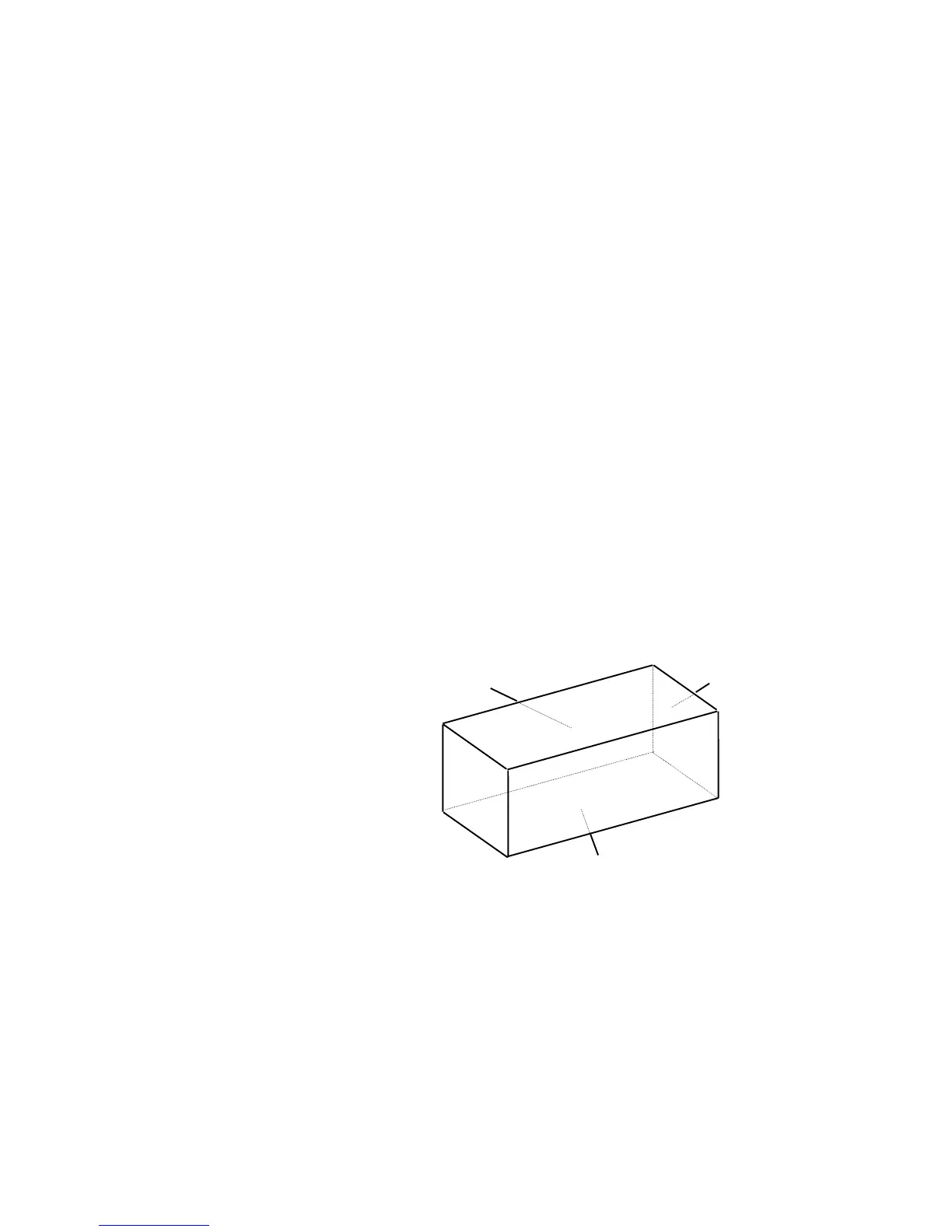

1. Surface 1 90 cm
2. Surface 2 90 cm 4 6
3. Surface 4 90 cm 3
4. Surface 5 90 cm
5. Surface 6 90 cm
6. Surface 3 90 cm 5
7. Edge 1-2 90 cm ２
8. Edge 1-4 90 cm
9. Edge 1-5 90 cm
10. Edge 1-6 90 cm 1
To Next Page
